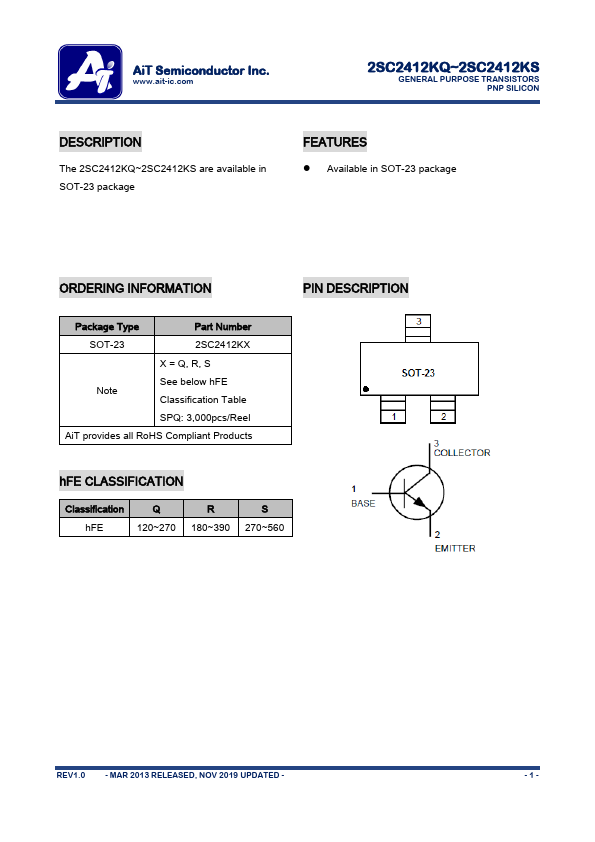

2SC2412KR
DESCRIPTION
The 2SC2412KQ~2SC2412KS are available in SOT-23 package
FEATURES
- Available in SOT-23 package
ORDERING INFORMATION
Package Type
Part Number
SOT-23
2SC2412KX
X = Q, R, S
Note
See below h FE Classification Table
SPQ: 3,000pcs/Reel
Ai T provides all Ro HS pliant Products
PIN DESCRIPTION h FE CLASSIFICATION
Classification
S h FE
120~270 180~390 270~560
REV1.0
- MAR 2013 RELEASED, NOV 2019 UPDATED
- -1-
Ai T Semiconductor Inc.
.ait-ic.
2SC2412KQ~2SC2412KS
GENERAL PURPOSE TRANSISTORS PNP SILICON

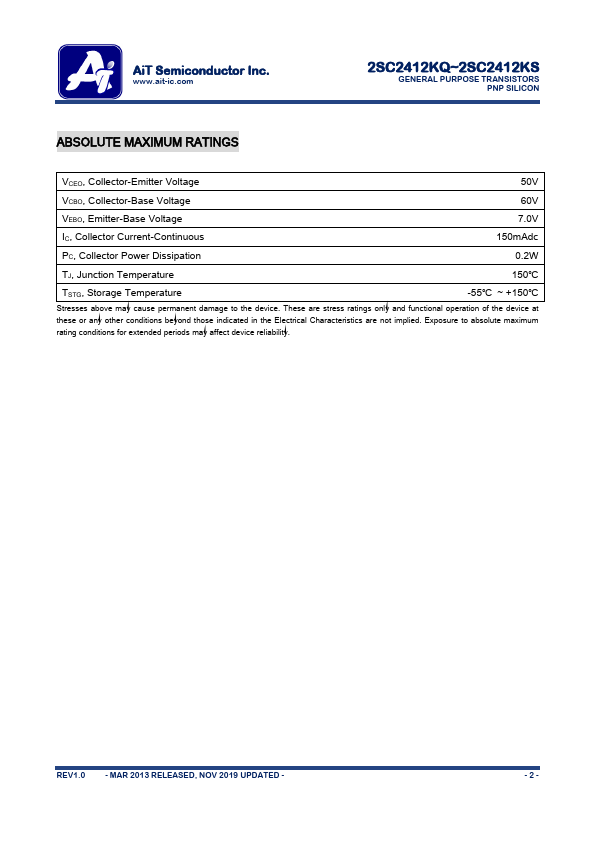

ABSOLUTE MAXIMUM RATINGS
VCEO, Collector-Emitter Voltage
50V
VCBO, Collector-Base Voltage
60V
VEBO, Emitter-Base Voltage
7.0V
IC, Collector Current-Continuous
150m Adc
PC, Collector Power Dissipation
0.2W
TJ, Junction Temperature
150℃...
