AiT Semiconductor Inc. www.ait-ic.com 2SD1007 GENERAL PURPOSE TRANSISTORS NPN TRANSISTORS DESCRIPTION The 2SD1007 is available in SOT-89 package FEATURES High collector...
View more extracted text

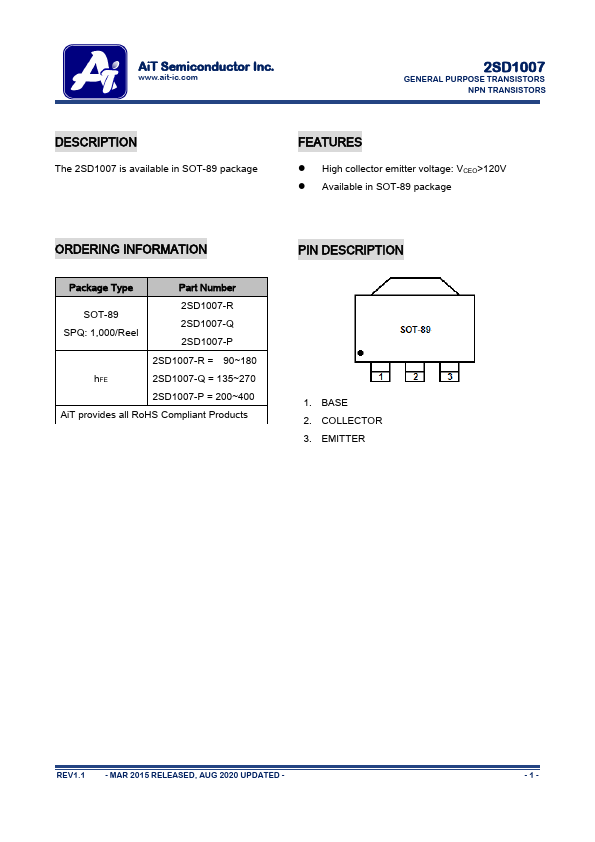

N The 2SD1007 is available in SOT-89 package FEATURES High collector emitter voltage: VCEO>120V Available in SOT-89 package ORDERING INFORMATION Package Type Part Number SOT-89 SPQ: 1,000/Reel 2SD1007-R 2SD1007-Q 2SD1007-P 2SD1007-R = 90~180 hFE 2SD1007-Q = 135~270 2SD1007-P = 200~400 AiT provides all RoHS Compliant Products PIN DESCRIPTION 1. BASE 2. COLLECTOR 3. EMITTER REV1.1 - MAR 2015 RELEASED, AUG 2020 UPDATED - -1- AiT Semiconductor Inc. www.ait-ic.
