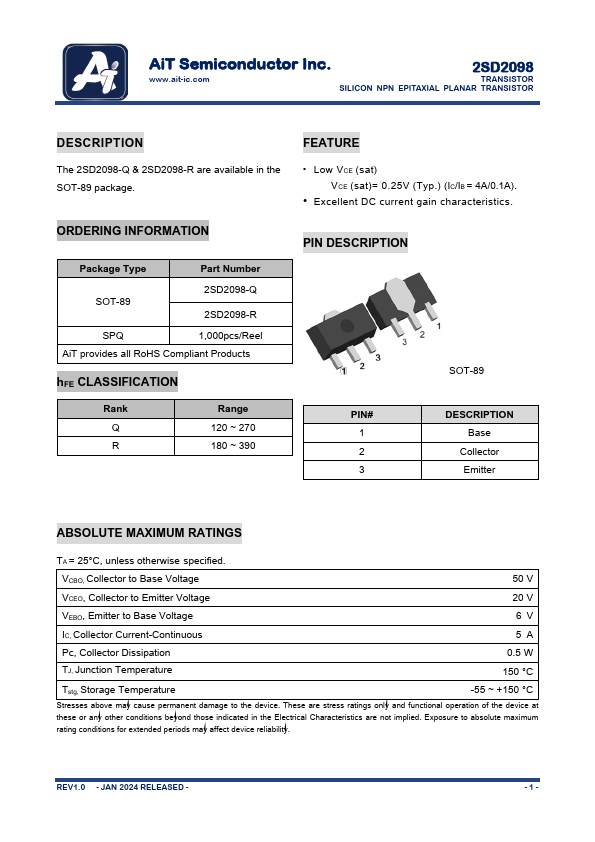

2SD2098
DESCRIPTION
The 2SD2098-Q & 2SD2098-R are available in the SOT-89 package.
FEATURE
- Low VCE (sat) VCE (sat)= 0.25V (Typ.) (IC/IB = 4A/0.1A).
- Excellent DC current gain characteristics.
ORDERING INFORMATION
Package Type
Part Number
SOT-89
2SD2098-Q 2SD2098-R
1,000pcs/Reel
Ai T provides all Ro HS pliant Products h FE CLASSIFICATION
Rank Q R
Range 120 ~ 270 180 ~ 390
PIN DESCRIPTION
PIN# 1 2 3
SOT-89
DESCRIPTION
Base
Collector Emitter
ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise specified.
VCBO, Collector to Base Voltage
50 V
VCEO, Collector to Emitter Voltage
20 V
VEBO, Emitter to Base Voltage
6V
IC, Collector Current-Continuous
5A
Pc, Collector Dissipation
0.5 W
TJ, Junction Temperature
150 °C
Tstg, Storage Temperature
-55 ~ +150 °C
Stresses above may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated in the Electrical Characteristics...
