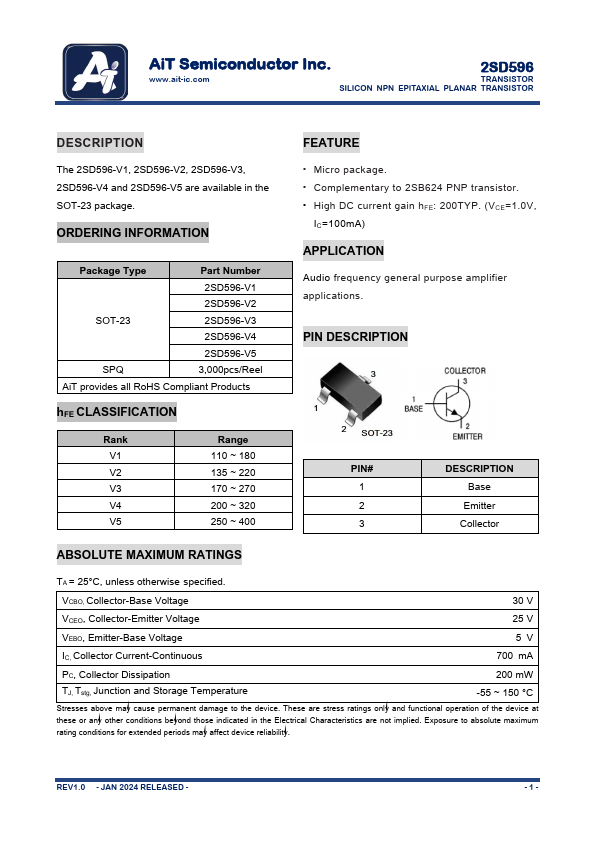

2SD596
DESCRIPTION
The 2SD596-V1, 2SD596-V2, 2SD596-V3, 2SD596-V4 and 2SD596-V5 are available in the SOT-23 package.
ORDERING INFORMATION
Package Type
Part Number
2SD596-V1
2SD596-V2
SOT-23
2SD596-V3
2SD596-V4
2SD596-V5
3,000pcs/Reel
Ai T provides all Ro HS pliant Products h FE CLASSIFICATION
Rank V1 V2 V3 V4 V5
Range 110 ~ 180 135 ~ 220 170 ~ 270 200 ~ 320 250 ~ 400
FEATURE
- Micro package.
- plementary to 2SB624 PNP transistor.
- High DC current gain h FE: 200TYP. (VCE=1.0V,
IC=100m A)
APPLICATION
Audio frequency general purpose amplifier applications.
PIN DESCRIPTION
PIN# 1 2 3
DESCRIPTION
Base Emitter
Collector
ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise specified.
VCBO, Collector-Base Voltage
30 V
VCEO, Collector-Emitter Voltage
25 V
VEBO, Emitter-Base Voltage
5V
IC, Collector Current-Continuous
700 m A
PC, Collector Dissipation TJ, Tstg, Junction and Storage Temperature

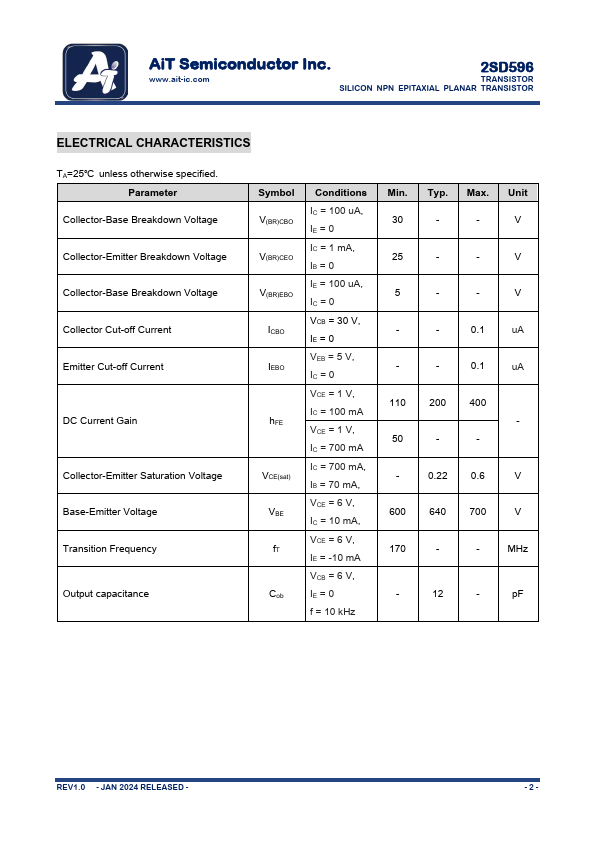

200 m W -55 ~ 150...
