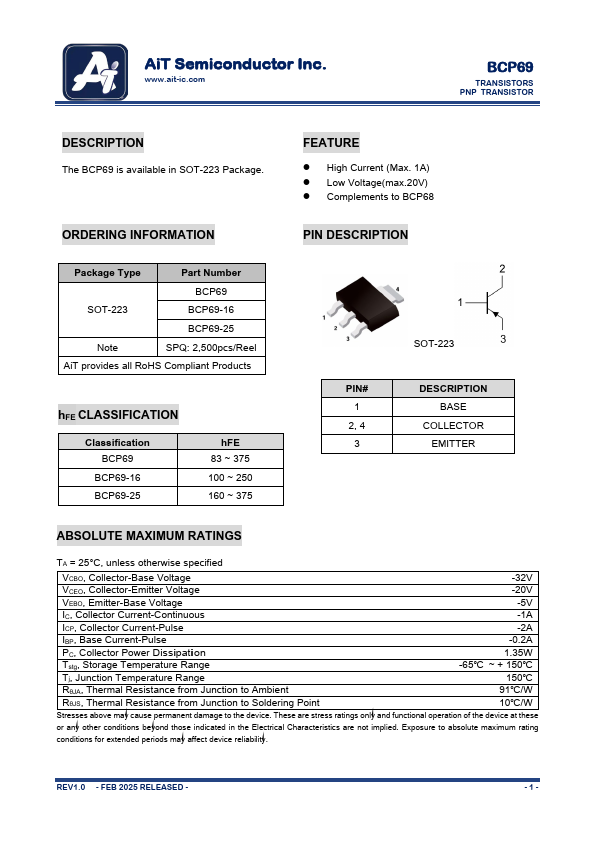

BCP69
DESCRIPTION
The BCP69 is available in SOT-223 Package.
FEATURE
- High Current (Max. 1A)
- Low Voltage(max.20V)
- plements to BCP68
ORDERING INFORMATION
Package Type
Part Number
SOT-223
BCP69-16
BCP69-25
Note
SPQ: 2,500pcs/Reel
Ai T provides all Ro HS pliant Products h FE CLASSIFICATION
Classification BCP69
BCP69-16 BCP69-25 h FE 83 ~ 375 100 ~ 250 160 ~ 375
PIN DESCRIPTION
PIN# 1
2, 4 3
SOT-223
DESCRIPTION
BASE
COLLECTOR EMITTER
ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise specified
VCBO, Collector-Base Voltage VCEO, Collector-Emitter Voltage VEBO, Emitter-Base Voltage IC, Collector Current-Continuous ICP, Collector Current-Pulse IBP, Base Current-Pulse PC, Collector Power Dissipation Tstg, Storage Temperature Range Tj, Junction Temperature Range RθJA, Thermal Resistance from Junction to Ambient RθJS, Thermal Resistance from Junction to Soldering Point
-32V -20V
-5V -1A -2A -0.2A 1.35W -65℃ ~ + 150℃ 150℃ 91℃/W 10℃/W

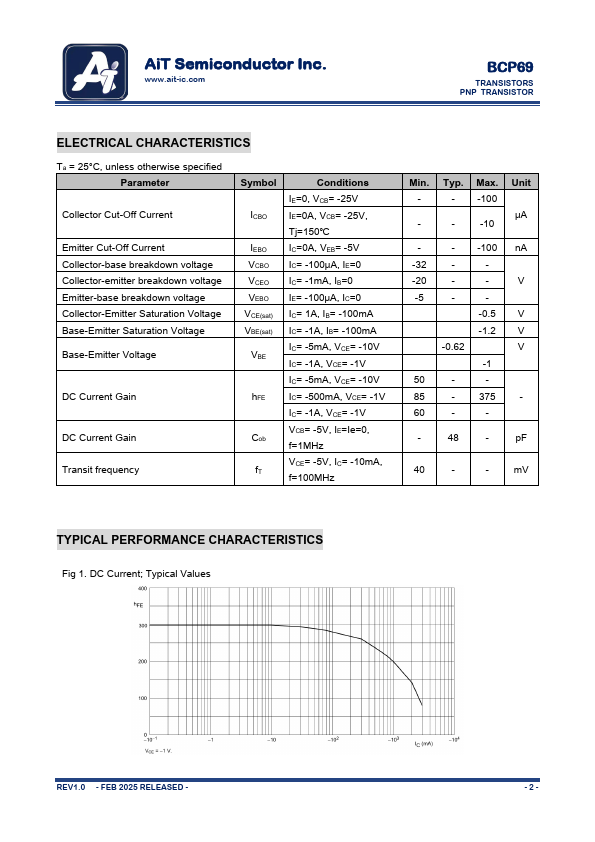

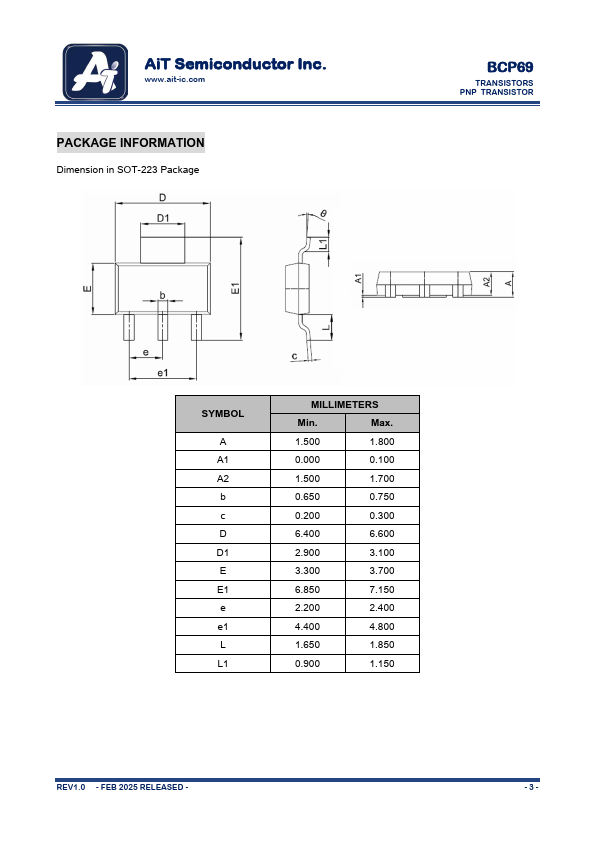

Stresses above may cause permanent...
