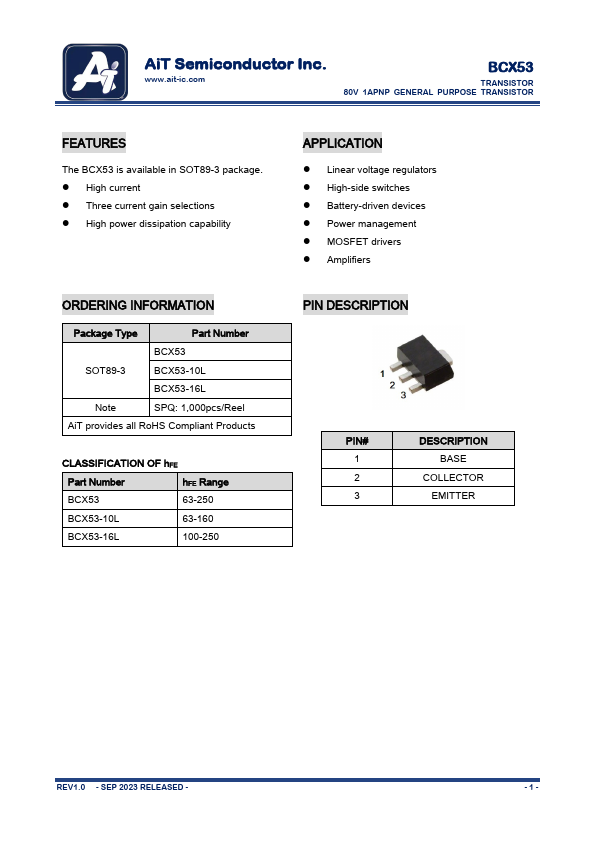

BCX53
FEATURES
The BCX53 is available in SOT89-3 package.
- High current
- Three current gain selections
- High power dissipation capability
ORDERING INFORMATION
Package Type
Part Number
SOT89-3
BCX53-10L
BCX53-16L
Note
SPQ: 1,000pcs/Reel
Ai T provides all Ro HS pliant Products
CLASSIFICATION OF h FE
Part Number h FE Range
63-250
BCX53-10L
63-160
BCX53-16L
100-250
APPLICATION
- Linear voltage regulators
- High-side switches
- Battery-driven devices
- Power management
- MOSFET drivers
- Amplifiers
PIN DESCRIPTION
PIN# 1 2 3
DESCRIPTION
BASE
COLLECTOR EMITTER
REV1.0
- SEP 2023 RELEASED
- -1-
Ai T Semiconductor Inc.
.ait-ic.
TRANSISTOR 80V 1APNP GENERAL PURPOSE TRANSISTOR

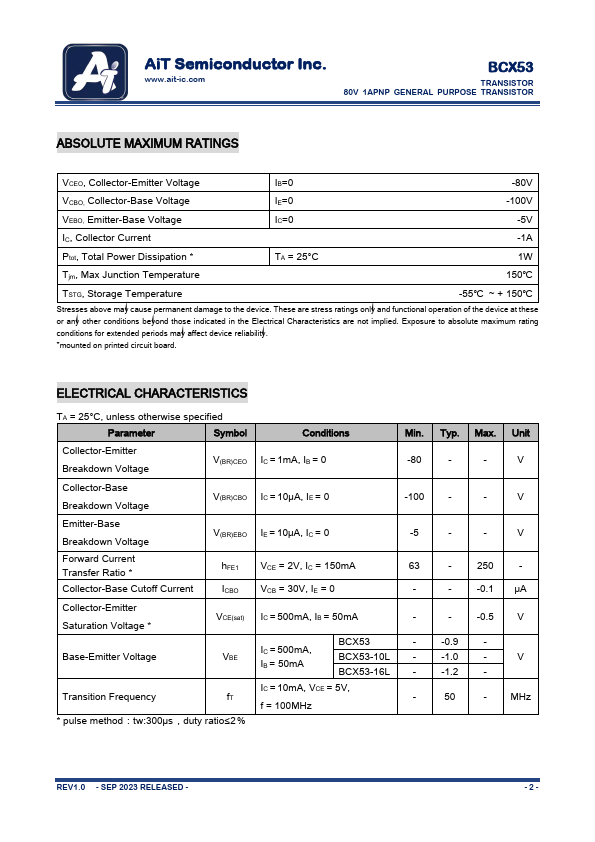

ABSOLUTE MAXIMUM...
