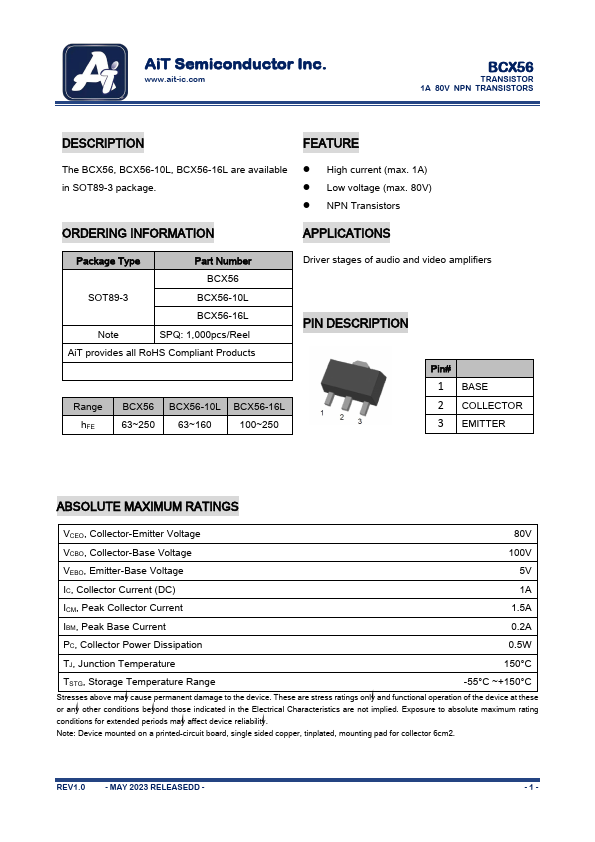

BCX56-10L
DESCRIPTION
FEATURE
The BCX56, BCX56-10L, BCX56-16L are available
- High current (max. 1A) in SOT89-3 package.
- Low voltage (max. 80V)
- NPN Transistors
ORDERING INFORMATION
APPLICATIONS
Package Type
Part Number
BCX56
SOT89-3
BCX56-16L
Note
SPQ: 1,000pcs/Reel
Ai T provides all Ro HS pliant Products
Range h FE
BCX56 BCX56-10L BCX56-16L
63~250 63~160
100~250
Driver stages of audio and video amplifiers
PIN DESCRIPTION
Pin#
1 BASE 2 COLLECTOR 3 EMITTER
ABSOLUTE MAXIMUM RATINGS
VCEO, Collector-Emitter Voltage
80V
VCBO, Collector-Base Voltage
100V
VEBO, Emitter-Base Voltage
5V
IC, Collector Current (DC)
1A
ICM, Peak Collector Current
1.5A
IBM, Peak Base Current
0.2A
PC, Collector Power Dissipation
0.5W
TJ, Junction...
