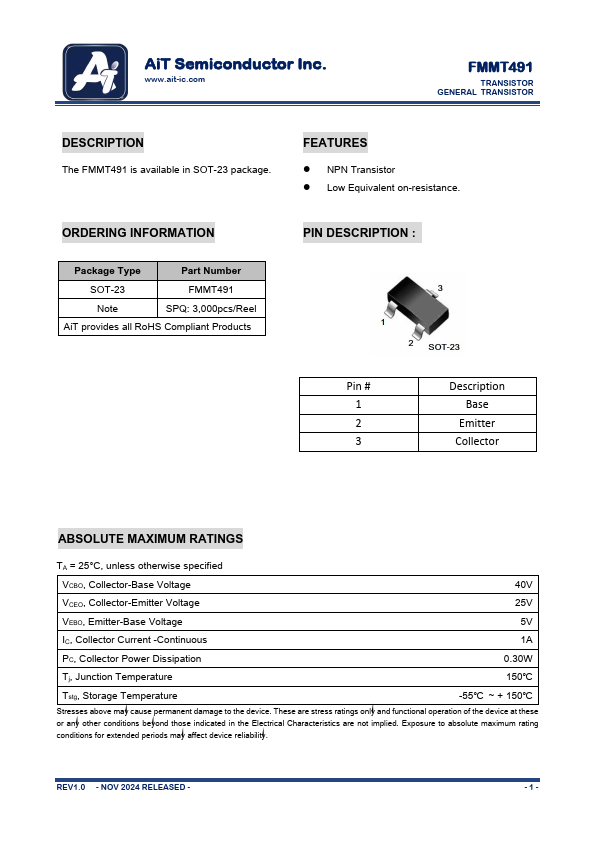

FMMT491
DESCRIPTION
The FMMT491 is available in SOT-23 package.
FEATURES
- NPN Transistor
- Low Equivalent on-resistance.
ORDERING INFORMATION
Package Type
Part Number
SOT-23
Note
SPQ: 3,000pcs/Reel
Ai T provides all Ro HS pliant Products
PIN DESCRIPTION
:
Pin # 1 2 3
Description
Base
Emitter Collector
ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise specified
VCBO, Collector-Base Voltage
40V
VCEO, Collector-Emitter Voltage
25V
VEBO, Emitter-Base Voltage
5V
IC, Collector Current -Continuous
1A
PC, Collector Power Dissipation
0.30W
Tj, Junction Temperature
150℃
Tstg, Storage Temperature
-55℃ ~ + 150℃
Stresses above may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated in the Electrical Characteristics are not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
REV1.0
- NOV 2024 RELEASED
-...
