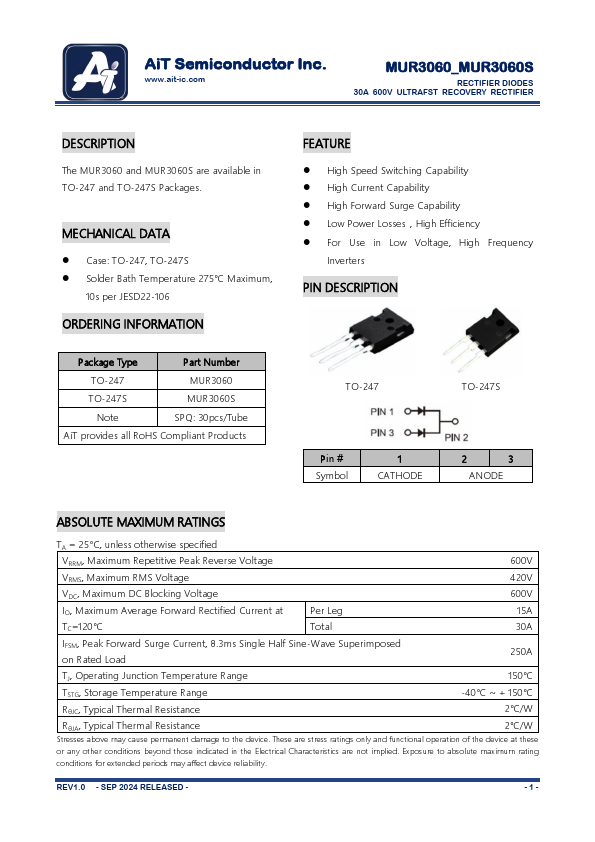

MUR3060S
DESCRIPTION
The MUR3060 and MUR3060S are available in TO-247 and TO-247S Packages.

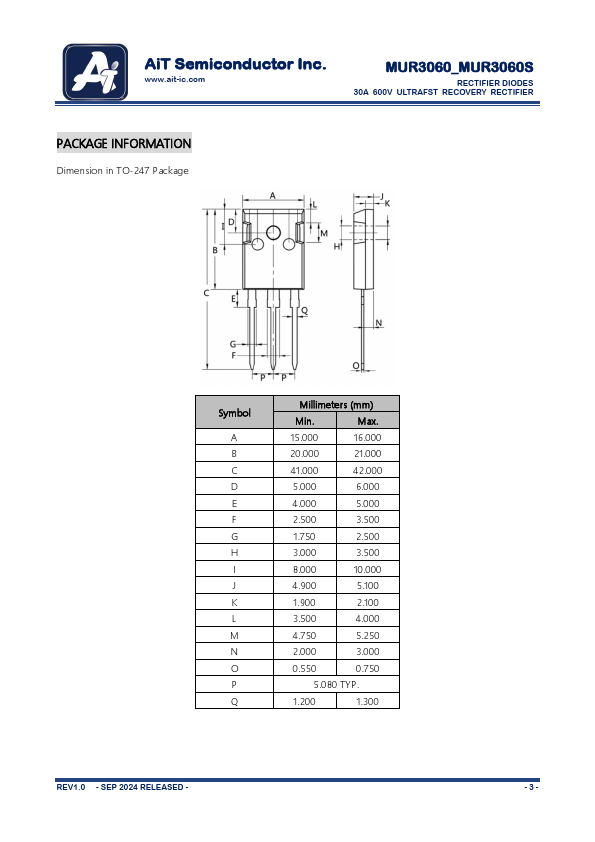

MECHANICAL DATA
- Case: TO-247, TO-247S
- Solder Bath Temperature 275℃ Maximum,
10s per JESD22-106
ORDERING INFORMATION
FEATURE
- High Speed Switching Capability
- High Current Capability
- High Forward Surge Capability
- Low Power Losses，High Efficiency
- For Use in Low Voltage, High Frequency
Inverters
PIN DESCRIPTION
Package Type
Part Number
TO-247
MUR3060
TO-247S
Note
SPQ: 30pcs/Tube
Ai T provides all Ro HS pliant Products
TO-247
TO-247S
Pin # Symbol
1 CATHODE
ANODE
ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise specified VRRM, Maximum Repetitive Peak Reverse Voltage VRMS, Maximum RMS Voltage VDC, Maximum DC Blocking Voltage IO, Maximum Average Forward Rectified Current at TC=120℃
Per Leg Total
600V 420V 600V
15A 30A
IFSM, Peak Forward Surge Current, 8.3ms Single Half Sine-Wave Superimposed on Rated Load
250A

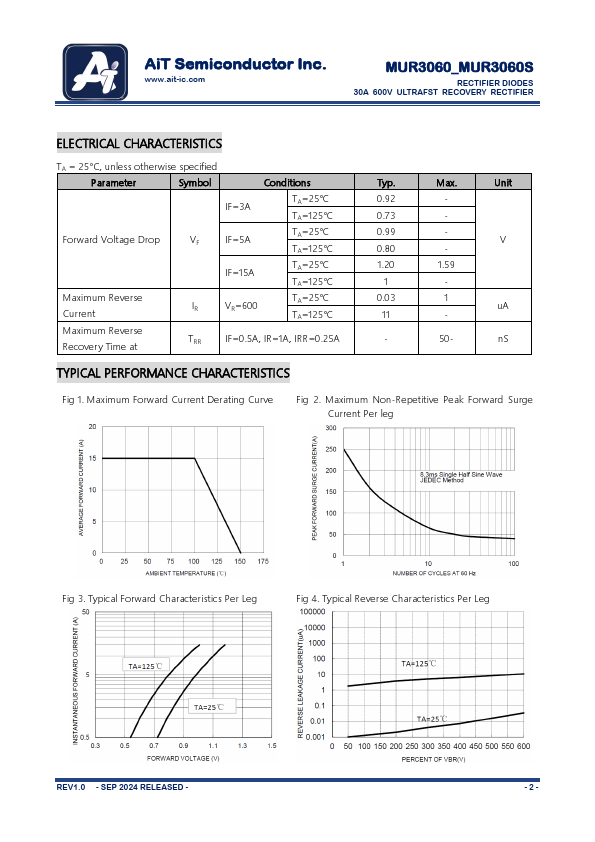

TJ, Operating Junction Temperature...
