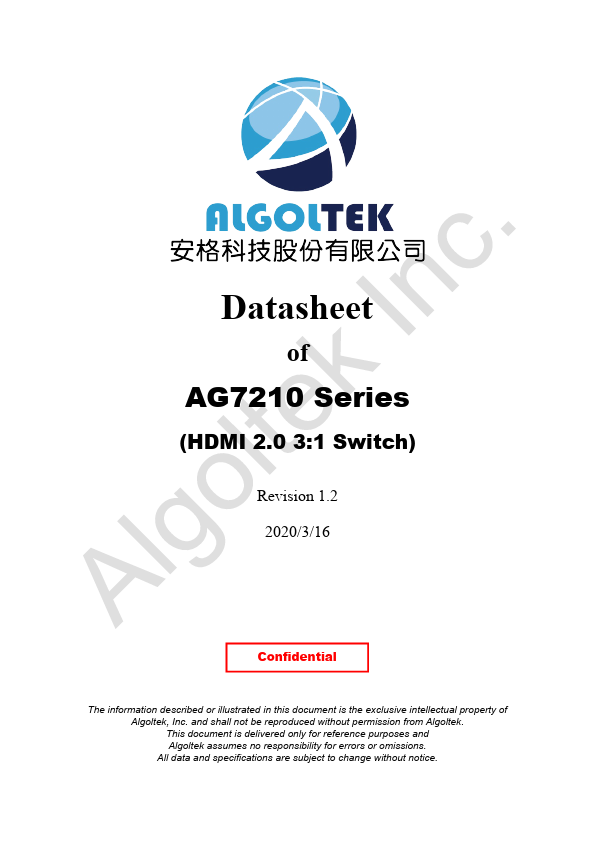

AG7210
Overview
ALGOLTEK AG7210 series provide a switch functionality that allows up to three HDMI or DVI video streams to be transported to one display sink device. HDMI is compliant with HDMI 2.0b Specification and supports up to 4096x2160/60Hz resolution.
- HDMI and DVI - HDMI 2.0b compliance - Up to 6Gbps TMDS bit rate - Up to 4096x2160p/30Hz resolution
- Support DC coupling for HDMI.
- Support integrated 50-ohm termination resistors for high-speed input signals
- Support output swing adjustment and pre- emphasis enhancement
- Support programmable equalization ratio for adjusting video quality and cable length
- Support automatic input selection of HDMI
- Support manual selection between active inputs
- Support external controller for input selection
- Support deep color and RGB/YUV (4:4:4), YUV (4:2:2) and YUV (4:2:0) color format
- Embedded LDO regulator from 5V to 3.3V/1.2V
