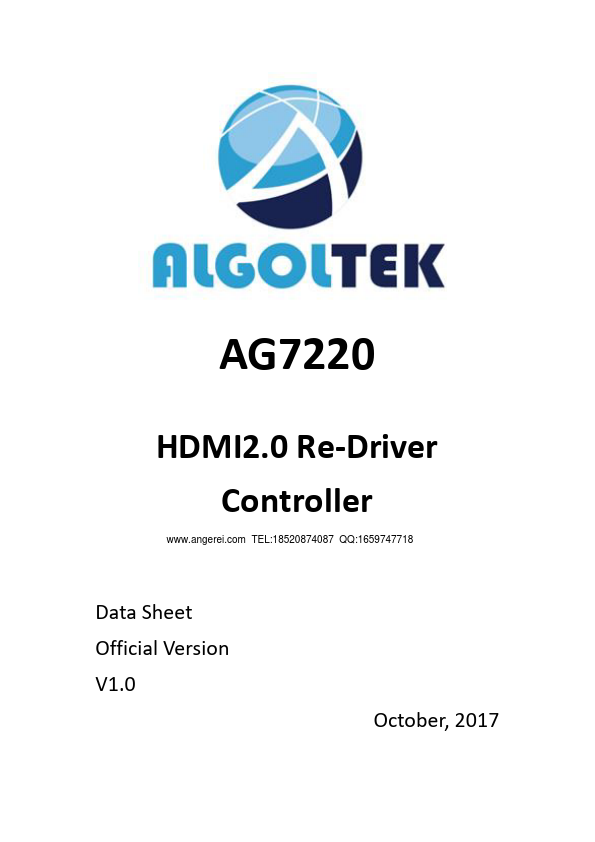

AG7220 Overview
Key Features
- Compatible to HDMI 2.0 specification
- Support HDMI and DVI inputs
- Support both AC coupled and DC coupled inputs
- Maximum TMDS throughput up to 6Gbps per lane (Total 18Gbps)
- Support 4K2K@60Hz resolution
- Support Deep Color
- Wide-range receiver equalization ratio: 7.5dB ~ 20dB @ 6Gbps
- Programmable receiver equalization for supporting cables with different lengths
- Pin selectable output swing and pre-emphasis control
- Built-in 3.3V LDO and 1.2V LDO
