M3321 Datasheet PDF

Ali M3321

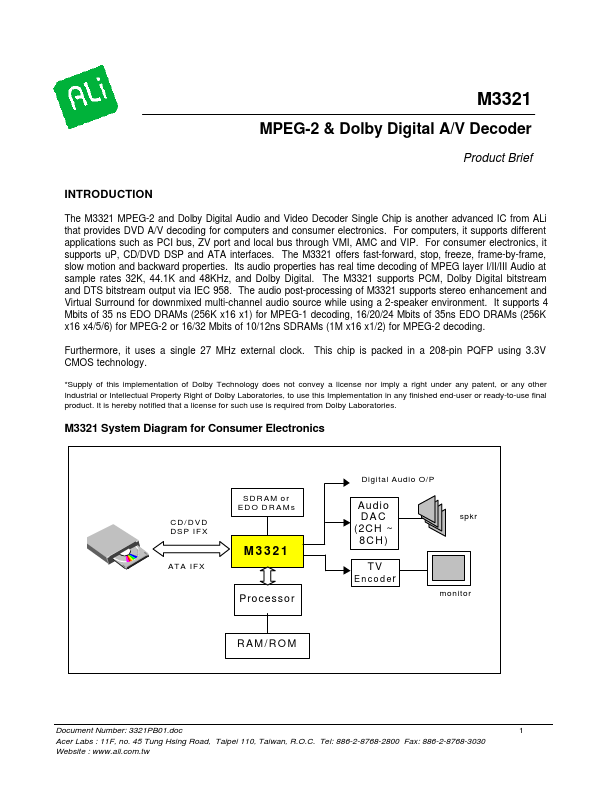

The M3321 MPEG-2 and Dolby Digital Audio and Video Decoder Single Chip is another advanced IC from ALi that provides DVD A/V decoding for computers and consumer electronics. For computers, it supports different applications such as PCI bus, ZV port and local bus through VMI, AMC and VIP. For consumer electronics, it supports uP, CD/DVD DSP and ATA interfaces.

Part No.	M3321
Datasheet	M3321 Download
Manufacturer	Ali
Description	MPEG-2 & Dolby Digital A/V Decoder
Buy	Stock & Price

FEATURES

n Integrated MPEG-2 & Dolby Digital audio/video decoders for DVD, STB applications n Supports different Interfaces such as PCI, ZV Port and local bus without glue logic for PC application and uP, channel (CD/DVD-DSP, ATAPI) interface for Consumer application n Supports DVD 1.1, Super VideoCD, VideoCD 1.0, 1.1 and 2.0, CD-I and CD-DA n Supports complete firmwares such as DVD Navigator, Device driver, related I/O interface drivers (e.g. Audio DAC, TV encoder, UI devices, ATAPI Interface) for Consumer application MPEG System n Built-in MPEG-1 System Stream and MPEG-2 Program Stream/ Packetized Elementary Stream Parser n Supports DVD private packets such as PCI, DSI, Sub-picture, Dolby Digital, LPCM parsing n CD/DVD-ROM format parsing n Built-in hardware CSS for Authentication and Descrambling n On-chip audio and video synchronization n Automatic Error Concealment MPEG Video n MPEG-1, MPEG-2 Main-Profile @ Main-Level video decoding n DVD Sub-Picture decoding and close captioning p...
