3968 Datasheet DUAL FULL-BRIDGE PWM MOTOR DRIVER WITH BRAKE

Manufacturer: Allegro MicroSystems

Overview: 3968 ADVANCE INFORMATION (subject to change without notice) September 3, 1999 DUAL FULL-BRIDGE PWM MOTOR DRIVER WITH BRAKE The A3968SA and A3968SLB are designed to bidirectionally control two dc.

📥 Download Datasheet

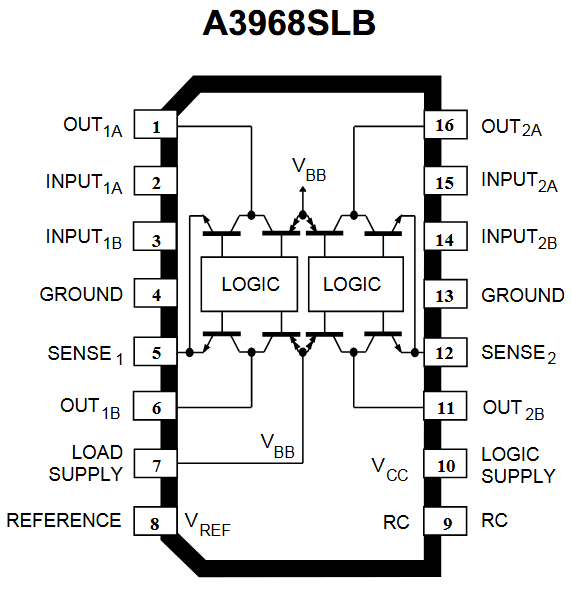

3968 dual full-bridge pwm motor driver with brake by Allegro MicroSystems - Datasheet Preview

Datasheet Details

Part number	3968
Manufacturer	Allegro MicroSystems
File Size	140.90 KB
Description	DUAL FULL-BRIDGE PWM MOTOR DRIVER WITH BRAKE
Download	3968 Download (PDF)

Key Features

s s s s s s s s s ±650 mA Continuous Output Current 30 V Output Voltage Rating Internal Fixed-Frequency PWM Current Control Satlington™ Sink Drivers Brake Mode User-Selectable Blanking Window Internal Ground-Clamp & Flyback Diodes Internal Thermal-Shutdown Circuitry Crossover-Current Protection and UVLO Protection Always order by complete part number: Part Number A3968SA A3968SLB Package 16-pin DIP 16-lead batwing SOIC RθJA 60°C/W 67°C/W RθJC 38°C/W.
RθJT.
6°C/W 3968 DUAL FUL.
