7003 - HIGH-VOLTAGE/ HIGH-CURRENT DARLINGTON ARRAY

Key Features

  • Active Pull-Down Active Pull-Down Active Pull-Down Active Pull-Down X.
  • X X X X X.
  • X X.
  • X.
  • X X X X.
  • X X X X X.
  • X X X X X.
  • Part.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
7003 TRI-BAND GSM/DCS/PCS LNA STMicroelectronics
7003-RC Dual-Line Toroid Inductors BOURNS
700 RECTIFIERS ASSEMBLIES Microsemi Corporation
700-1 RECTIFIERS ASSEMBLIES Microsemi Corporation
700-2 RECTIFIERS ASSEMBLIES Microsemi Corporation

Other Datasheets by Allegro MicroSystems

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

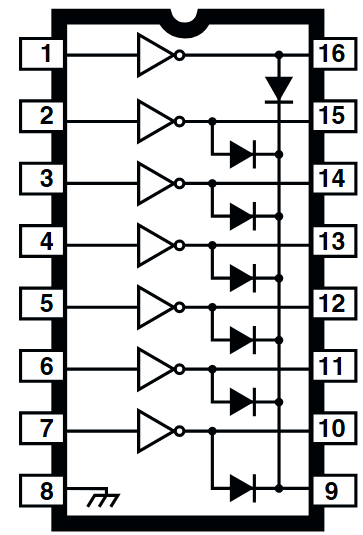

7003 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 Dwg. No. A-9594 HIGH-VOLTAGE, HIGH-CURRENT DARLINGTON ARRAY Integrating seven high-voltage, high-current npn Darlingtons into a monolithic power array, the ULN7003A AND ULN7003LW are designed for interfacing between TTL or CMOS logic and a variety of peripheral loads. The seven open-collector Darlington outputs are specified for 135 V minimum breakdown and 90 V minimum sustaining. Included are integral power diodes for switching inductive loads. Typical applications include relays, lamps, print heads and hammers, solenoids, and level shifting to power discretes. The ULN7003A/LW include input current-limiting resistors compatible with the drive capabilities of TTL and (most) CMOS operating at a nominal logic supply of 5 V.
