A4950 - Full-Bridge DMOS PWM Motor Driver

General Description

Designed for pulse width modulated (PWM) control of DC motors, the A4950 is capable of peak output currents to ±3.5 A and operating voltages to 40 V.

Input terminals are provided for use in controlling the speed and direction of a DC motor with externally applied PWM control signals.

Key Features

  • Low RDS(on) outputs.
  • Overcurrent protection (OCP) ▫ Motor short protection ▫ Motor lead short to ground protection ▫ Motor lead short to battery protection.
  • Low Power Standby mode.
  • Adjustable PWM current limit.
  • Synchronous rectification.
  • Internal undervoltage lockout (UVLO).
  • Crossover-current protection.
  • A4950K is AEC-Q100 Grade 1 qualified.
  • Commercial temperature grade (A4950E:.
  • 40°C to 85°C ).
  • Au.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
A4952 Full-Bridge DMOS PWM Motor Drivers Allegro
A4953 Full-Bridge DMOS PWM Motor Drivers Allegro
A4954 Dual Full-Bridge DMOS PWM Motor Driver Allegro
A4955 Full-Bridge PWM Gate Driver Allegro
A4956 Full-Bridge PWM Gate Driver Allegro

Other Datasheets by Allegro MicroSystems

Part Number Description
A4915 3-Phase MOSFET Driver
A4919 Three-Phase MOSFET Driver
A4931 3-Phase Brushless DC Motor Pre-Driver
A4960 Sensorless BLDC Controller
A4970 Dual Full-Bridge PWM Motor Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

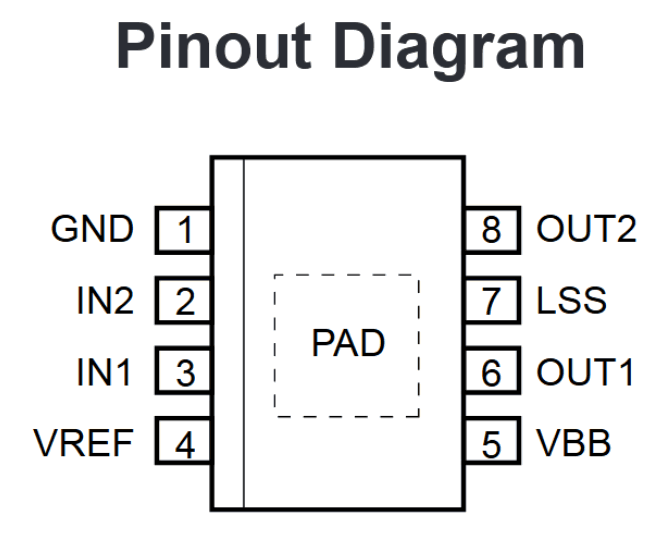

A4950 Full-Bridge DMOS PWM Motor Driver FEATURES AND BENEFITS • Low RDS(on) outputs • Overcurrent protection (OCP) ▫ Motor short protection ▫ Motor lead short to ground protection ▫ Motor lead short to battery protection • Low Power Standby mode • Adjustable PWM current limit • Synchronous rectification • Internal undervoltage lockout (UVLO) • Crossover-current protection • A4950K is AEC-Q100 Grade 1 qualified • Commercial temperature grade (A4950E: –40°C to 85°C ) • Automotive temperature grade (A4950K: –40°C to 125°C) PACKAGE: 8-pin SOICN with exposed thermal pad (suffix LJ) DESCRIPTION Designed for pulse width modulated (PWM) control of DC motors, the A4950 is capable of peak output currents to ±3.5 A and operating voltages to 40 V.
