SLA7042M - MICROSTEPPING/ UNIPOLAR PWM/ HIGH-CURRENT MOTOR CONTROLLER/DRIVER

Key Features

  • s s s s s s s s s Cost-Effective, Multi-Chip Solution ‘Turn-Key’ Motion-Control Module Motor Operation to 3 A and 46 V 3rd Generation High-Voltage FETs 100 V, Avalanche-Rated NMOS Low r DS(on) NMOS Outputs Advanced, Improved Body Diodes Microstepping Unipolar Drive High-Efficiency, High-Speed PWM s Independent PWM Current Control (2-Phase) s Digitally Programmable PWM Current Control s Low Component-Count PWM Drive s Low Internal-Power Dissipation s Electrically Isolated Power Tab s Logic IC- an.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SLA7042M 2-Phase Stepper Motor Unipolar Driver ICs Sanken electric
SLA7044M 2-Phase Stepper Motor Unipolar Driver ICs Sanken electric
SLA7000 CMOS HIGH SPEED GATE ARRAY ETC
SLA7020M Unipolar Driver ICs Sanken electric
SLA7021M Unipolar Driver ICs Sanken electric

Other Datasheets by Allegro MicroSystems

Part Number Description
SLA7044M HIGH-CURRENT MOTOR CONTROLLER/DRIVER
SLA7024M HIGH-CURRENT PWM/ UNIPOLAR STEPPER MOTOR CONTROLLER/DRIVERS
SLA7026M HIGH-CURRENT PWM/ UNIPOLAR STEPPER MOTOR CONTROLLER/DRIVERS
SLA7050M UNIPOLAR STEPPER-MOTOR TRANSLATOR/PWM DRIVER
SLA7051M UNIPOLAR STEPPER-MOTOR TRANSLATOR/PWM DRIVER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

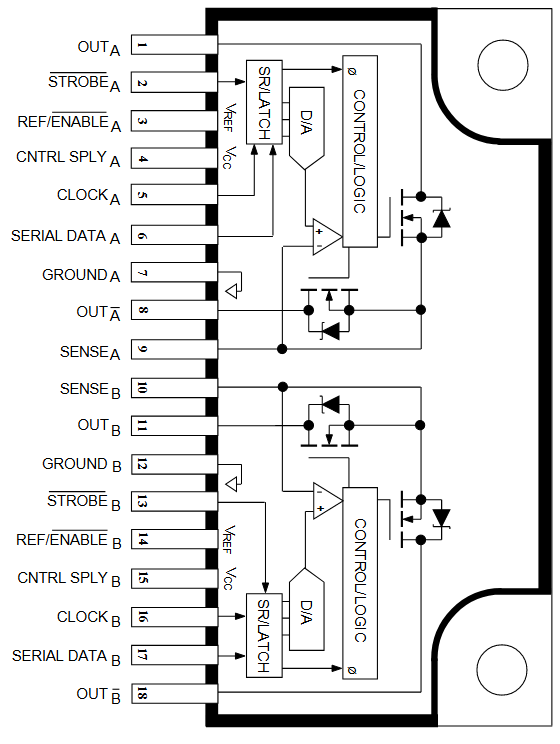

SLA7042M AND SLA7044M MICROSTEPPING, UNIPOLAR PWM, HIGH-CURRENT MOTOR CONTROLLER/DRIVER OUT A STROBE A REF/ENABLE A CNTRL SPLY A CLOCK A SERIAL DATA A GROUND A OUT A SENSE A SENSE B OUT B GROUND B STROBE B REF/ENABLE B CNTRL SPLY B CLOCK B SERIAL DATA B OUT B Data Sheet 28202A* The SLA7042M and SLA7044M are designed for high-efficiency and high-performance microstepping operation of 2-phase, unipolar stepper motors. Microstepping provides improved resolution without limiting step rates, and provides much smoother low-speed motor operation. An automated, innovative packaging technology combined with power NMOS FETs and monolithic CMOS logic/control circuitry advances power multi-chip modules (PMCMs™) toward the complete integration of motion control.
