A133 Datasheet | Allwinner

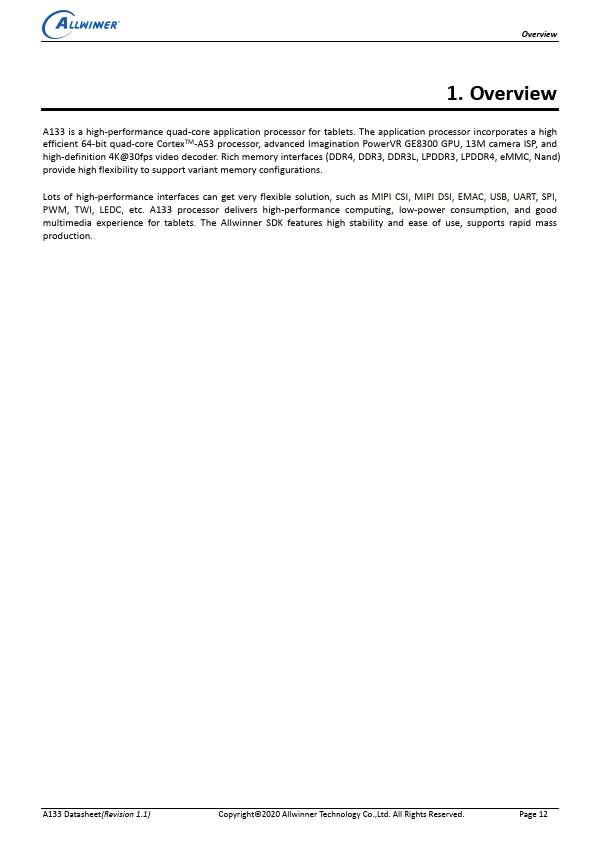

Overview 1. Overview A133 is a high-performance quad-core application processor for tablets. The application processor incorporates a high efficient 64-bit quad-core Cortex TM-A53 processor, advanced Imagination Power VR GE8300 GPU, 13M camera ISP, and high-definition 4K@30fps video decoder. Rich memory interfaces (DDR4, DDR3, DDR3L, LPDDR3, LPDDR4, e MMC, Nand) provide high flexibility to support variant memory configurations. Lots of high-performance interfaces can get very flexible solution, such as MIPI CSI, MIPI DSI, EMAC, USB, UART, SPI, PWM, TWI, LEDC, etc. A133 processor delivers high-performance puting, low-power consumption, and good multimedia experience for tablets. The Allwinner SDK features high stability and ease of use, supports rapid mass production. A133 Datasheet(Revision 1.1) Copyright©2020 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 12 Features 2. Features 2.1. CPU Architecture - Quad-core ARM Cortex TM-A53 processor@1.6 GHz - Power-efficient ARM v8 architecture - 64-bit and 32-bit execution states for scalable high performance - Trustzone technology supported - Supports NEON Advanced SIMD (Single Instruction Multiple Data) instruction for acceleration of media and signal processing functions - VFPv4 Floating Point Unit - 32 KB L1 Instruction cache and 32 KB L1 Data cache for per CPU - 512 KB L2 cache shared 2.2. GPU Architecture - Imagination GE8300 - Supports Open GL ES 1.1/2.0/3.2, Vulkan 1.1, Open CL 1.2 2.3. Memory Subsystem 2.3.1. Boot ROM - On-chip memory - Supports system boot from the following devices: - SD/e MMC (SMHC0, SMHC2) - Nand Flash - SPI Nor Flash - SPI Nand Flash - Supports secure boot and normal boot - Supports mandatory upgrade process through SMHC0 and USB - Supports GPIO pin to select the kind of boot media to boot - Supports GPADC to select the kind of boot media to boot - Supports SID (e FUSE) to select the kind of boot media to boot - Secure brom supports load only certified firmware - Secure brom ensures...
