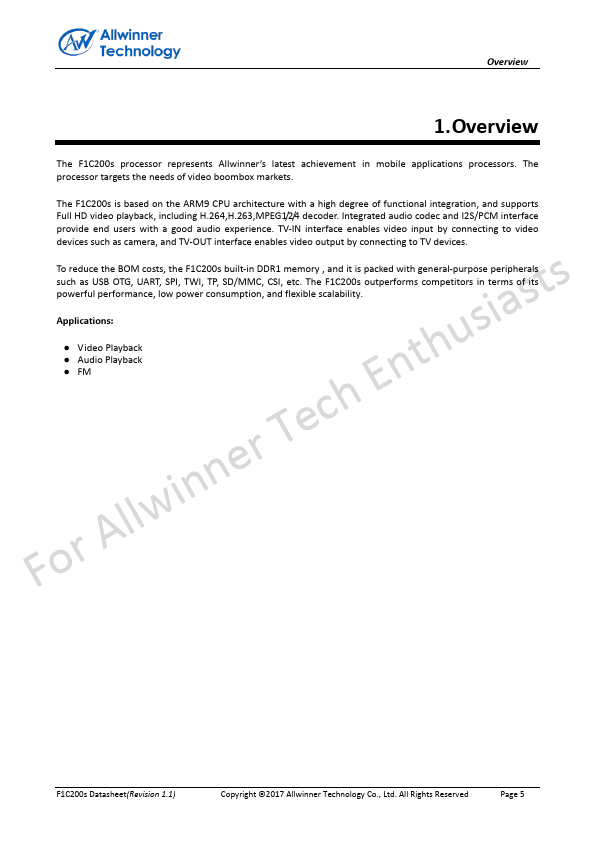

Overview 1. Overview The F1C200s processor represents Allwinner’s latest achievement in mobile applications processors. The processor targets the needs of video boombox markets. The F1C200s is based on the ARM9 CPU architecture with a high degree of functional integration, and supports Full HD video playback, including H.264,H.263,MPEG1/2/4 decoder. Integrated audio codec and I2S/PCM interface provide end users with a good audio experience. TV-IN interface enables video input by connecting to video devices such as camera, and TV-OUT interface enables video output by connecting to TV devices. For Allwinner Tech Enthusiasts To reduce the BOM costs, the F1C200s built-in DDR1 memory , and it is packed with general-purpose peripherals such as USB OTG, UART, SPI, TWI, TP, SD/MMC, CSI, etc. The F1C200s outperforms petitors in terms of its powerful performance, low power consumption, and flexible scalability. Applications: - Video Playback - Audio Playback - FM F1C200s Datasheet(Revision 1.1) Copyright © 2017 Allwinner Technology Co., Ltd. All Rights Reserved Page 5 Features 2. Features 2.1. CPU Architecture The F1C200s platform is based on ARM9 CPU architecture. - Five-stage pipeline architecture - Support 16KByte D-Cache - Support 32KByte I-Cache 2.2. Memory Subsystem For Allwinner Tech Enthusiasts This section consists of internal memory and external memory: - Boot ROM - SDRAM - SD/MMC Interface Boot ROM - Internal memory - On-Chip ROM boot loader - Support system boot from SPI Nor/Nand Flash, and SD/TF card - Support system code download through USB OTG SDRAM - SIP DDR1 SD/MMC Interface - External memory - Support secure digital memory protocol mands (up to SD2.0) - Support secure digital I/O protocol mands (up to SDIO2.0) - Support multimedia card protocol mands (up to e MMC4.41) - Support one SD (Verson1.0 to 2.0) or MMC (version 3.3 to e MMC4.41) - Support hardware CRC generation and error detection - Support host pull-up control - Support SDIO interrupts in...
