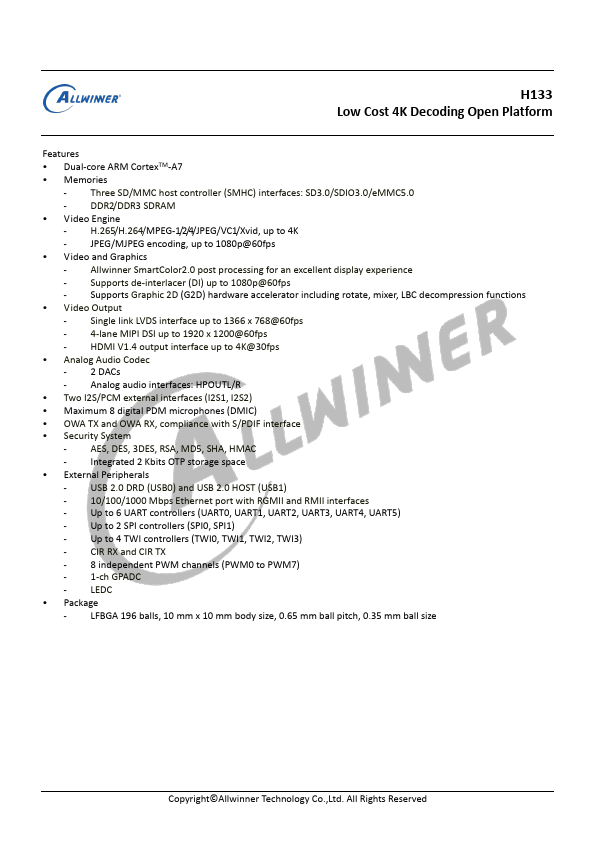

H133
H133 is Low Cost 4K Decoding Open Platform manufactured by Allwinner.
Features
- Dual-core ARM Cortex TM-A7
- Memories
- Three SD/MMC host controller (SMHC) interfaces: SD3.0/SDIO3.0/e MMC5.0
- DDR2/DDR3 SDRAM
- Video Engine
- H.265/H.264/MPEG-1/2/4/JPEG/VC1/Xvid, up to 4K
- JPEG/MJPEG encoding, up to 1080p@60fps
- Video and Graphics
- Allwinner Smart Color2.0 post processing for an excellent display experience
- Supports de-interlacer (DI) up to 1080p@60fps
- Supports Graphic 2D (G2D) hardware accelerator including rotate, mixer, LBC depression functions
- Video Output
- Single link LVDS interface up to 1366 x 768@60fps
- 4-lane MIPI DSI up to 1920 x 1200@60fps
- HDMI V1.4 output interface up to 4K@30fps
- Analog Audio Codec
- 2 DACs
- Analog audio interfaces: HPOUTL/R
- Two I2S/PCM external interfaces (I2S1, I2S2)
- Maximum 8 digital PDM microphones (DMIC)
- OWA TX and OWA RX, pliance with S/PDIF interface
- Security System
- AES, DES, 3DES, RSA, MD5, SHA, HMAC
- Integrated 2 Kbits OTP storage space
- External Peripherals
- USB 2.0 DRD (USB0) and USB 2.0 HOST (USB1)
- 10/100/1000 Mbps Ethernet port with RGMII and RMII interfaces
- Up to 6 UART controllers (UART0, UART1, UART2, UART3, UART4, UART5)
- Up to 2 SPI controllers (SPI0, SPI1)
- Up to 4 TWI controllers (TWI0, TWI1, TWI2, TWI3)
- CIR RX and CIR TX
- 8 independent PWM channels (PWM0 to PWM7)
- 1-ch GPADC
- LEDC
- Package
- LFBGA 196 balls, 10 mm x 10 mm body size, 0.65 mm ball pitch, 0.35 mm ball size
