H135 Datasheet | Allwinner

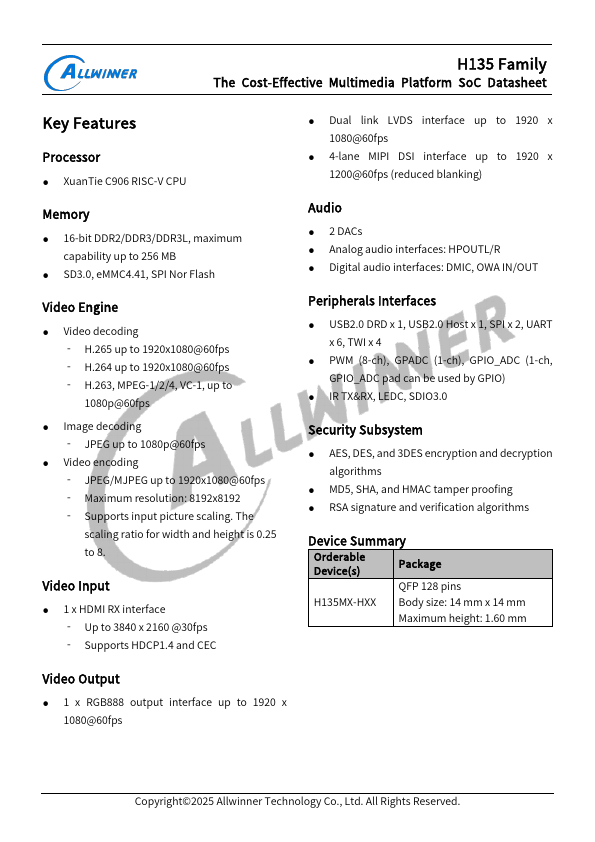

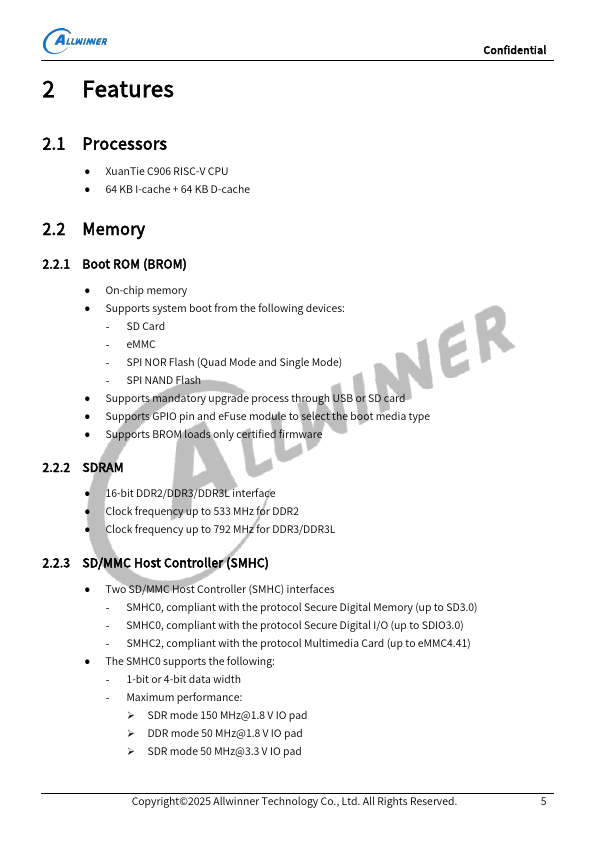

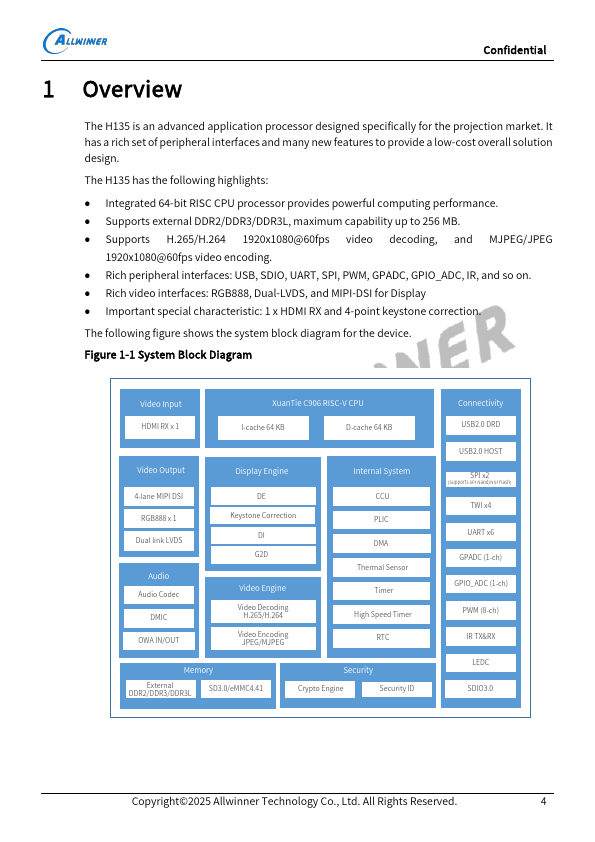

Features Processor - Xuan Tie C906 RISC-V CPU Memory - 16-bit DDR2/DDR3/DDR3L, maximum capability up to 256 MB - SD3.0, e MMC4.41, SPI Nor Flash Video Engine - Video decoding ‐ H.265 up to 1920x1080@60fps ‐ H.264 up to 1920x1080@60fps ‐ H.263, MPEG-1/2/4, VC-1, up to 1080p@60fps - Image decoding ‐ JPEG up to 1080p@60fps - Video encoding ‐ JPEG/MJPEG up to 1920x1080@60fps ‐ Maximum resolution: 8192x8192 ‐ Supports input picture scaling. The scaling ratio for width and height is 0.25 to 8. Video Input - 1 x HDMI RX interface ‐ Up to 3840 x 2160 @30fps ‐ Supports HDCP1.4 and CEC - Dual link LVDS interface up to 1920 x 1080@60fps - 4-lane MIPI DSI interface up to 1920 x 1200@60fps (reduced blanking) Audio - 2 DACs - Analog audio interfaces: HPOUTL/R - Digital audio interfaces: DMIC, OWA IN/OUT Peripherals Interfaces - USB2.0 DRD x 1, USB2.0 Host x 1, SPI x 2, UART x 6, TWI x 4 - PWM (8-ch), GPADC (1-ch), GPIO_ADC (1-ch, GPIO_ADC pad can be used by GPIO) - IR TX&RX, LEDC, SDIO3.0 Security Subsystem - AES, DES, and 3DES encryption and decryption algorithms - MD5, SHA, and HMAC tamper proofing - RSA signature and verification algorithms Device Summary Orderable Device(s) Package QFP 128 pins H135MX-HXX Body size: 14 mm x 14 mm Maximum height: 1.60 mm Video Output - 1 x RGB888 output interface up to 1920 x 1080@60fps Copyright©2025 Allwinner Technology Co., Ltd. All Rights Reserved. Confidential 1 Overview The H135 is an advanced application processor designed specifically for the projection market. It has a rich set of peripheral interfaces and many new features to provide a low-cost overall solution design. The H135 has the following highlights: - Integrated 64-bit RISC CPU processor provides powerful puting performance. - Supports external DDR2/DDR3/DDR3L, maximum capability up to 256...
