H136 Datasheet | Allwinner

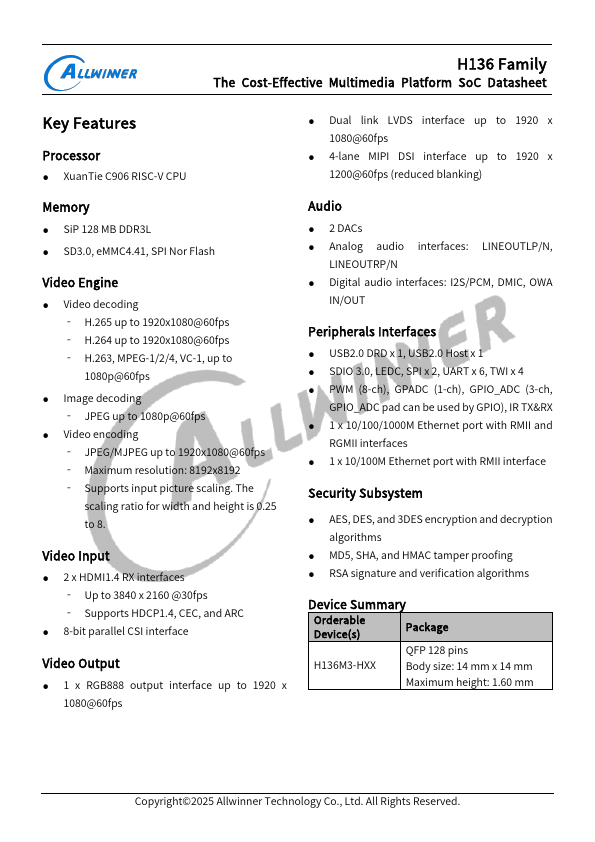

Features Processor - Xuan Tie C906 RISC-V CPU - Dual link LVDS interface up to 1920 x 1080@60fps - 4-lane MIPI DSI interface up to 1920 x 1200@60fps (reduced blanking) Memory - Si P 128 MB DDR3L - SD3.0, e MMC4.41, SPI Nor Flash Video Engine - Video decoding ‐ H.265 up to 1920x1080@60fps ‐ H.264 up to 1920x1080@60fps ‐ H.263, MPEG-1/2/4, VC-1, up to 1080p@60fps - Image decoding ‐ JPEG up to 1080p@60fps - Video encoding ‐ JPEG/MJPEG up to 1920x1080@60fps ‐ Maximum resolution: 8192x8192 ‐ Supports input picture scaling. The scaling ratio for width and height is 0.25 to 8. Video Input - 2 x HDMI1.4 RX interfaces ‐ Up to 3840 x 2160 @30fps ‐ Supports HDCP1.4, CEC, and ARC - 8-bit parallel CSI interface Video Output - 1 x RGB888 output interface up to 1920 x 1080@60fps Audio - 2 DACs - Analog audio interfaces: LINEOUTLP/N, LINEOUTRP/N - Digital audio interfaces: I2S/PCM, DMIC, OWA IN/OUT Peripherals Interfaces - USB2.0 DRD x 1, USB2.0 Host x 1 - SDIO 3.0, LEDC, SPI x 2, UART x 6, TWI x 4 - PWM (8-ch), GPADC (1-ch), GPIO_ADC (3-ch, GPIO_ADC pad can be used by GPIO), IR TX&RX - 1 x 10/100/1000M Ethernet port with RMII and RGMII interfaces - 1 x 10/100M Ethernet port with RMII interface Security Subsystem - AES, DES, and 3DES encryption and decryption algorithms - MD5, SHA, and HMAC tamper proofing - RSA signature and verification algorithms Device Summary Orderable Device(s) Package QFP 128 pins H136M3-HXX...
