H616
H616 is High Picture Quality 4K Decoding SoC manufactured by Allwinner.
H616 Datasheet
High Picture Quality 4K Decoding So C
Revision 1.0 Dec.30, 2019
Copyright © 2019 Allwinner Technology Co.,Ltd. All Rights Reserved.
Overview
1. Overview
H616 is a high-performance So C that supports 4K@60fps decoding for over-the-top(OTT) and Internet Protocol television(IPTV) markets. H616 integrates the 4-core 64-bit high performance Cortex TM-A53 processor, built-in NEON acceleration engine, powerful CPU processing capabilities to meet a variety of differentiated business requirements. Maintain the best user experience in terms of stream patibility, fluency of online video playback, image quality and performance of the whole machine. H616 supports multi formats of video decoder such as H.265, H.264, VP9, AVS2, AVS/AVS+, MPEG-1, MPEG-2, MPEG-4, VC1, VP8, and high-performance H.264 video encoder, which can meet the growing needs of multimedia playback, video munication. H616 also provides rich peripheral interfaces, such as USB2.0, SDIO3.0, 1000Mbps EMAC, TSC, SPI, UART, CIR, etc. H616 adopts the new generation of power consumption technology, and reduces power consumption of 20% than the last generation.
H616 Datasheet(Revision 1.0)
Copyright© 2019 Allwinner Technology Co.,Ltd. All Rights Reserved.
Page 9
Features

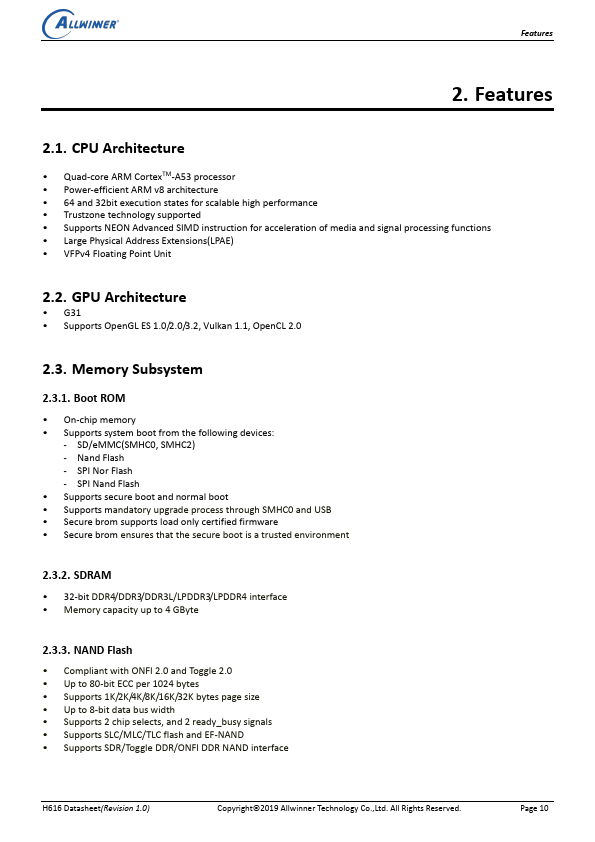

2. Features
2.1. CPU Architecture
- Quad-core ARM Cortex TM-A53 processor
- Power-efficient ARM v8 architecture
- 64 and 32bit execution states for scalable high performance
- Trustzone technology supported
- Supports NEON Advanced SIMD instruction for acceleration of media and signal processing functions
- Large Physical Address Extensions(LPAE)
- VFPv4 Floating Point Unit
2.2. GPU Architecture
- G31
- Supports Open GL ES 1.0/2.0/3.2, Vulkan 1.1, Open CL 2.0
2.3. Memory Subsystem
2.3.1. Boot ROM
- On-chip memory
- Supports system boot from the following devices:
- SD/e MMC(SMHC0, SMHC2)
- Nand Flash
- SPI Nor...
