R528 Overview
Key Specifications
Package: Axial
Mount Type: Through Hole
Length: 6.3 mm
Max Operating Temp: 155 °C

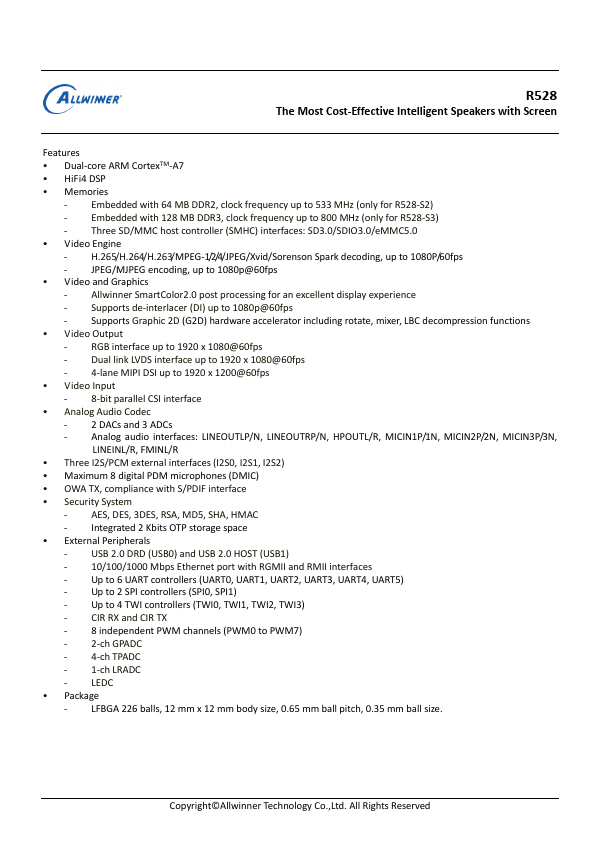

Key Features
- Embedded with 64 MB DDR2, clock frequency up to 533 MHz (only for R528-S2)
- Embedded with 128 MB DDR3, clock frequency up to 800 MHz (only for R528-S3)
- Three SD/MMC host controller (SMHC) interfaces: SD3.0/SDIO3.0/eMMC5.0 Video Engine
- JPEG/MJPEG encoding, up to 1080p@60fps Video and Graphics
- Allwinner SmartColor2.0 post processing for an excellent display experience
- Supports de-interlacer (DI) up to 1080p@60fps
- Supports Graphic 2D (G2D) hardware accelerator including rotate, mixer, LBC decompression functions Video Output
- RGB interface up to 1920 x 1080@60fps
- Dual link LVDS interface up to 1920 x 1080@60fps
- 4-lane MIPI DSI up to 1920 x 1200@60fps Video Input
