R818 Datasheet | Allwinner

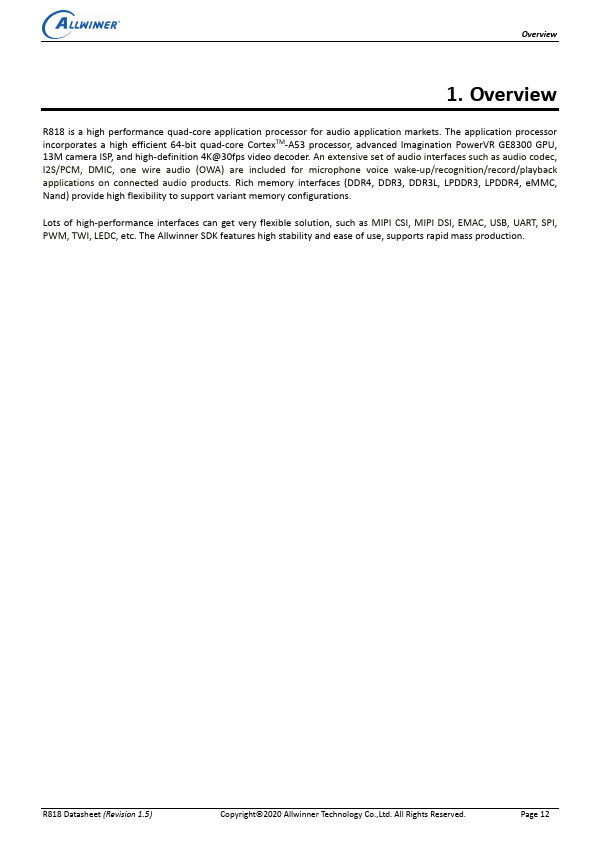

Overview 1. Overview R818 is a high performance quad-core application processor for audio application markets. The application processor incorporates a high efficient 64-bit quad-core Cortex TM-A53 processor, advanced Imagination Power VR GE8300 GPU, 13M camera ISP, and high-definition 4K@30fps video decoder. An extensive set of audio interfaces such as audio codec, I2S/PCM, DMIC, one wire audio (OWA) are included for microphone voice wake-up/recognition/record/playback applications on connected audio products. Rich memory interfaces (DDR4, DDR3, DDR3L, LPDDR3, LPDDR4, e MMC, Nand) provide high flexibility to support variant memory configurations. Lots of high-performance interfaces can get very flexible solution, such as MIPI CSI, MIPI DSI, EMAC, USB, UART, SPI, PWM, TWI, LEDC, etc. The Allwinner SDK features high stability and ease of use, supports rapid mass production. R818 Datasheet (Revision 1.5) Copyright©2020 Allwinner Technology Co.,Ltd. All Rights Reserved. Page 12 Features 2. Features 2.1. CPU Architecture - Quad-core ARM Cortex TM-A53 processor - Power-efficient ARM v8 architecture - 64-bit and 32-bit execution states for scalable high performance - Trustzone technology supported - Supports NEON Advanced SIMD(Single Instruction Multiple Data) instruction for acceleration of media and signal processing functions - VFPv4 Floating Point Unit - 32 KB L1 Instruction cache and 32 KB L1 Data cache for per CPU - 512 KB L2 cache shared 2.2. GPU Architecture - Imagination GE8300 - Supports Open GL ES 1.1/2.0/3.2, Vulkan 1.1, Open CL 1.2 2.3. Memory Subsystem 2.3.1. Boot ROM - On-chip memory - Supports system boot from the following devices: - SD/e MMC(SMHC0, SMHC2) - Nand Flash - SPI Nor Flash - SPI Nand Flash - Supports secure boot and normal boot - Supports mandatory upgrade process through SMHC0 and USB - Supports GPIO pin to select the kind of boot media to boot - Supports GPADC to select the kind of boot media to boot - Supports SID(efuse) to select the...
