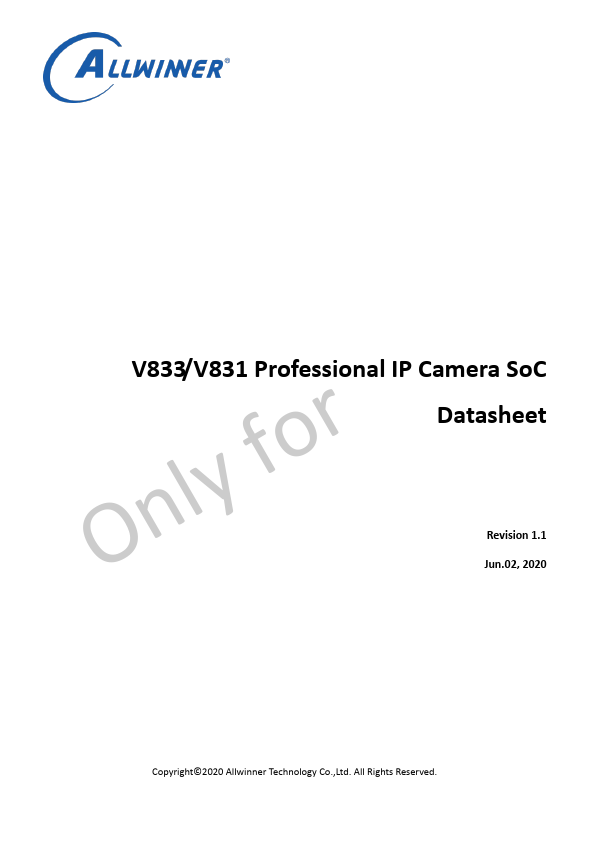

V831 Datasheet | Allwinner

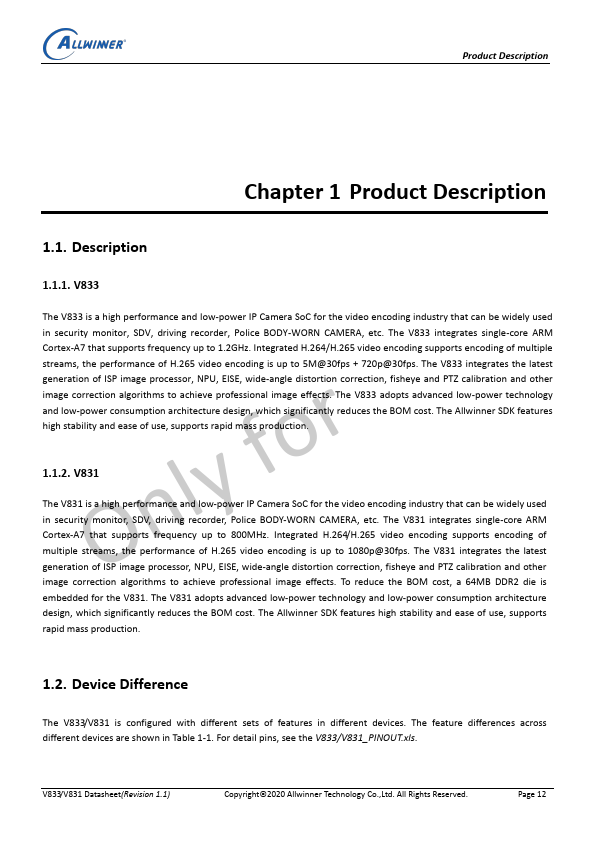

Description Chapter 1 Product Description 1.1. Description 1.1.1. V833 The V833 is a high performance and low-power IP Camera So C for the video encoding industry that can be widely used in security monitor, SDV, driving recorder, Police BODY-WORN CAMERA, etc. The V833 integrates single-core ARM Cortex-A7 that supports frequency up to 1.2GHz. Integrated H.264/H.265 video encoding supports encoding of multiple streams, the performance of H.265 video encoding is up to 5M@30fps + 720p@30fps. The V833 integrates the latest generation of ISP image processor, NPU, EISE, wide-angle distortion correction, fisheye and PTZ calibration and other Only for image correction algorithms to achieve professional image effects. The V833 adopts advanced low-power technology and low-power consumption architecture design, which significantly reduces the BOM cost. The Allwinner SDK features high stability and ease of use, supports rapid mass production. 1.1.2. V831 The V831 is a high performance and low-power IP Camera So C for the video encoding industry that can be widely used in security monitor, SDV, driving recorder, Police BODY-WORN CAMERA, etc. The V831 integrates single-core ARM Cortex-A7 that supports frequency up to 800MHz. Integrated H.264/H.265 video encoding supports encoding of multiple streams, the performance of H.265 video encoding is up to 1080p@30fps. The V831 integrates the latest generation of ISP image processor, NPU, EISE, wide-angle distortion correction, fisheye and PTZ calibration and other image correction algorithms to achieve professional image effects. To reduce the BOM cost, a 64MB DDR2 die is embedded for the V831. The V831 adopts advanced low-power technology and low-power consumption architecture design, which significantly reduces the BOM cost. The Allwinner SDK features high stability and ease of use, supports rapid mass production. 1.2. Device Difference The V833/V831 is configured with different sets of features in different devices. The feature...
