AOCA32106E - 12V Common-Drain Dual N-Channel MOSFET

Datasheet Summary

Description

Trench Power MOSFET Technology Low RSS(ON) With ESD protection to improve battery performance and safety Common drain configuration for design simplicity RoHS and Halogen-Free Compliant Applications Battery protection switch Mobil

Alpha & Omega Semiconductors

📥 Download Datasheet

Datasheet Details

Part number	AOCA32106E
Manufacturer	Alpha & Omega Semiconductors
File Size	677.75 KB
Description	12V Common-Drain Dual N-Channel MOSFET
Datasheet	AOCA32106E Datasheet

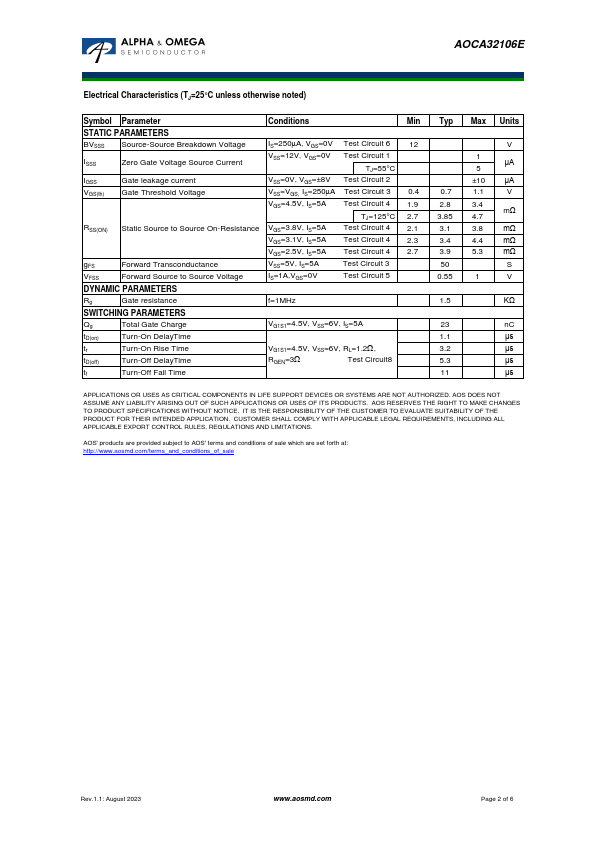

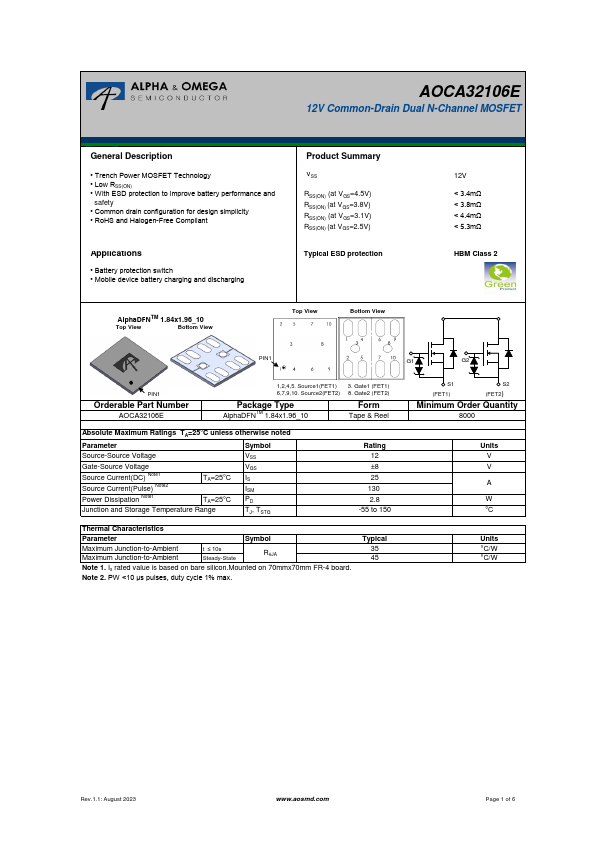

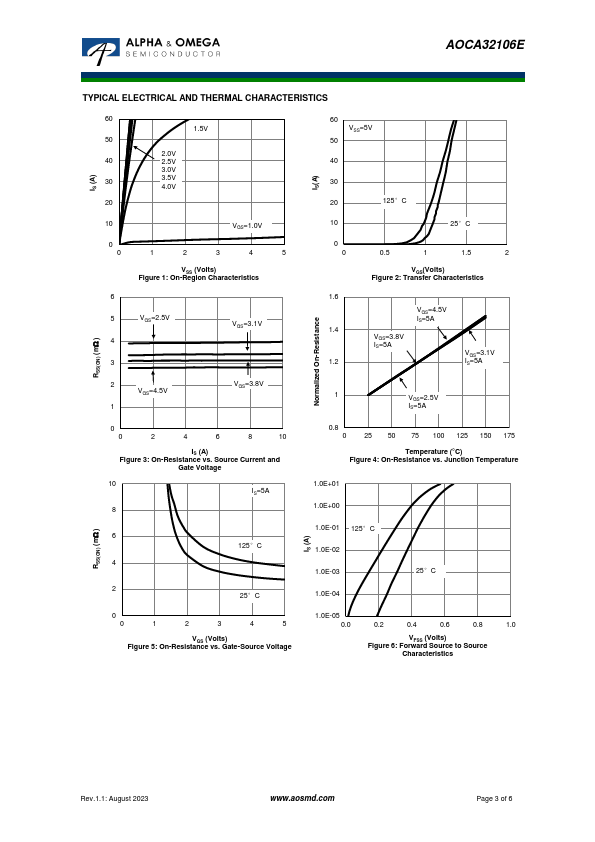

Additional preview pages of the AOCA32106E datasheet.
