AONS62814T - 80V N-Channel MOSFET

Product Overview

📥 Download Datasheet

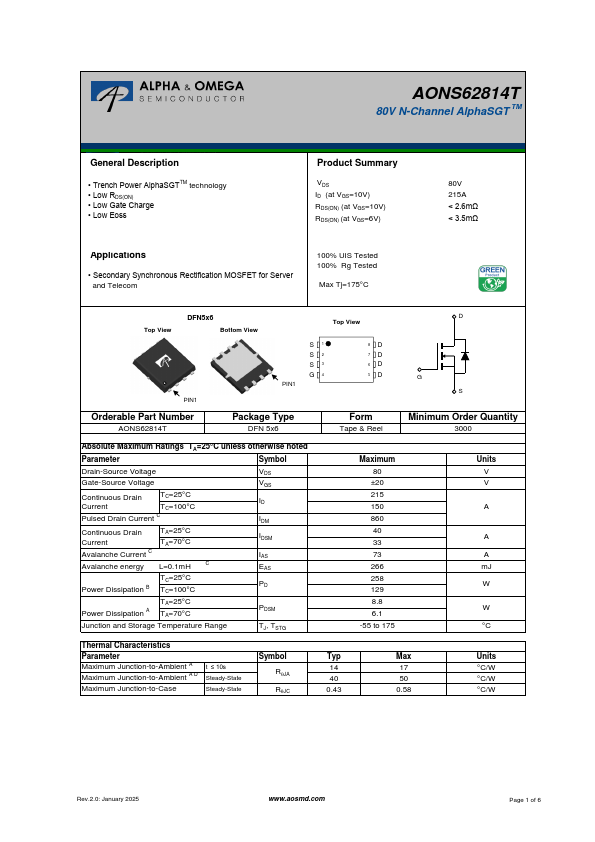

Datasheet preview – AONS62814T

Datasheet Details

Part number AONS62814T
Manufacturer Alpha & Omega Semiconductors
File Size 570.21 KB
Description 80V N-Channel MOSFET
Datasheet download datasheet AONS62814T Datasheet

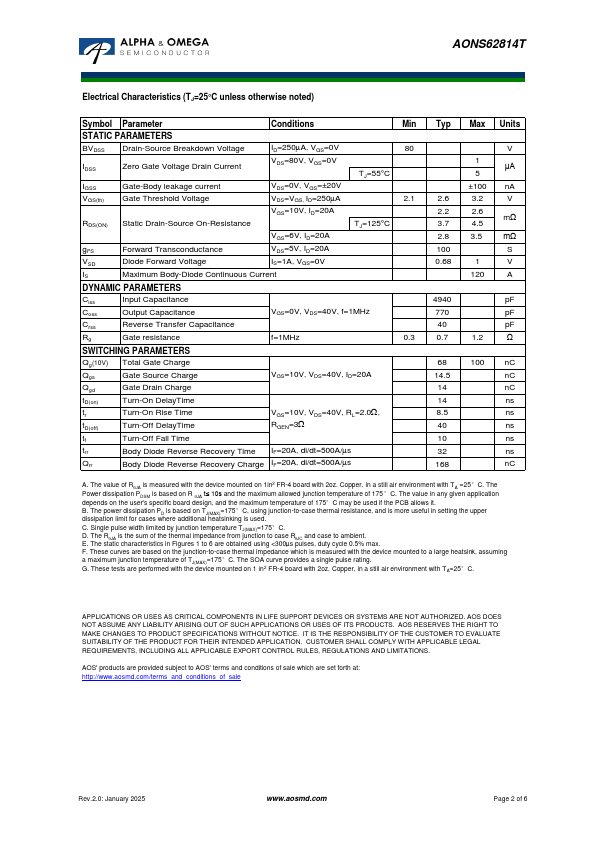

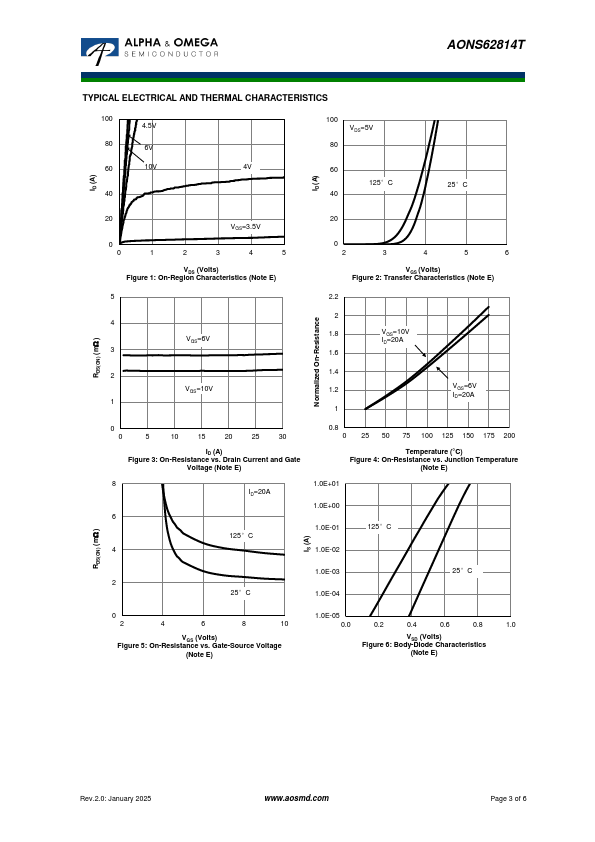

Additional preview pages of the AONS62814T datasheet.

Product details

Description

Trench Power AlphaSGTTM technology Low RDS(ON) Low Gate Charge Low Eoss Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=6V) 80V 100A < 2.6mΩ < 3.5mΩ Applications Secondary Synchronous Rectification MOSFET for Server and Telecom 100% UIS Tested 100% Rg Tested Max Tj=175°C Top View DFN5x6 Bottom View PIN1 Orderable Part Number AONS62814T PIN1 Package Type DFN 5x6 Top View S1 S2 S3 G4 8D 7D 6D 5D Form Tape & Reel
