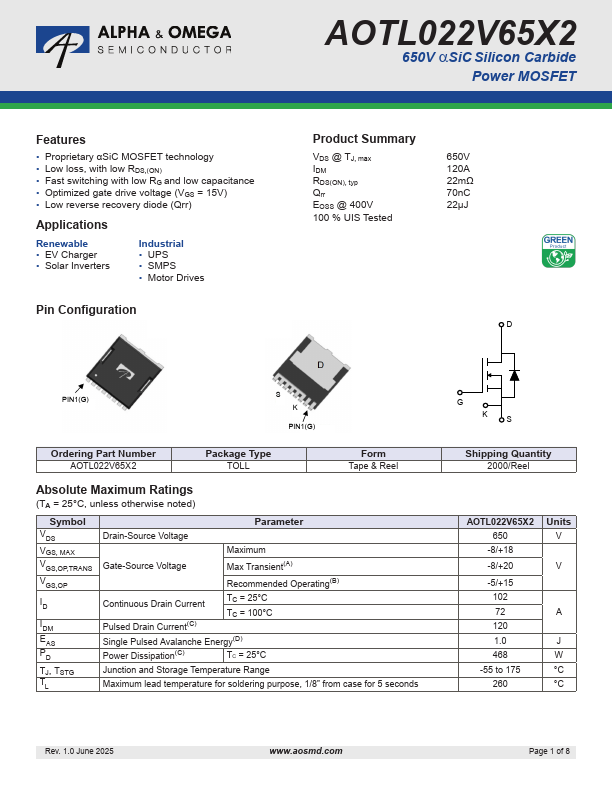

Features
• Proprietary αSiC MOSFET technology • Low loss, with low RDS,(ON) • Fast switching with low RG and low capacitance • Optimized gate drive voltage (VGS = 15V) • Low reverse recovery diode (Qrr)
Applications
Renewable • EV Charger • Solar Inverters
Industrial • UPS • SMPS • Motor Drives
Pin Configuration
AOTL022V65X2 650V αSiC Silicon Carbide Power MOSFET
Product Summary
VDS @ TJ, max IDM RDS(ON), typ Qrr EOSS @ 400V 100 % UIS Tested
650V 120A 22mΩ 70nC 22µJ
D
PIN1(G)
S K
PIN1(G)
Ordering Part Number AOTL022V65X2
Package Type TOLL
Form Tape & Reel
Absolute Maximum Ratings
(TA = 25°C, unless otherwise noted)
Symbol VDS VGS, MAX VGS,OP,TRANS VGS,OP
ID
IDM EAS PD TJ, TSTG TL
Parameter
Drain-Source Voltage
Maximum
Gate-Source Voltage
Max Transient(A)
Recommended Ope
