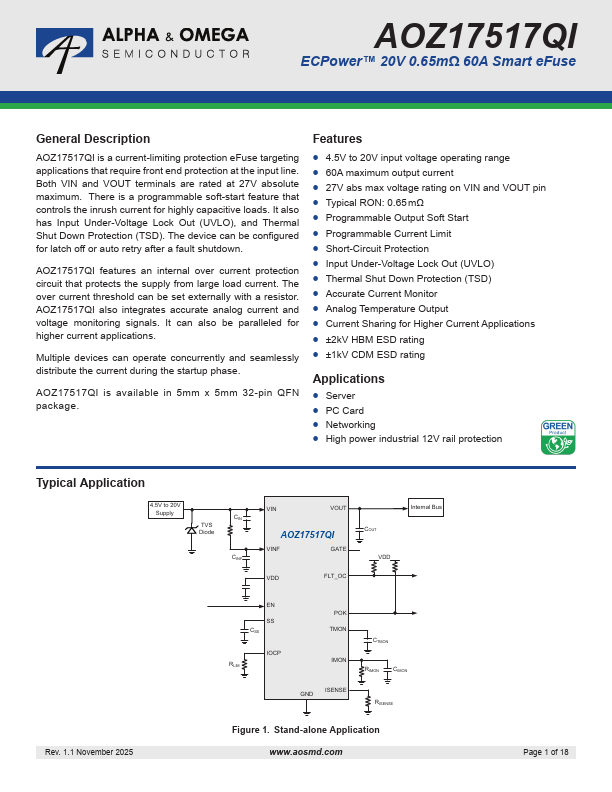

AOZ17517QI - 20V 60A Smart eFuse

General Description

AOZ17517QI is a current-limiting protection eFuse targeting applications that require front end protection at the input line.

Both VIN and VOUT terminals are rated at 27V absolute maximum.

There is a programmable soft-start feature that controls the inrush current for highly capacitive loads.

Key Features

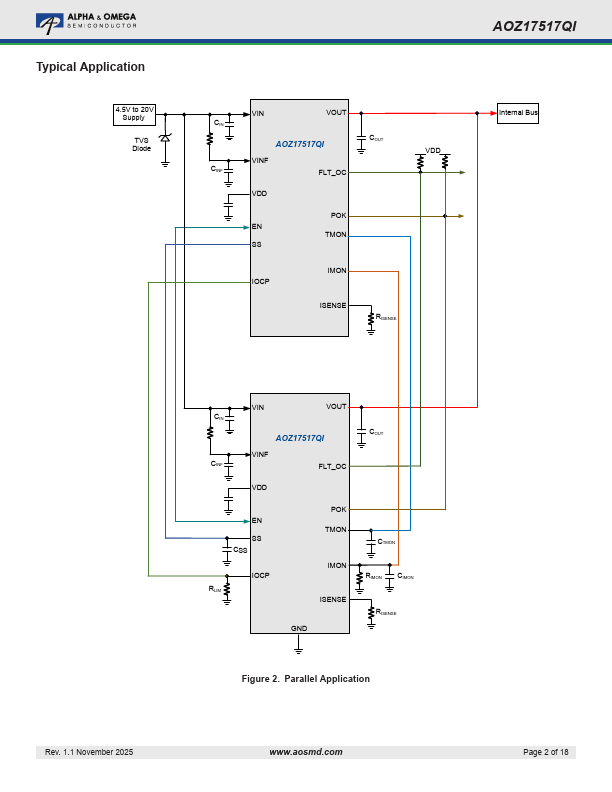

  • an internal over current protection circuit that protects the supply from large load current. The over current threshold can be set externally with a resistor. AOZ17517QI also integrates accurate analog current and voltage monitoring signals. It can also be paralleled for higher current.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AOZ1015 EZBuck 1.5A Synchronous Buck Regulator Alpha and Omega Semiconductors
AOZ1017 EZBuck 3A Simple Regulator Alpha and Omega Semiconductors
AOZ1018 EZBuck 2A Simple Regulator Alpha and Omega Semiconductors
AOZ1019 EZBuck 2A Simple Regulator Alpha and Omega Semiconductors
AOZ1020 2A Synchronous Buck Regulator Alpha and Omega Semiconductors

Other Datasheets by Alpha & Omega Semiconductors

Part Number Description
AOZ1010 2A Simple Buck Regulator
AOZ1012D 3A Simple Buck Regulator
AOZ1013 3A Simple Buck Regulator
AOZ1014 5A Simple Buck Regulator
AOZ1016 2A Simple Buck Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
AOZ17517QI ECPower™ 20V 0.65mΩ 60A Smart eFuse General Description AOZ17517QI is a current-limiting protection eFuse targeting applications that require front end protection at the input line. Both VIN and VOUT terminals are rated at 27V absolute maximum. There is a programmable soft-start feature that controls the inrush current for highly capacitive loads. It also has Input Under-Voltage Lock Out (UVLO), and Thermal Shut Down Protection (TSD). The device can be configured for latch off or auto retry after a fault shutdown. AOZ17517QI features an internal over current protection circuit that protects the supply from large load current. The over current threshold can be set externally with a resistor. AOZ17517QI also integrates accurate analog current and voltage monitoring signals.
