AOZ18101DI-02 - 14?V Over-Voltage Protection eFuse

This page provides the datasheet information for the AOZ18101DI-02, a member of the AOZ18101DI-01 14?V Over-Voltage Protection eFuse family.

Datasheet Summary

Description

AOZ18101DI-01/02 is a current-limiting over-voltage protection eFuse targeting applications that require front end protection at the input line.

Both VIN and VOUT terminals are rated at 22 V absolute maximum.

Features

an internal current-limiting circuit that protects the supply from large load current. The current limit threshold can be set externally with a resistor. It will auto-restart after the fault conditions are released. AOZ18101DI-01 is auto-restart version after fault condition. AOZ18101DI-02 is latch-off version after fault is detected. Both are available in small 3 mm x 3 mm 10-pin DFN package. AOZ18101DI-01 is pin to pin compatible with TPS259241. AOZ18101DI-02 is pin to pin compatible with TPS2.

Datasheet Details

Part number	AOZ18101DI-02
Manufacturer	Alpha & Omega Semiconductors
File Size	1.29 MB
Description	14?V Over-Voltage Protection eFuse
Datasheet	AOZ18101DI-02 Datasheet

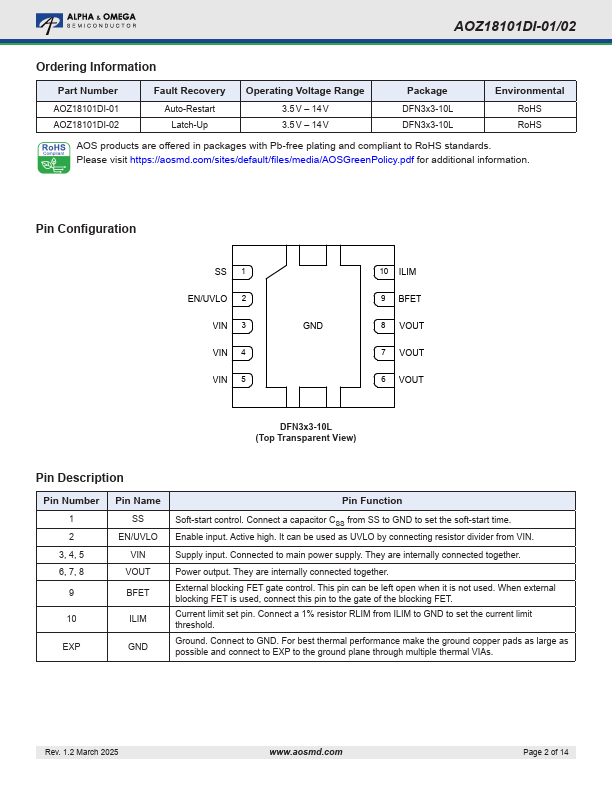

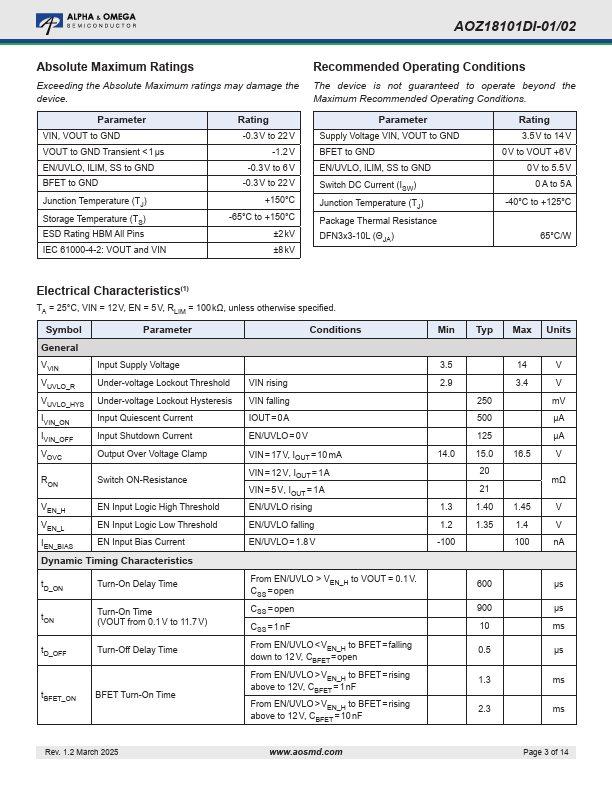

Additional preview pages of the AOZ18101DI-02 datasheet.

📁 Similar Datasheet

AOZ1015 - EZBuck 1.5A Synchronous Buck Regulator (Alpha and Omega Semiconductors)

AOZ1017 - EZBuck 3A Simple Regulator (Alpha and Omega Semiconductors)

AOZ1018 - EZBuck 2A Simple Regulator (Alpha and Omega Semiconductors)

AOZ1019 - EZBuck 2A Simple Regulator (Alpha and Omega Semiconductors)

AOZ1020 - 2A Synchronous Buck Regulator (Alpha and Omega Semiconductors)

AOZ1021 - EZBuck 3A Synchronous Buck Regulator (Alpha and Omega Semiconductors)

AOZ1024D - EZBuck 4A Synchronous Buck Regulator (Alpha and Omega Semiconductors)

AOZ3010PI - 2A Synchronous Buck Regulator (ALPHA & OMEGA)

AOZ3011PI - 3A Synchronous Buck Regulator (ALPHA & OMEGA)

AOZ3017 - 4A Synchronous Buck Regulator (ALPHA & OMEGA)

Full PDF Text Transcription

Click to expand full text

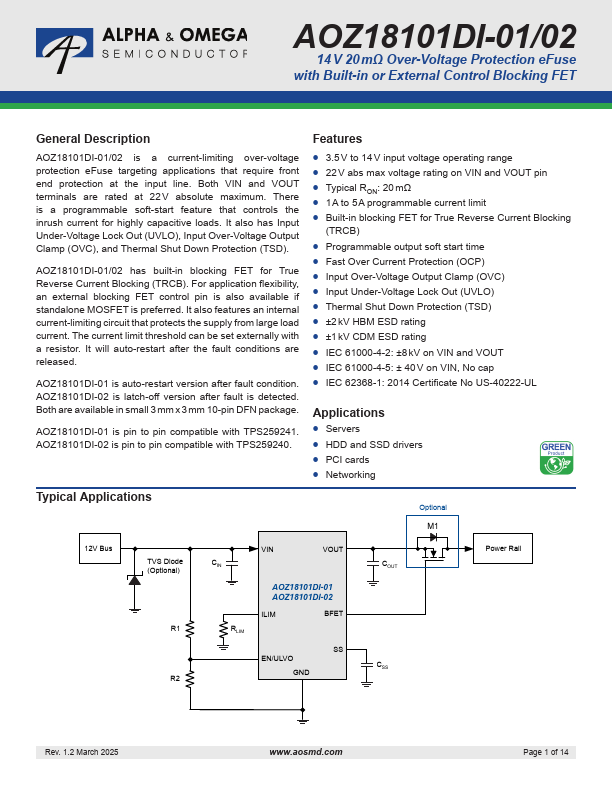

AOZ18101DI-01/02 14 V 20 mΩ Over-Voltage Protection eFuse with Built-in or External Control Blocking FET General Description AOZ18101DI-01/02 is a current-limiting over-voltage protection eFuse targeting applications that require front end protection at the input line. Both VIN and VOUT terminals are rated at 22 V absolute maximum. There is a programmable soft-start feature that controls the inrush current for highly capacitive loads. It also has Input Under-Voltage Lock Out (UVLO), Input Over-Voltage Output Clamp (OVC), and Thermal Shut Down Protection (TSD). AOZ18101DI-01/02 has built-in blocking FET for True Reverse Current Blocking (TRCB). For application flexibility, an external blocking FET control pin is also available if standalone MOSFET is preferred.
