AOZ22421QI - 28V/10A Synchronous Regulator

General Description

The AOZ22421QI is a high-efficiency, easy-to-use DC/DC synchronous buck regulator that operates up to 28V.

The device is capable of supplying 10A of continuous output current with an output voltage adjustable down to 0.8V ±1%.

Key Features

  • multiple protection functions such as VCC under-voltage lockout, cycle-by-cycle current limit, output over-voltage protection, short-circuit protection, and thermal shutdown. The AOZ22421QI is available in a 4mm×4mm QFN-22L package and is rated over a -40°C to +85°C ambient temperature range. Features.
  • Wide input voltage range: -  4V to 28V.
  • Support Intel ITDC up to 10A.
  • Support Intel ICCMAX up to 12A.
  • Output voltage adjustable to 0.8V ±1.0%.
  • Low RDS.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AOZ1015 EZBuck 1.5A Synchronous Buck Regulator Alpha and Omega Semiconductors
AOZ1017 EZBuck 3A Simple Regulator Alpha and Omega Semiconductors
AOZ1018 EZBuck 2A Simple Regulator Alpha and Omega Semiconductors
AOZ1019 EZBuck 2A Simple Regulator Alpha and Omega Semiconductors
AOZ1020 2A Synchronous Buck Regulator Alpha and Omega Semiconductors

Other Datasheets by Alpha & Omega Semiconductors

Part Number Description
AOZ2223QI 36V/8A Synchronous Regulator
AOZ2231CQI-11 28V/4A Synchronous Regulator
AOZ2231CQI-21 I2C Controllable 28V/4A Synchronous Regulator
AOZ2232CQI-02 28V/6A Synchronous Regulator
AOZ2238QI-01 28V/10A Synchronous Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

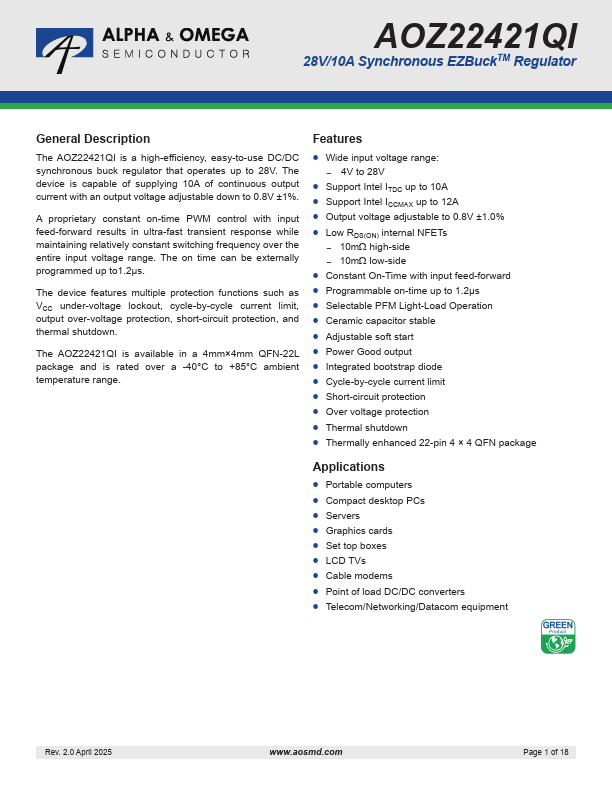

AOZ22421QI 28V/10A Synchronous EZBuckTM Regulator General Description The AOZ22421QI is a high-efficiency, easy-to-use DC/DC synchronous buck regulator that operates up to 28V. The device is capable of supplying 10A of continuous output current with an output voltage adjustable down to 0.8V ±1%. A proprietary constant on-time PWM control with input feed-forward results in ultra-fast transient response while maintaining relatively constant switching frequency over the entire input voltage range. The on time can be externally programmed up to1.2µs. The device features multiple protection functions such as VCC under-voltage lockout, cycle-by-cycle current limit, output over-voltage protection, short-circuit protection, and thermal shutdown.
