AOZ32101ADV - 100V 2.5A Half-bridge Gate Driver

General Description

The AOZ32101ADV is a 100V half-bridge gate driver, used to drive high side and low side N-channel MOSFETs, with sufficient drive capability and fast rise/fall times to operate at high frequencies or multiple MOSFETs in parallel.

Integrated bootstrap diode, saving external components.

Key Features

  • Drives half-bridge, dual N-channel MOSFET.
  • 110V bootstrap voltage range.
  • Input signal overlap protection.
  • Integrated bootstrap diode.
  • Typical 20ns propagation delay time.
  • Less than 5ns gate drive mismatch.
  • Less than 150μA quiescent current.
  • Less than 5μA shutdown current.
  • UVLO for both high side and low side.
  • DFN 3mm x 3mm 10 pin packages.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AOZ32034AQV Coil Driver ALPHA & OMEGA
AOZ3010PI 2A Synchronous Buck Regulator ALPHA & OMEGA
AOZ3011PI 3A Synchronous Buck Regulator ALPHA & OMEGA
AOZ3017 4A Synchronous Buck Regulator ALPHA & OMEGA
AOZ3018PI 5A Synchronous Buck Regulator ALPHA & OMEGA

Other Datasheets by Alpha & Omega Semiconductors

Part Number Description
AOZ32101MDV 100V 2.5A Half-bridge Gate Driver
AOZ32103MQV Three-Phase Motor Driver
AOZ32103MQV-06 Three-Phase Motor Driver
AOZ32033AQI Coil Driver
AOZ32063MQV Three-Phase Motor Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

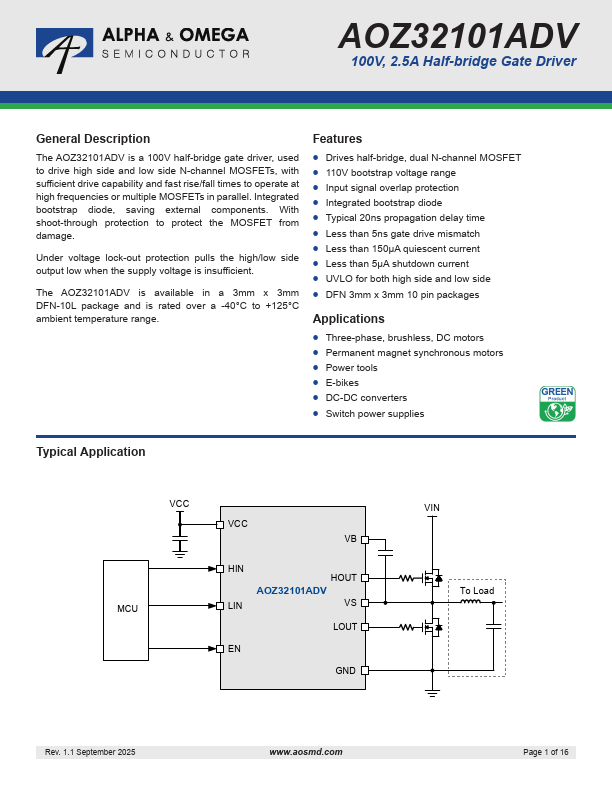

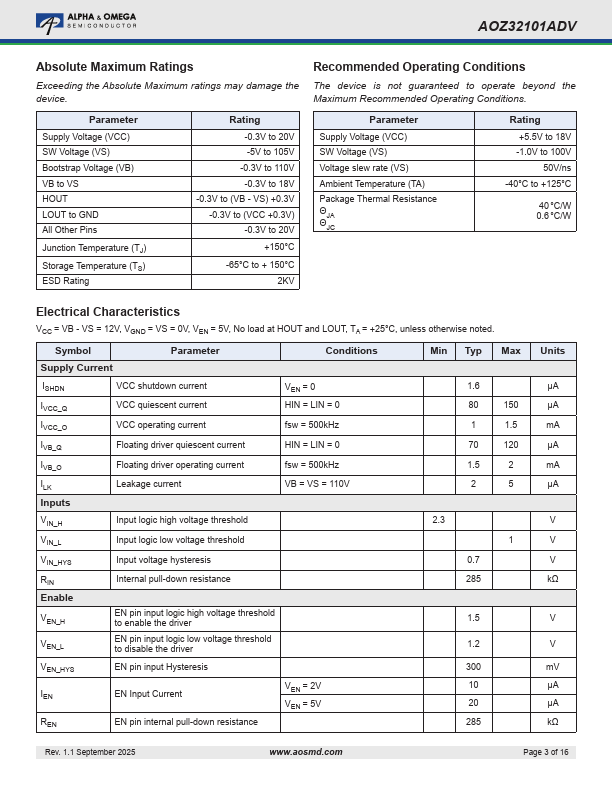

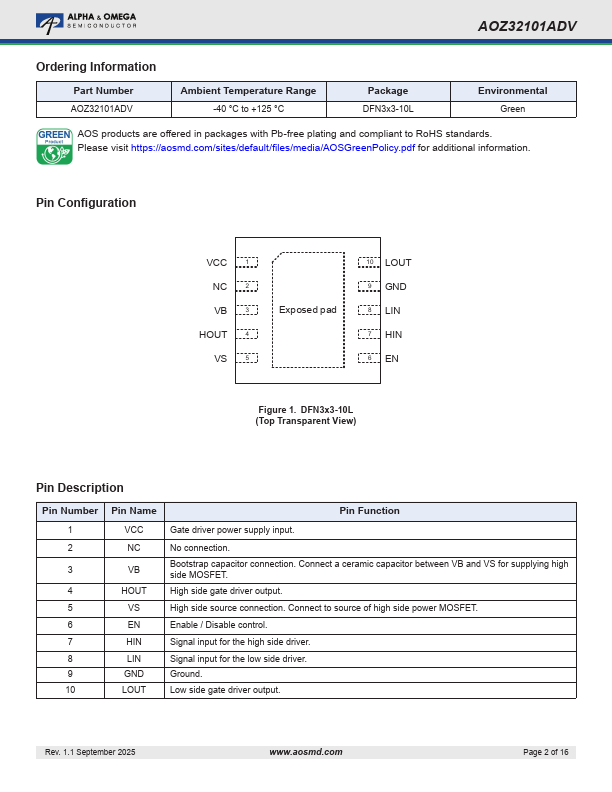

AOZ32101ADV 100V, 2.5A Half-bridge Gate Driver General Description The AOZ32101ADV is a 100V half-bridge gate driver, used to drive high side and low side N-channel MOSFETs, with sufficient drive capability and fast rise/fall times to operate at high frequencies or multiple MOSFETs in parallel. Integrated bootstrap diode, saving external components. With shoot-through protection to protect the MOSFET from damage. Under voltage lock-out protection pulls the high/low side output low when the supply voltage is insufficient. The AOZ32101ADV is available in a 3mm x 3mm DFN-10L package and is rated over a -40°C to +125°C ambient temperature range.
