AOZ8S204BL2 - Dual Channel Bidirectional 0.15pF TVS Diode

Datasheet Summary

Description

The AOZ8S204BL2 is a dual channel transient voltage suppressor designed to protect high speed data lines and voltage sensitive electronics from high transient conditions and ESD.

The AOZ8S204BL2 comes in an RoHS compliant package and is rated over a -40°C to +125°C ambient temperature range.

Features

  • ESD protection for high-speed data lines: - IEC 61000 4-2, ESD immunity: - Air discharge: ±20 kV - Contact discharge: ±20 kV - IEC 61000-4-5 (Lightning 8/20 µs): 8.5 A - IEC 61000-4-4 EFT (5/50 ns): 40 A - Human Body Mode: ±8 kV.
  • Bidirectional TVS.
  • Low capacitance: 0.15 pF.
  • Low clamping voltage.
  • Low operating voltage: 3.3 V, 5 V.

📥 Download Datasheet

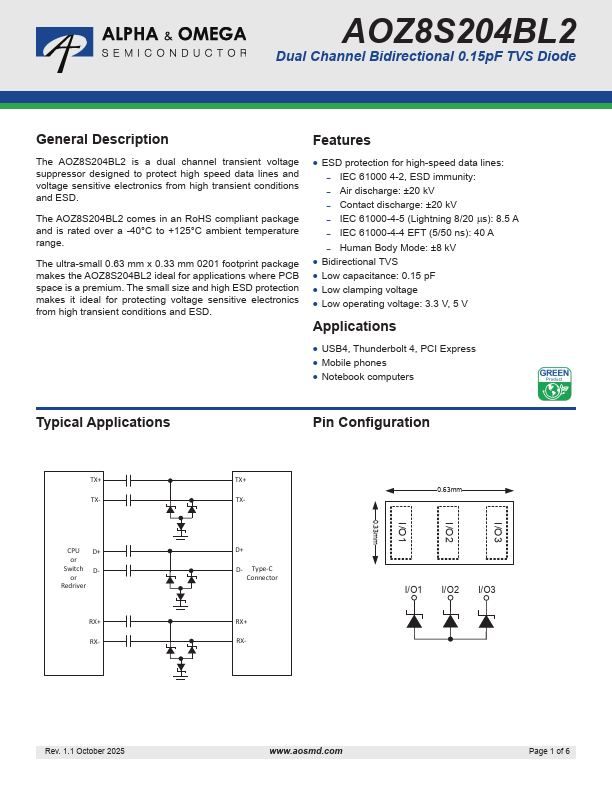

Datasheet preview – AOZ8S204BL2

Datasheet Details

Part number AOZ8S204BL2
Manufacturer Alpha & Omega Semiconductors
File Size 1.86 MB
Description Dual Channel Bidirectional 0.15pF TVS Diode
Datasheet download datasheet AOZ8S204BL2 Datasheet

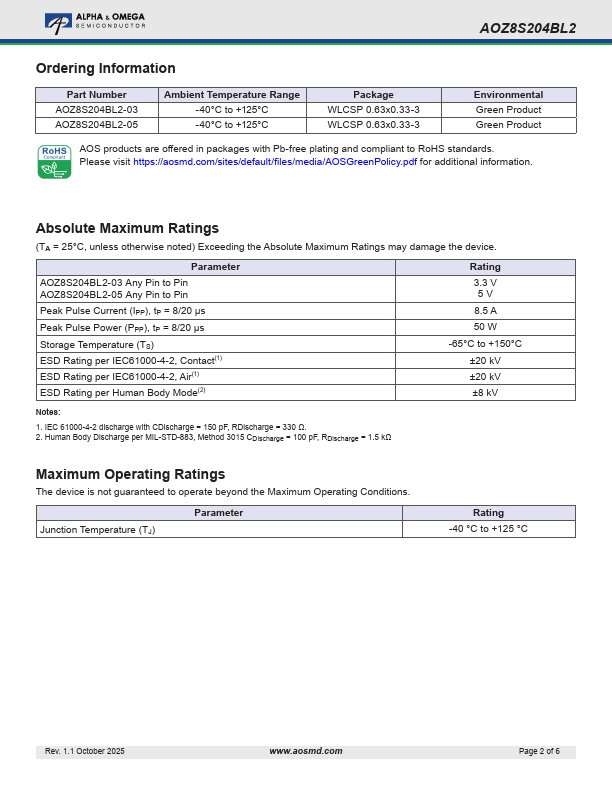

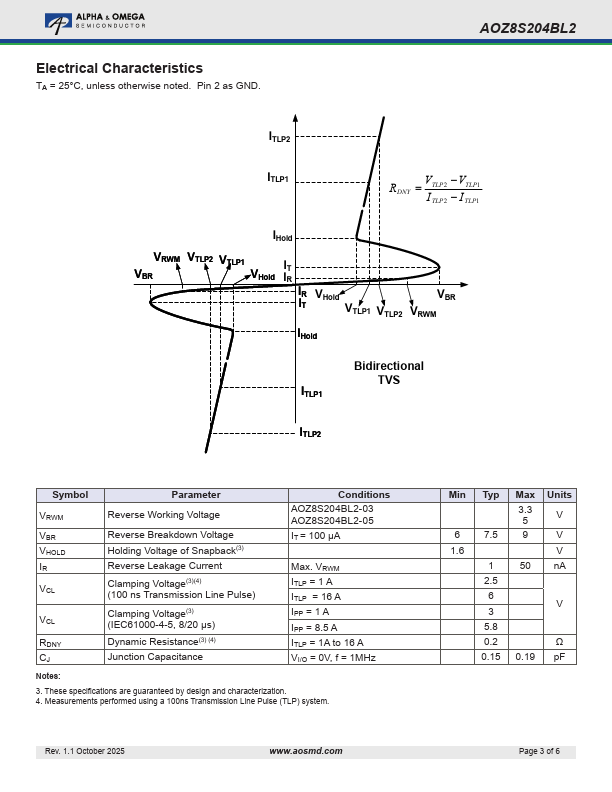

Additional preview pages of the AOZ8S204BL2 datasheet.
