AOI468 datasheet by Alpha & Omega Semiconductors.
| Part number | AOI468 |
|---|---|
| Datasheet | AOI468-AlphaOmegaSemiconductors.pdf |
| File Size | 521.07 KB |
| Manufacturer | Alpha & Omega Semiconductors |
| Description | N-Channel MOSFET |
|
|

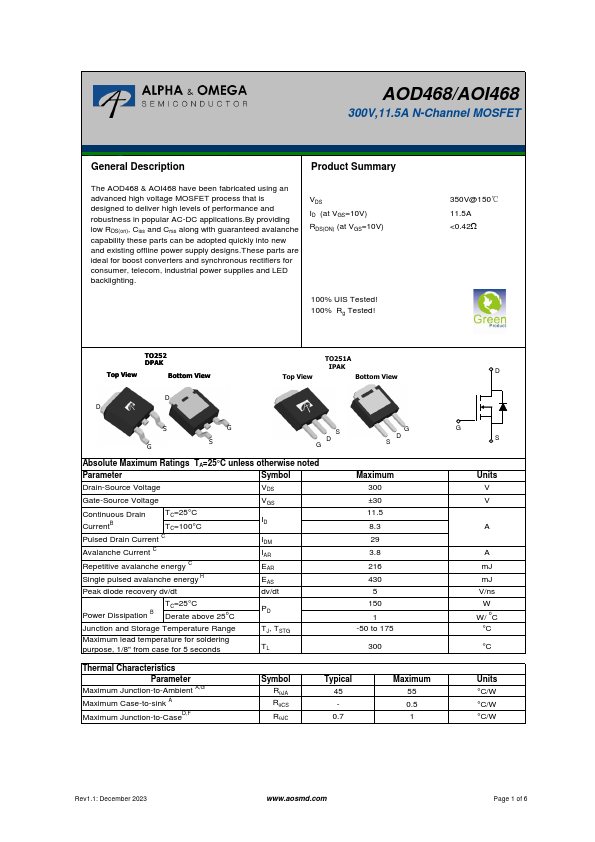

Product Summary The AOD468 & AOI468 have been fabricated using an advanced high voltage MOSFET process that is designed to deliver high levels of performance and robustness in popular AC-DC applications.By providing low RDS(on), Ciss and Crss along with guaranteed avalanche capability these parts can be adopted quickly into new and existing offline power supply designs.These parts are ideal for boost converters and...
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
 |
AOI468 | N-Channel MOSFET | INCHANGE |
