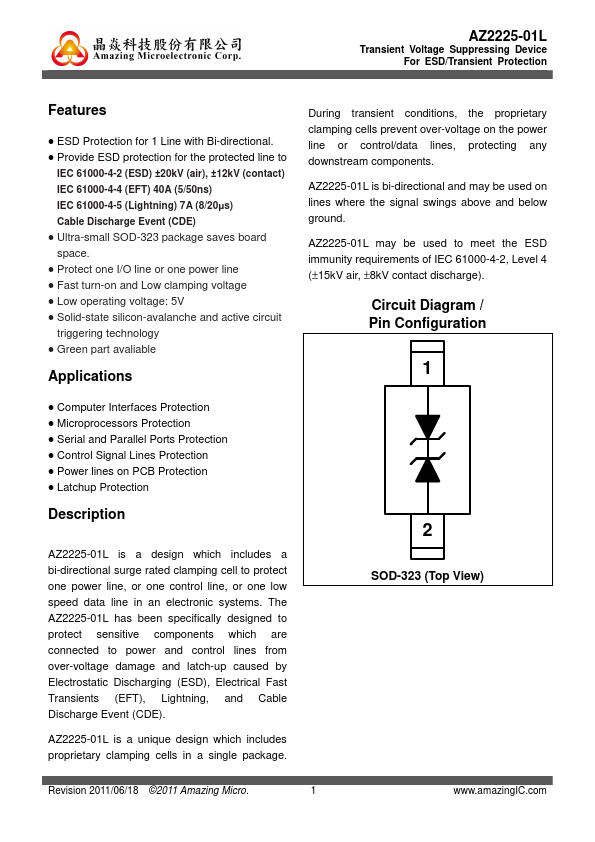

Features ESD Protection for 1 Line with Bi-directional. Provide ESD protection for the protected line to IEC 61000-4-2 (ESD) ±20k V (air), ±12k V (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 7A (8/20µs) Cable Discharge Event (CDE) Ultra-small SOD-323 package saves board space. Protect one I/O line or one power line Fast turn-on and Low clamping voltage Low operating voltage: 5V Solid-state silicon-avalanche and active circuit triggering technology Green part avaliable Applications During transient conditions, the proprietary clamping cells prevent over-voltage on the power line or control/data lines, protecting any downstream ponents. AZ2225-01L is bi-directional and may be used on lines where the signal swings above and below ground. AZ2225-01L may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15k V air, ±8k V contact discharge). Circuit Diagram / Pin Configuration 1 puter Interfaces Protection Microprocessors Protection Serial and Parallel Ports Protection Control Signal Lines Protection Power lines on PCB Protection Latchup Protection Description AZ2225-01L is a design which includes a bi-directional surge rated clamping cell to protect one power line, or one control line, or one low speed data line in an electronic systems. The AZ2225-01L has been specifically designed to protect sensitive ponents which are connected to power and control lines from over-voltage damage and latch-up caused by Electrostatic Discharging (ESD), Electrical Fast Transients (EFT), Lightning, and Cable Discharge Event (CDE). AZ2225-01L is a unique design which includes proprietary clamping cells in a single package. SOD-323 (Top View) Revision 2011/06/18 ©2011 Amazing Micro. .amazing IC. Transient Voltage Suppressing Device For ESD/Transient Protection SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS PARAMETER PARAMETER RATING Peak Pulse Current (tp =8/20us) Operating Supply Voltage (pin-1,-2 to...
