AZ1013-02N Datasheet | Amazing Microelectronic

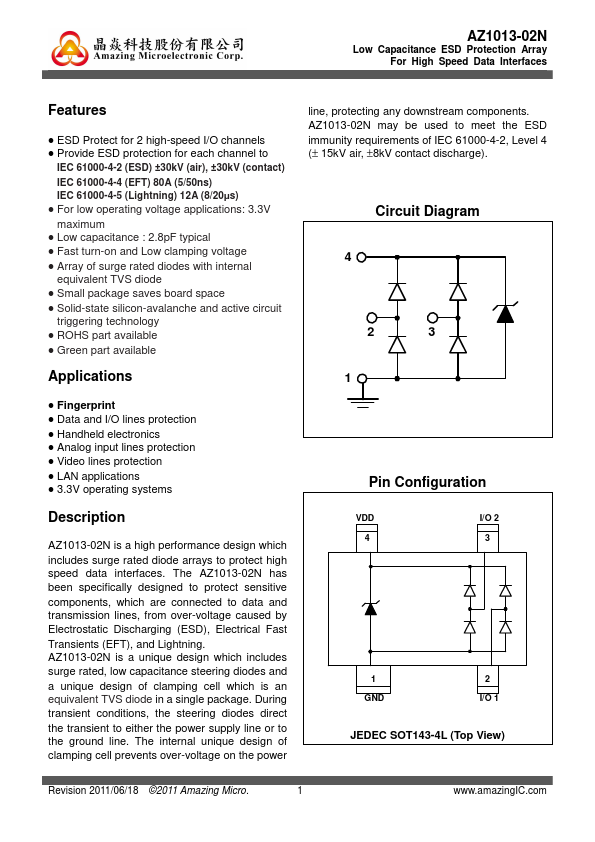

Features ESD Protect for 2 high-speed I/O channels Provide ESD protection for each channel to IEC 61000-4-2 (ESD) ±30k V (air), ±30k V (contact) IEC 61000-4-4 (EFT) 80A (5/50ns) IEC 61000-4-5 (Lightning) 12A (8/20µs) For low operating voltage applications: 3.3V maximum Low capacitance : 2.8p F typical Fast turn-on and Low clamping voltage Array of surge rated diodes with internal equivalent TVS diode Small package saves board space Solid-state silicon-avalanche and active circuit triggering technology ROHS part available Green part available Applications Fingerprint Data and I/O lines protection Handheld electronics Analog input lines protection Video lines protection LAN applications 3.3V operating systems Description AZ1013-02N is a high performance design which includes surge rated diode arrays to protect high speed data interfaces. The AZ1013-02N has been specifically designed to protect sensitive ponents, which are connected to data and transmission lines, from over-voltage caused...
