Amazing Microelectronic AZ1015-04S

AZ1015-04S is a high performance design which includes surge rated diode arrays to protect high speed data interfaces. The AZ1015-04S family has been specifically designed to protect sensitive components, which are connected to data and transmission lines, from over-voltage caused by Electrostatic Discharging (ESD), Electrical Fast Transients (EFT), and Lightning. AZ1015-04S is a unique design which includes surge rated, low capacitance steering diodes and a unique design of clamping cell which is an equivalent TVS diode in a single package.

Part No.	AZ1015-04S
Datasheet	AZ1015-04S Download
Manufacturer	Amazing Microelectronic
Description	Low Capacitance ESD Protection Array For High Speed Data Interfaces
Buy	Stock & Price

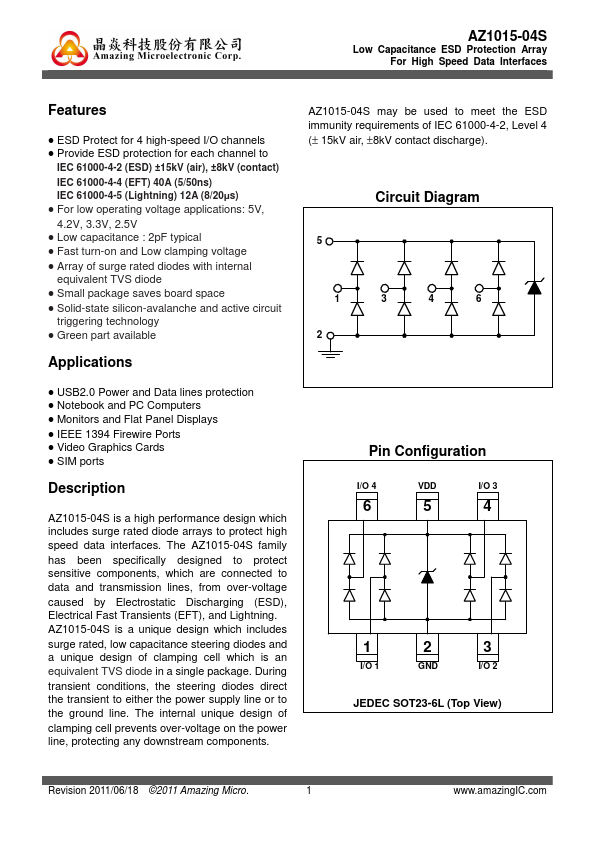

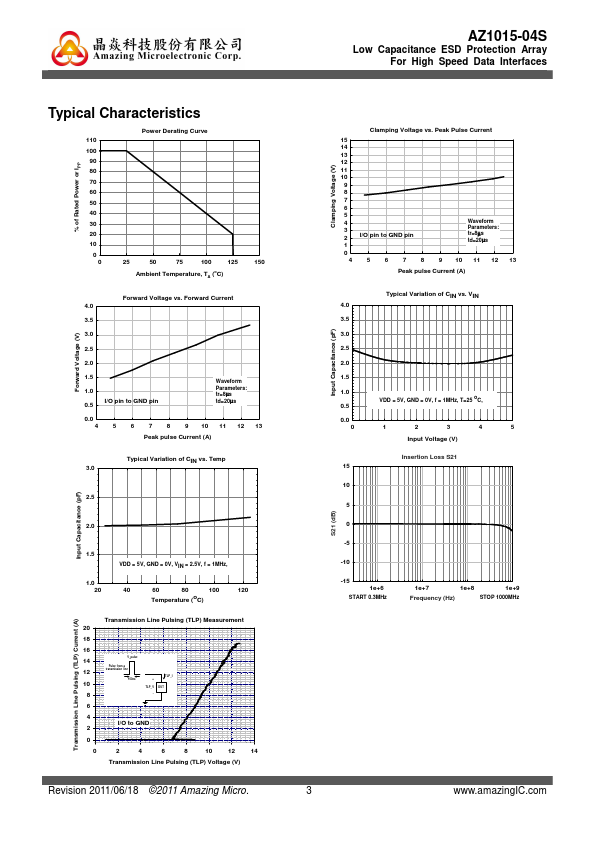

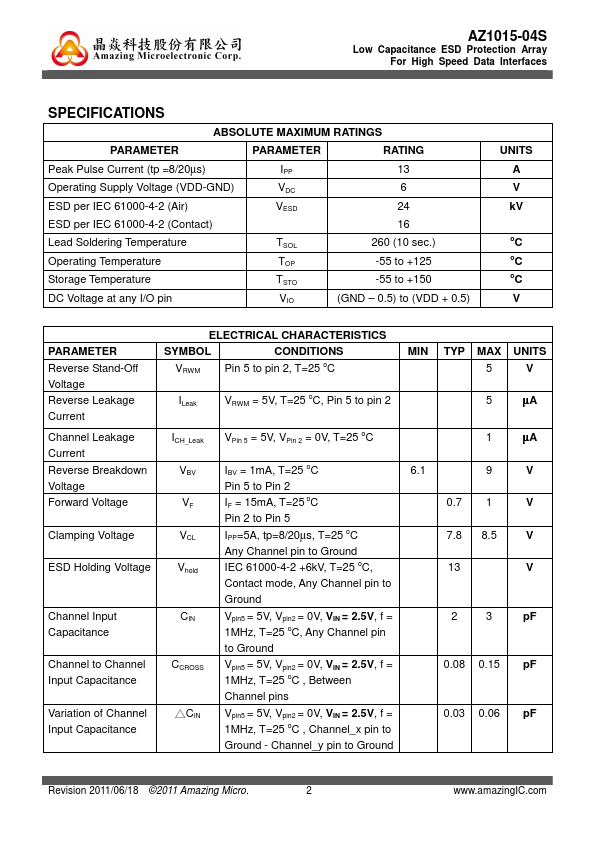

FEATURES

ESD Protect for 4 high-speed I/O channels Provide ESD protection for each channel to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 12A (8/20µs) For low operating voltage applications: 5V, 4.2V, 3.3V, 2.5V Low capacitance : 2pF typical Fast turn-on and Low clamping voltage Array of surge rated diodes with internal equivalent TVS diode Small package saves board space Solid-state silicon-avalanche and active circuit triggering technology Green part available

APPLICATIONS

AZ1015-04S may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (± 15kV air, ±8kV contact discharge). Circuit Diagram 5 1 3 4 6 2 USB2.0 Power and Data lines protection Notebook and PC Computers Monitors and Flat Panel Displays IEEE 1394 Firewire Ports Video Graphics Cards SIM ports

DESCRIPTION

During transient conditions, the steering diodes direct the transient to either the power supply line or to the ground line. The internal unique design of clamping cell prevents over-voltage on the power line, protecting any downstream components.
