Amazing Microelectronic AZ1023-02F

AZ1023-02F is a design which includes ESD rated diode arrays to protect high speed data interfaces. The AZ1023-02F has been specifically designed to protect sensitive components which are connected to data and transmission lines from over-voltage damage caused by Electrostatic Discharging (ESD). AZ1023-02F is a unique design which includes ESD rated, ultra low capacitance steering diodes and a unique design of clamping cell which is an equivalent TVS diode in a single package.

Part No.	AZ1023-02F
Datasheet	AZ1023-02F Download
Manufacturer	Amazing Microelectronic
Description	Ultra Low Capacitance ESD Protection Array
Buy	Stock & Price

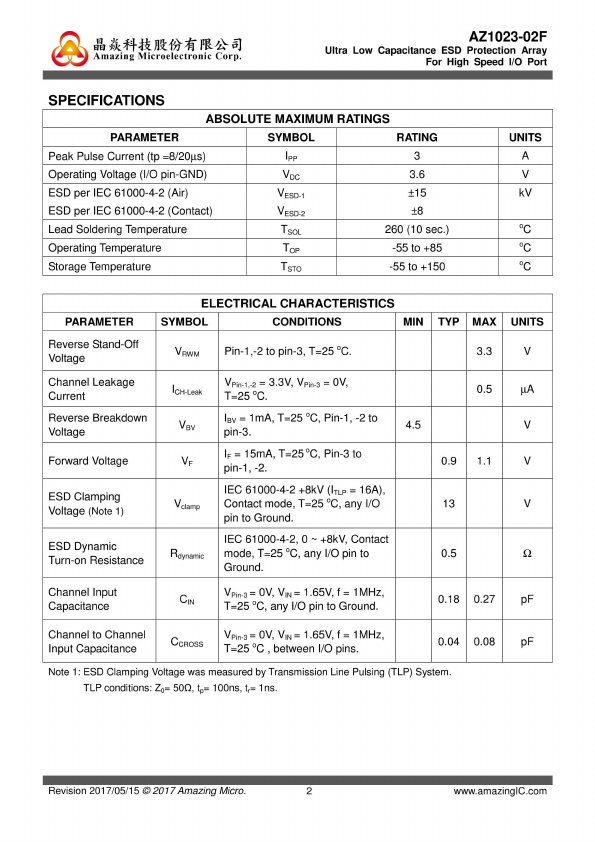

FEATURES

ESD Protect for 2 high-speed I/O channels Provide ESD protection for each channel to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 20A (5/50ns) IEC 61000-4-5 (Lightning) 3A (8/20µs) For operating voltage of 3.3V and below Ultra low capacitance: 0.18pF typical Fast turn-on and low clamping voltage Array of ESD rated diodes with internal equivalent TVS diode Solid-state silicon-avalanche and active circuit triggering technology Simplified layout for high-speed differential signaling channels Green part

APPLICATIONS

HDMI 1.3 & 1.4 and 2.0 version DisplayPort 1.1 & 1.2 and 1.3 version USB 3.1 and 3.0 interfaces USB Type-C interface SATA and eSATA interface Hand Held Portable

APPLICATIONS

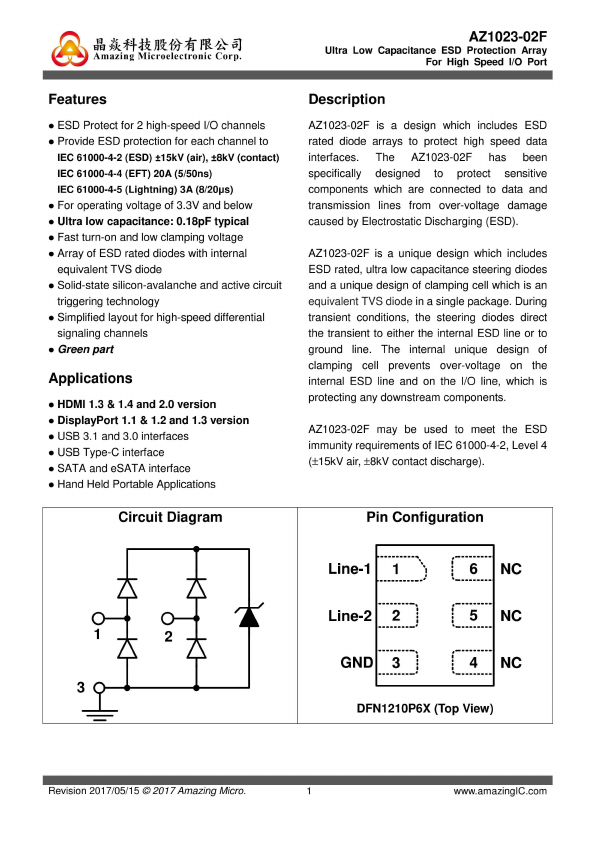

Circuit Diagram

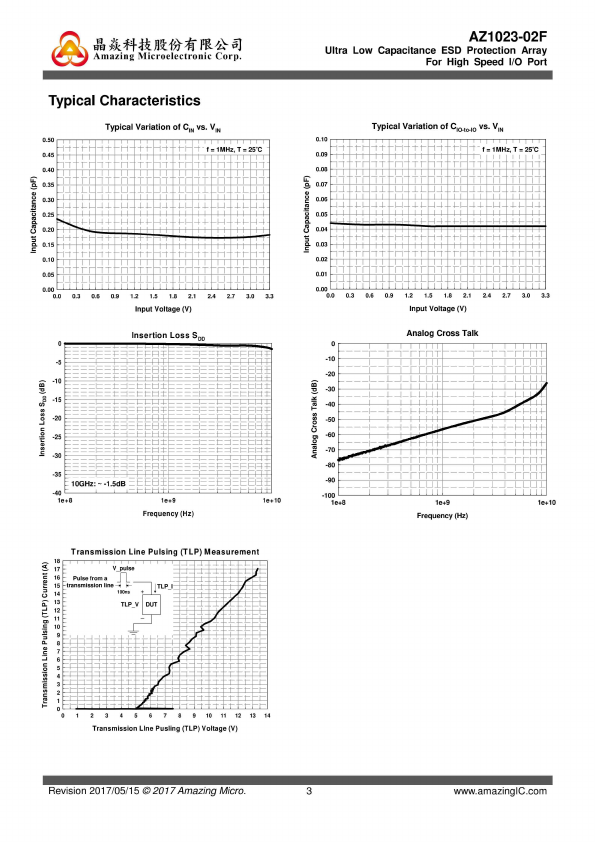

DESCRIPTION

During transient conditions, the steering diodes direct the transient to either the internal ESD line or to ground line. The internal unique design of clamping cell prevents over-voltage on the internal ESD line and on the I/O line, which is protecting any downstream components.
