Amazing Microelectronic AZ1043-04F

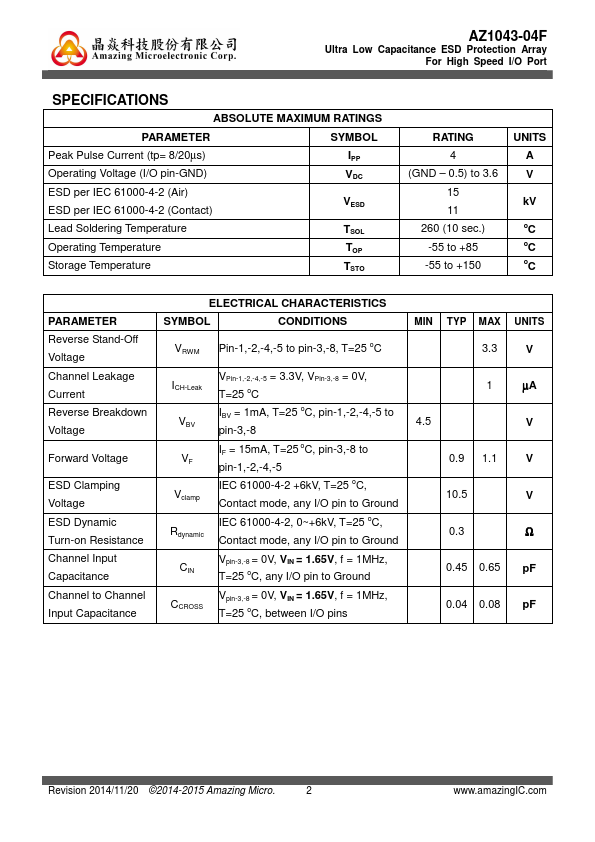

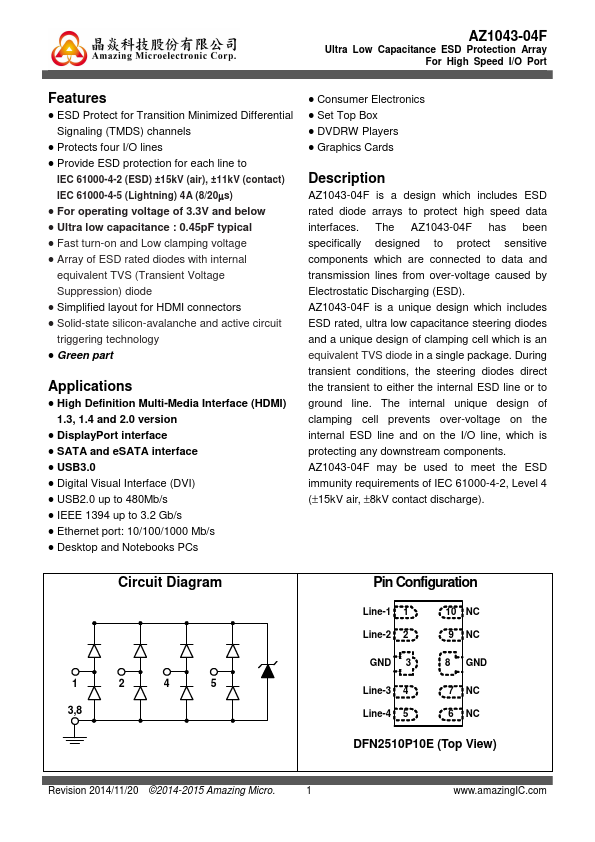

AZ1043-04F is a design which includes ESD rated diode arrays to protect high speed data interfaces. The AZ1043-04F has been specifically designed to protect sensitive components which are connected to data and transmission lines from over-voltage caused by Electrostatic Discharging (ESD). AZ1043-04F is a unique design which includes ESD rated, ultra low capacitance steering diodes and a unique design of clamping cell which is an equivalent TVS diode in a single package.

Part No.	AZ1043-04F
Datasheet	AZ1043-04F Download
Manufacturer	Amazing Microelectronic
Description	Ultra Low Capacitance ESD Protection Array For High Speed I/O Port
Buy	Stock & Price

FEATURES

ESD Protect for Transition Minimized Differential Signaling (TMDS) channels Protects four I/O lines Provide ESD protection for each line to IEC 61000-4-2 (ESD) ±15kV (air), ±11kV (contact) IEC 61000-4-5 (Lightning) 4A (8/20µs) For operating voltage of 3.3V and below Ultra low capacitance : 0.45pF typical Fast turn-on and Low clamping voltage Array of ESD rated diodes with internal equivalent TVS (Transient Voltage Suppression) diode Simplified layout for HDMI connectors Solid-state silicon-avalanche and active circuit triggering technology Green part

APPLICATIONS

High Definition Multi-Media Interface (HDMI) 1.3, 1.4 and 2.0 version DisplayPort interface SATA and eSATA interface USB3.0 Digital Visual Interface (DVI) USB2.0 up to 480Mb/s IEEE 1394 up to 3.2 Gb/s Ethernet port: 10/100/1000 Mb/s Desktop and Notebooks PCs Consumer Electronics Set Top Box DVDRW Players Graphics Cards

DESCRIPTION

During transient conditions, the steering diodes direct the transient to either the internal ESD line or to ground line.
