Amazing Microelectronic AZ1043-08F

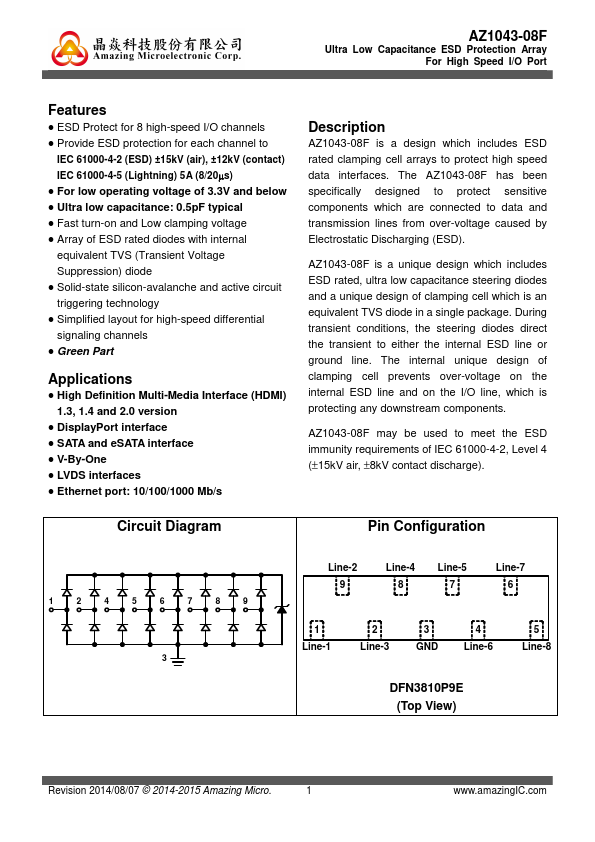

AZ1043-08F is a design which includes ESD rated clamping cell arrays to protect high speed data interfaces. The AZ1043-08F has been specifically designed to protect sensitive components which are connected to data and transmission lines from over-voltage caused by Electrostatic Discharging (ESD). AZ1043-08F is a unique design which includes ESD rated, ultra low capacitance steering diodes and a unique design of clamping cell which is an equivalent TVS diode in a single package.

Part No.	AZ1043-08F
Datasheet	AZ1043-08F Download
Manufacturer	Amazing Microelectronic
Description	Ultra Low Capacitance ESD Protection Array For High Speed I/O Port
Buy	Stock & Price

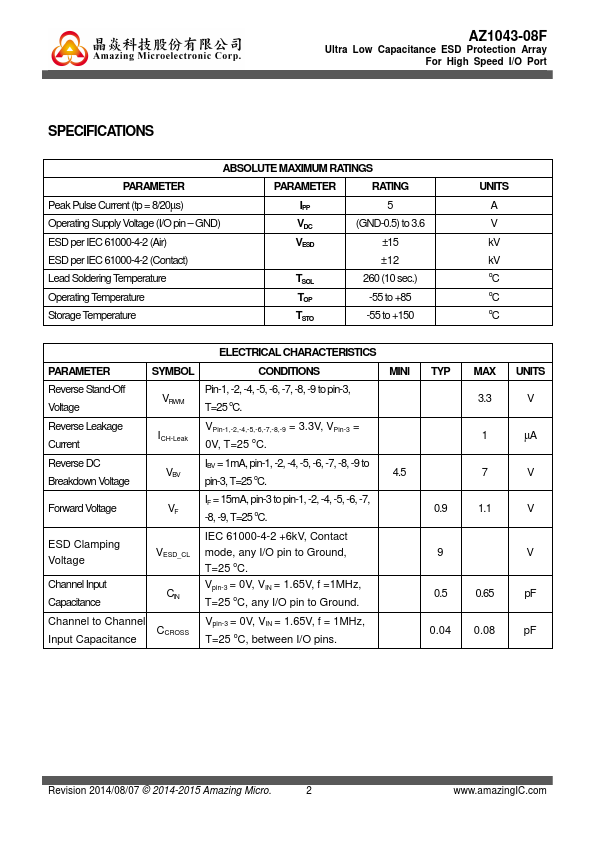

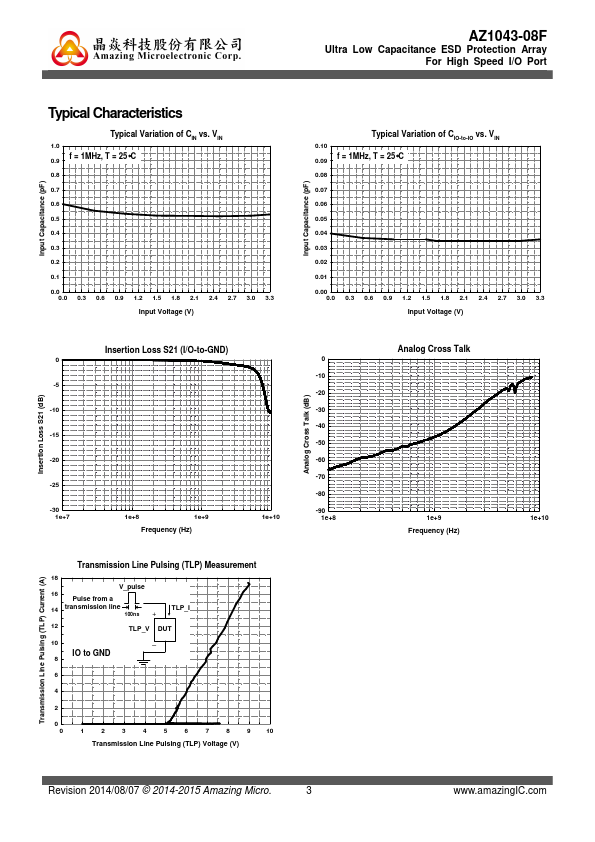

FEATURES

ESD Protect for 8 high-speed I/O channels Provide ESD protection for each channel to IEC 61000-4-2 (ESD) ±15kV (air), ±12kV (contact) IEC 61000-4-5 (Lightning) 5A (8/20µs) For low operating voltage of 3.3V and below Ultra low capacitance: 0.5pF typical Fast turn-on and Low clamping voltage Array of ESD rated diodes with internal equivalent TVS (Transient Voltage Suppression) diode Solid-state silicon-avalanche and active circuit triggering technology Simplified layout for high-speed differential signaling channels Green Part

APPLICATIONS

High Definition Multi-Media Interface (HDMI) 1.3, 1.4 and 2.0 version DisplayPort interface SATA and eSATA interface V-By-One LVDS interfaces Ethernet port: 10/100/1000 Mb/s

DESCRIPTION

During transient conditions, the steering diodes direct the transient to either the internal ESD line or ground line. The internal unique design of clamping cell prevents over-voltage on the internal ESD line and on the I/O line, which is protecting any downstream components.
