Amazing Microelectronic AZ1045-02F

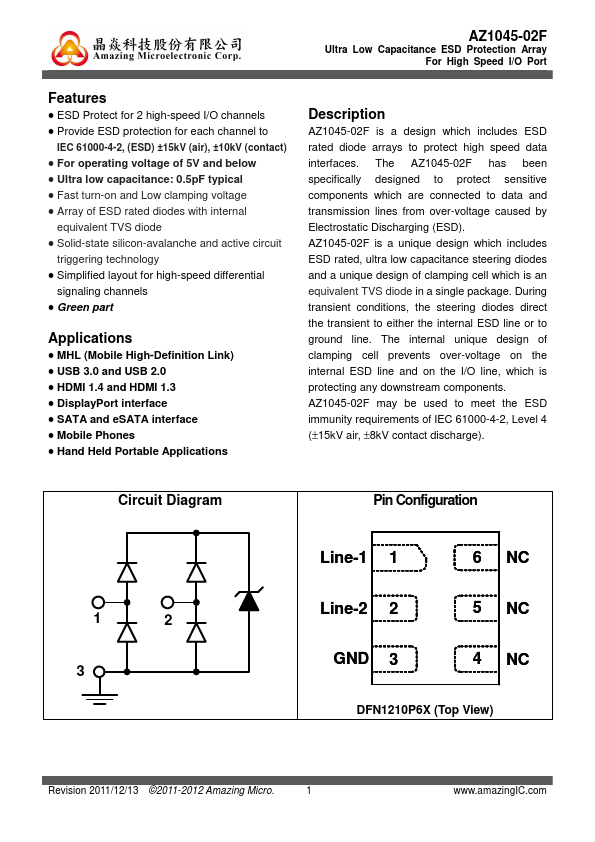

AZ1045-02F is a design which includes ESD rated diode arrays to protect high speed data interfaces. The AZ1045-02F has been specifically designed to protect sensitive components which are connected to data and transmission lines from over-voltage caused by Electrostatic Discharging (ESD). AZ1045-02F is a unique design which includes ESD rated, ultra low capacitance steering diodes and a unique design of clamping cell which is an equivalent TVS diode in a single package.

Part No.	AZ1045-02F
Datasheet	AZ1045-02F Download
Manufacturer	Amazing Microelectronic
Description	Ultra Low Capacitance ESD Protection Array For High Speed I/O Port
Buy	Stock & Price

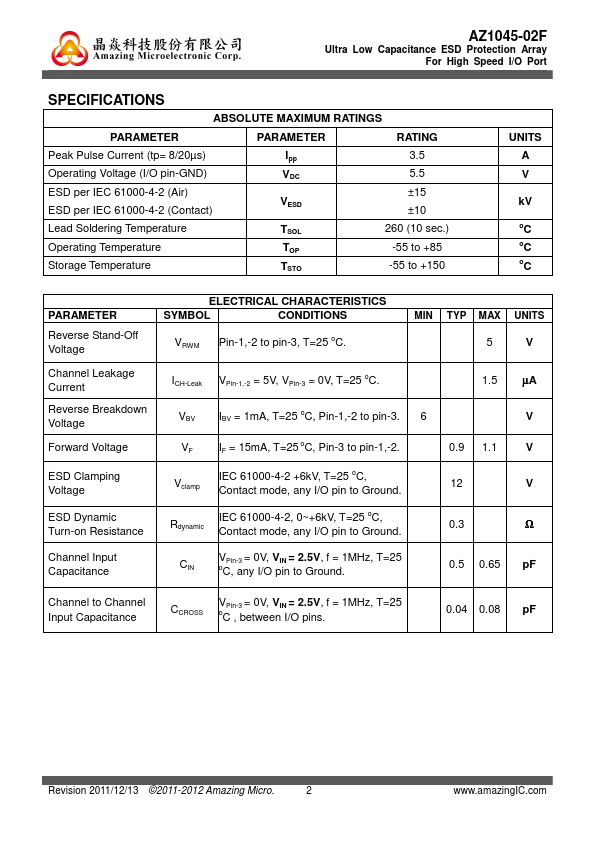

FEATURES

ESD Protect for 2 high-speed I/O channels Provide ESD protection for each channel to IEC 61000-4-2, (ESD) ±15kV (air), ±10kV (contact) For operating voltage of 5V and below Ultra low capacitance: 0.5pF typical Fast turn-on and Low clamping voltage Array of ESD rated diodes with internal equivalent TVS diode Solid-state silicon-avalanche and active circuit triggering technology Simplified layout for high-speed differential signaling channels Green part

APPLICATIONS

MHL (Mobile High-Definition Link) USB 3.0 and USB 2.0 HDMI 1.4 and HDMI 1.3 DisplayPort interface SATA and eSATA interface Mobile Phones Hand Held Portable

APPLICATIONS

DESCRIPTION

During transient conditions, the steering diodes direct the transient to either the internal ESD line or to ground line. The internal unique design of clamping cell prevents over-voltage on the internal ESD line and on the I/O line, which is protecting any downstream components. AZ1045-02F may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15kV air, ±8kV contact discharge).
