Amazing Microelectronic AZ1045-04QU

AZ1045-04QU is a design which includes surge rated diode arrays to protect high speed data interfaces. The AZ1045-04QU has been specifically designed to protect sensitive components which are connected to data and transmission lines from over-voltage caused by Electrostatic Discharging (ESD). AZ1045-04QU is a unique design which includes surge rated, ultra low capacitance steering diodes and a unique design of clamping cell which is an equivalent TVS diode in a single package.

Part No.	AZ1045-04QU
Datasheet	AZ1045-04QU Download
Manufacturer	Amazing Microelectronic
Description	Ultra Low Capacitance ESD Protection Array For High Speed I/O Port
Buy	Stock & Price

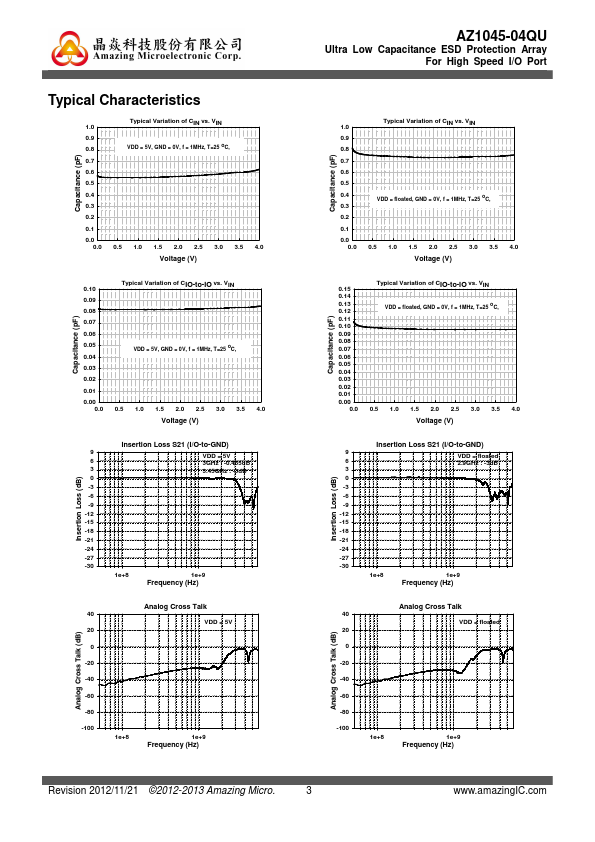

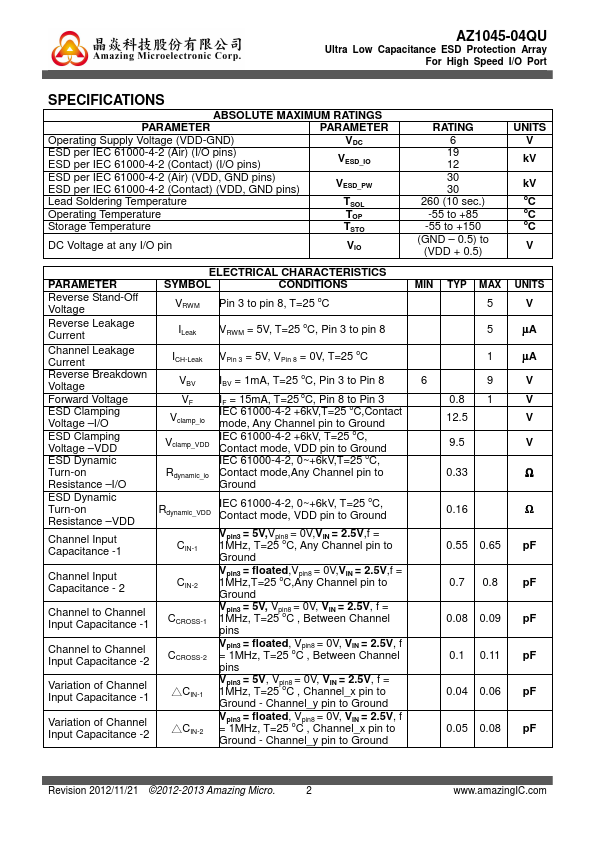

FEATURES

ESD Protect for Transition Minimized Differential Signaling (TMDS) channels Protects four I/O lines and one VDD line Provide ESD protection for each channel to IEC 61000-4-2,(ESD) ±15kV (air), ±8kV (contact) For below 5V operating voltage Ultra low capacitance : 0.55pF typical 0.04pF matching capacitance between the TMDS intra-pair Fast turn-on and Low clamping voltage Array of surge rated diodes with internal equivalent TVS diode Simplified layout for HDMI connectors Solid-state silicon-avalanche and active circuit triggering technology Back-drive protection for power-down mode Lead-free version available Green part available

APPLICATIONS

High Definition Multi-Media Interface (HDMI) 1.3 version DisplayPort interface SATA and eSATA interface Digital Visual Interface (DVI) USB2.0 up to 480Mb/s IEEE 1394 up to 3.2 Gb/s Ethernet port: 10/100/1000 Mb/s Desktop and Notebooks PCs Circuit Diagram Consumer Electronics Set Top Box DVDRW Players Graphics Cards

DESCRIPTION

During transient conditions, the steering diodes direct the transient to either the power supply line or to ground line.
