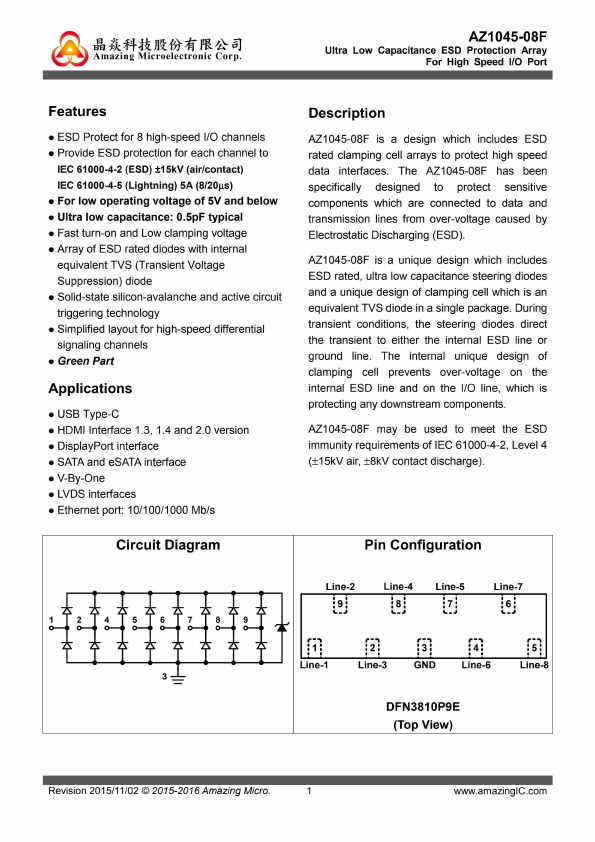

AZ1045-08F
Features
ESD Protect for 8 high-speed I/O channels Provide ESD protection for each channel to
IEC 61000-4-2 (ESD) ±15k V (air/contact) IEC 61000-4-5 (Lightning) 5A (8/20µs)
For low operating voltage of 5V and below Ultra low capacitance: 0.5p F typical Fast turn-on and Low clamping voltage Array of ESD rated diodes with internal equivalent TVS (Transient Voltage Suppression) diode Solid-state silicon-avalanche and active circuit triggering technology Simplified layout for high-speed differential signaling channels Green Part
Applications
USB Type-C HDMI Interface 1.3, 1.4 and 2.0 version Display Port interface SATA and e SATA interface V-By-One LVDS interfaces Ethernet port: 10/100/1000 Mb/s
Description
AZ1045-08F is a design which includes ESD rated clamping cell arrays to protect high speed data interfaces. The AZ1045-08F has been specifically designed to protect sensitive ponents which are connected to data and transmission lines from over-voltage caused by Electrostatic Discharging...
