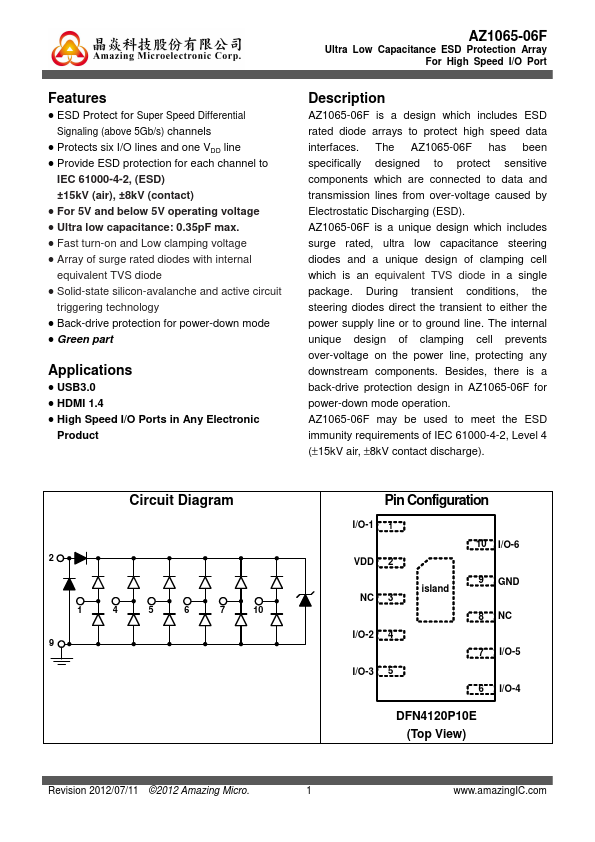

Features ESD Protect for Super Speed Differential Signaling (above 5Gb/s) channels Protects six I/O lines and one VDD line Provide ESD protection for each channel to IEC 61000-4-2, (ESD) ±15k V (air), ±8k V (contact) For 5V and below 5V operating voltage Ultra low capacitance: 0.35p F max. Fast turn-on and Low clamping voltage Array of surge rated diodes with internal equivalent TVS diode Solid-state silicon-avalanche and active circuit triggering technology Back-drive protection for power-down mode Green part Applications USB3.0 HDMI 1.4 High Speed I/O Ports in Any Electronic Product Description AZ1065-06F is a design which includes ESD rated diode arrays to protect high speed data interfaces. The AZ1065-06F has been specifically designed to protect sensitive ponents which are connected to data and transmission lines from over-voltage caused by Electrostatic Discharging (ESD). AZ1065-06F is a unique design which includes surge rated, ultra low capacitance steering diodes and a unique...
