AZ1083-08F Datasheet PDF | Amazing Microelectronic

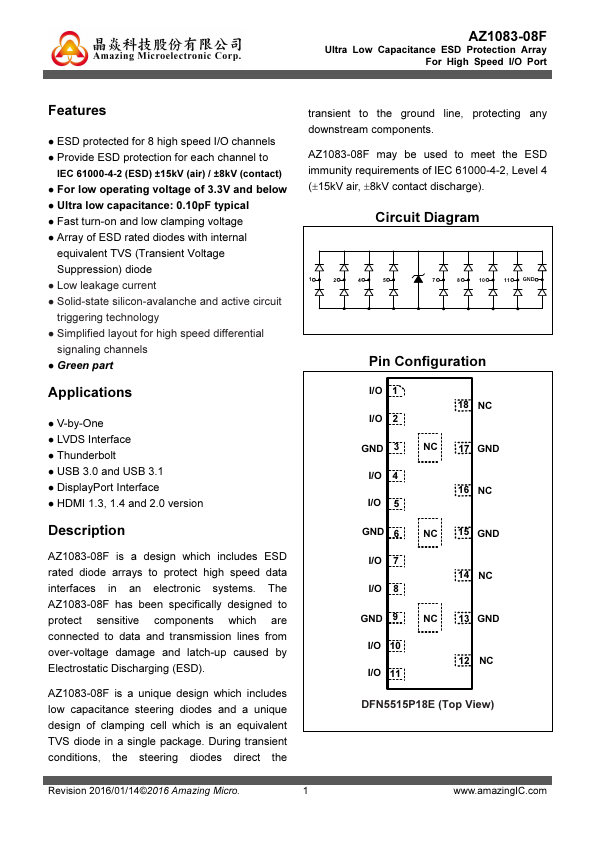

Amazing Microelectronic AZ1083-08F

AZ1083-08F is a design which includes ESD rated diode arrays to protect high speed data interfaces in an electronic systems. The AZ1083-08F has been specifically designed to protect sensitive components which are connected to data and transmission lines from over-voltage damage and latch-up caused by Electrostatic Discharging (ESD). AZ1083-08F is a unique design which includes low capacitance steering diodes and a unique design of clamping cell which is an equivalent TVS diode in a single package.

Part No.	AZ1083-08F
Datasheet	AZ1083-08F Download
Manufacturer	Amazing Microelectronic
Description	Ultra Low Capacitance ESD Protection Array For High Speed I/O Port
Buy	Stock & Price

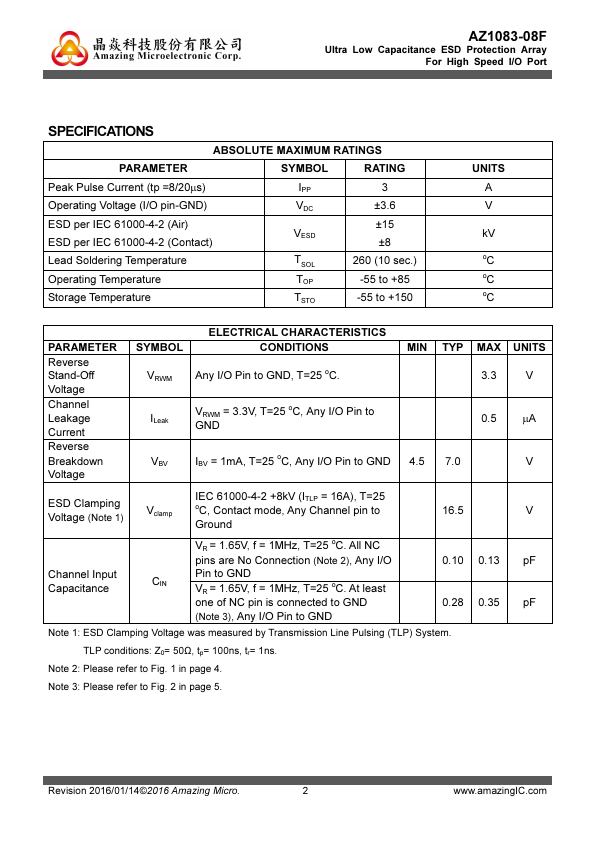

FEATURES

ESD protected for 8 high speed I/O channels Provide ESD protection for each channel to IEC 61000-4-2 (ESD) ±15kV (air) / ±8kV (contact) For low operating voltage of 3.3V and below Ultra low capacitance: 0.10pF typical Fast turn-on and low clamping voltage Array of ESD rated diodes with internal equivalent TVS (Transient Voltage Suppression) diode Low leakage current Solid-state silicon-avalanche and active circuit triggering technology Simplified layout for high speed differential signaling channels Green part

APPLICATIONS

V-by-One LVDS Interface Thunderbolt USB 3.0 and USB 3.1 DisplayPort Interface HDMI 1.3, 1.4 and 2.0 version

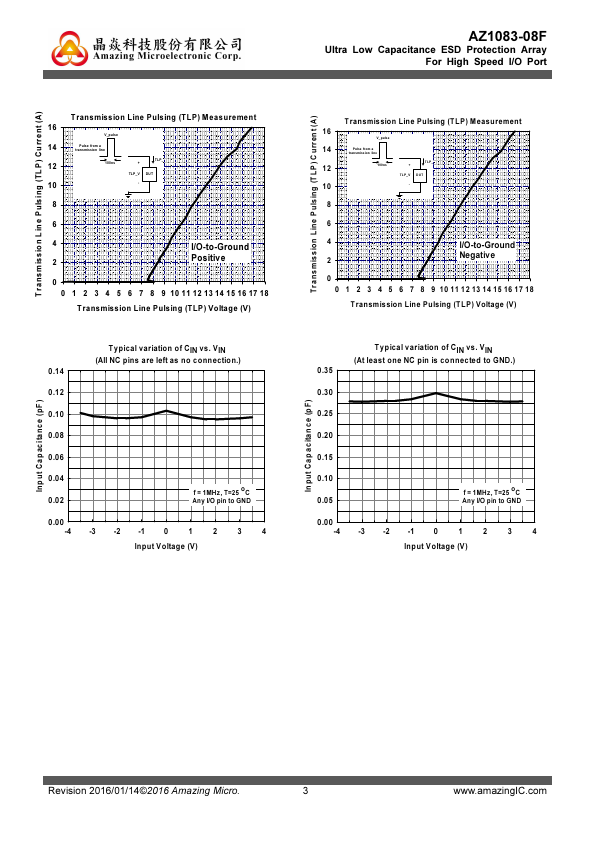

DESCRIPTION

During transient conditions, the steering diodes direct the transient to the ground line, protecting any downstream components. AZ1083-08F may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15kV air, ±8kV contact discharge). Circuit Diagram 1 2 4 5 7 8 10 11 GND Pin Configuration I/O 1 I/O 2 18 NC GND 3 I/O 4 I/O 5 GND 6 I/O 7 I/O 8 NC 17 GND 16 NC NC 15 GND 14 NC GND 9 I/O 10 I/O 11 NC 13 GND 12 NC DFN5515P18E (Top View) Revision 2016/01/14©2016 Amazing Micro.
