Amazing Microelectronic AZ1123-04F

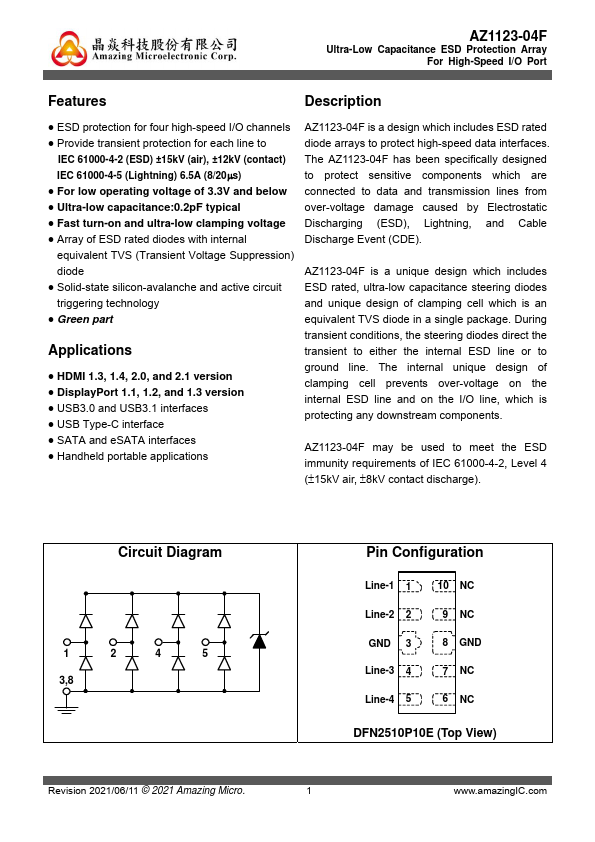

AZ1123-04F is a design which includes ESD rated diode arrays to protect high-speed data interfaces. The AZ1123-04F has been specifically designed to protect sensitive components which are connected to data and transmission lines from over-voltage damage caused by Electrostatic Discharging (ESD), Lightning, and Cable Discharge Event (CDE). AZ1123-04F is a unique design which includes ESD rated, ultra-low capacitance steering diodes and unique design of clamping cell which is an equivalent TVS diode in a single package.| Part No. | AZ1123-04F |
|---|---|
| Datasheet | AZ1123-04F Download |
| Manufacturer |  Amazing Microelectronic |
| Description | Ultra-Low Capacitance ESD Protection Array For High-Speed I/O Port |
| Buy | Stock & Price |

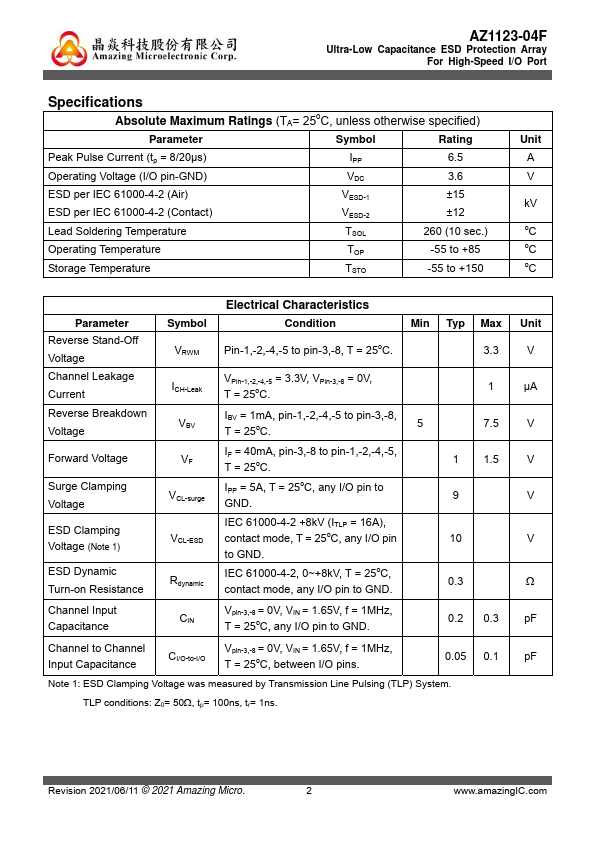

FEATURES
DESCRIPTION
● ESD protection for four high-speed I/O channels● Provide transient protection for each line to IEC 61000-4-2 (ESD) ±15kV (air), ±12kV (contact) IEC 61000-4-5 (Lightning) 6.5A (8/20s)
● For low operating voltage of 3.3V and below
● Ultra-low capacitance:0.2pF typical

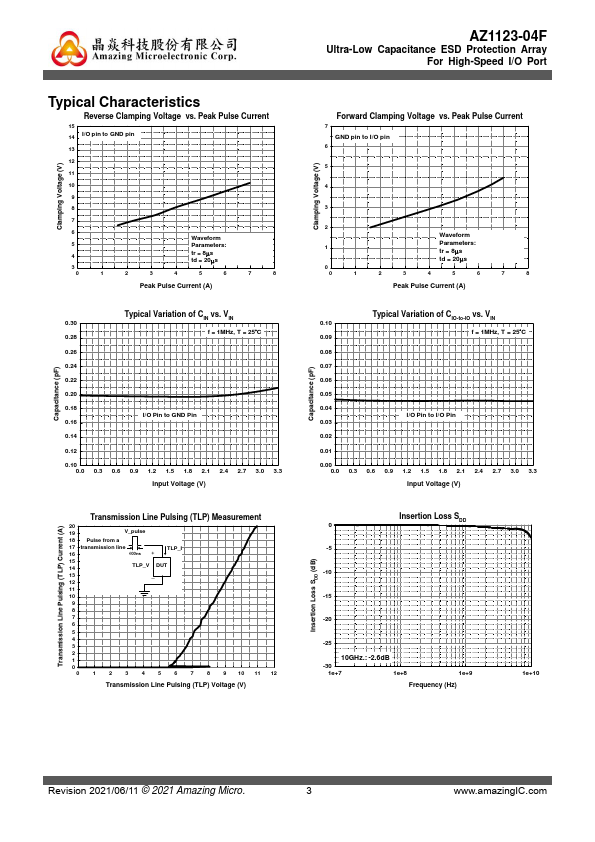

● Fast turn-on and ultra-low clamping voltage
● Array of ESD rated diodes with internal equivalent TVS (Transient Voltage Suppression) diode
● Solid-state silicon-avalanche and active circuit triggering technology
● Green part
APPLICATIONS
● HDMI 1.3, 1.4, 2.0, and 2.1 version● DisplayPort 1.1, 1.2, and 1.3 version
● USB3.0 and USB3.1 interfaces
● USB Type-C interface
● SATA and eSATA interfaces
● Handheld portable applications During transient conditions, the steering diodes direct the transient to either the internal ESD line or to ground line. The internal unique design of clamping cell prevents over-voltage on the internal ESD line and on the I/O line, which is protecting any downstream components.
