AZ1135-04S Datasheet PDF | Amazing Microelectronic

Amazing Microelectronic AZ1135-04S

AZ1135-04S is a high performance design which includes surge rated diode arrays to protect high speed data interfaces. The AZ1135-04S has been specifically designed to protect sensitive components, which are connected to data and transmission lines, from over-voltage damage caused by Electrostatic Discharging (ESD), Electrical Fast Transients (EFT), and Lightning. AZ1135-04S is a unique design which includes surge rated, low capacitance steering diodes and a unique design of clamping cell which is an equivalent TVS diode in a single package.

Part No.	AZ1135-04S
Datasheet	AZ1135-04S Download
Manufacturer	Amazing Microelectronic
Description	Low Capacitance ESD Protection Array
Buy	Stock & Price

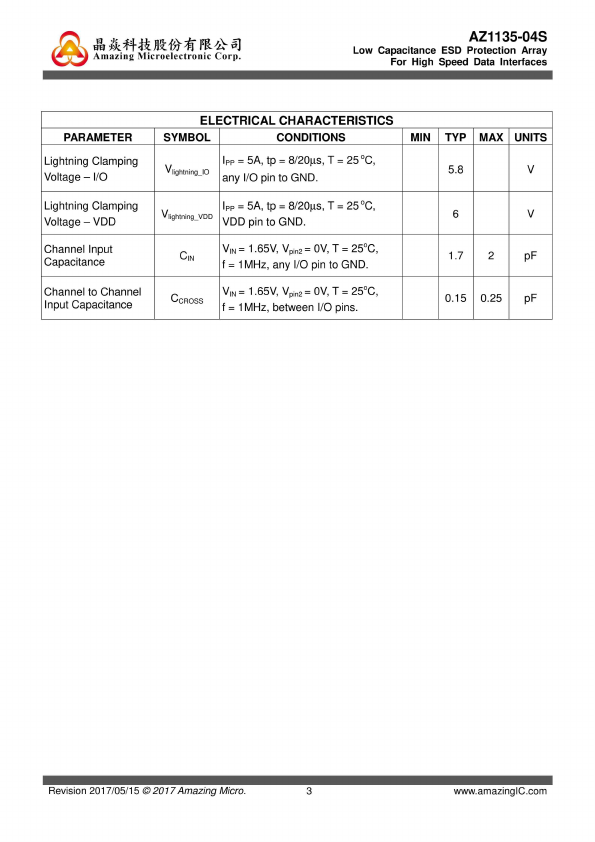

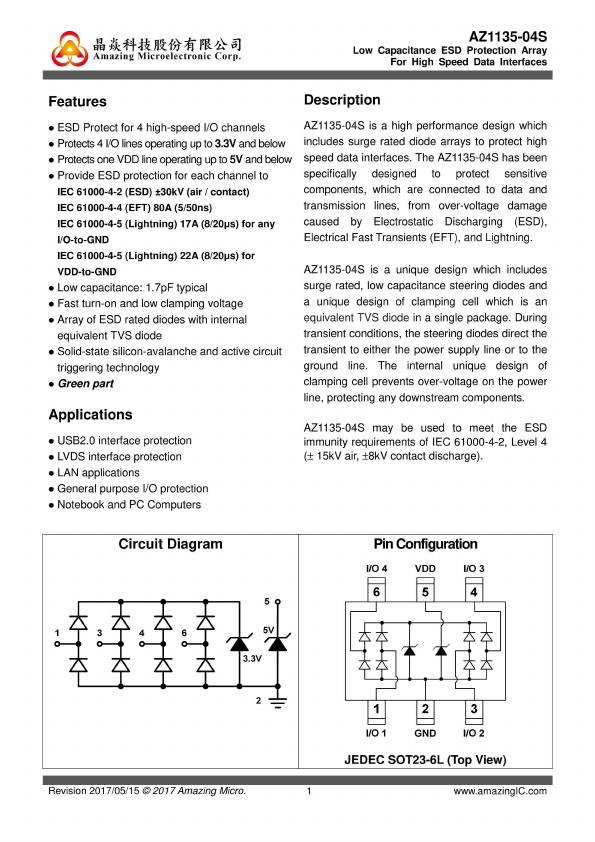

FEATURES

DESCRIPTION

ESD Protect for 4 high-speed I/O channels Protects 4 I/O lines operating up to 3.3V and below Protects one VDD line operating up to 5V and below Provide ESD protection for each channel to IEC 61000-4-2 (ESD) ±30kV (air / contact) IEC 61000-4-4 (EFT) 80A (5/50ns) IEC 61000-4-5 (Lightning) 17A (8/20µs) for any I/O-to-GND IEC 61000-4-5 (Lightning) 22A (8/20µs) for VDD-to-GND Low capacitance: 1.7pF typical Fast turn-on and low clamping voltage Array of ESD rated diodes with internal equivalent TVS diode Solid-state silicon-avalanche and active circuit triggering technology Green part

APPLICATIONS

USB2.0 interface protection LVDS interface protection LAN applications General purpose I/O protection Notebook and PC Computers During transient conditions, the steering diodes direct the transient to either the power supply line or to the ground line. The internal unique design of clamping cell prevents over-voltage on the power line, protecting any downstream components. AZ1135-04S may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (± 15kV air, ±8kV contact discharge).
