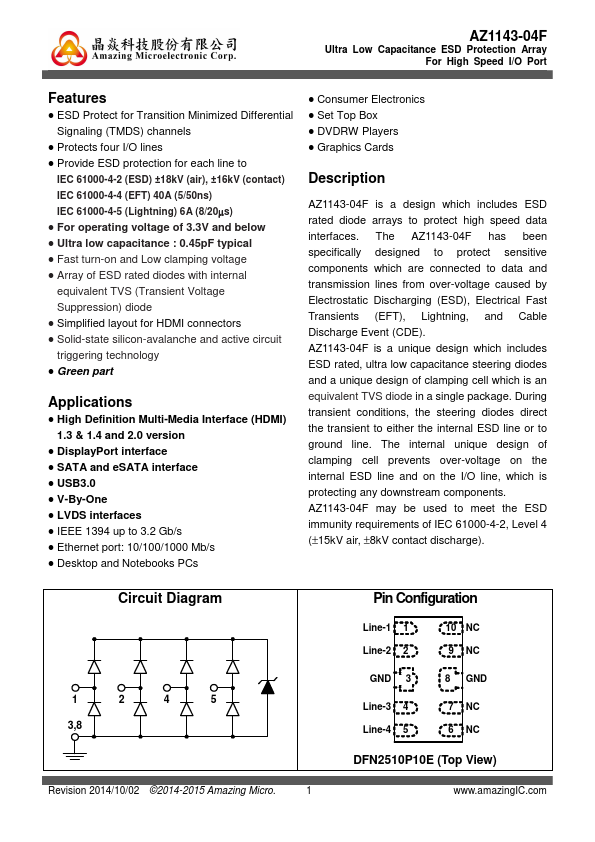

AZ1143-04F
Features
ESD Protect for Transition Minimized Differential Signaling (TMDS) channels Protects four I/O lines Provide ESD protection for each line to
IEC 61000-4-2 (ESD) ±18k V (air), ±16k V (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 6A (8/20µs)
For operating voltage of 3.3V and below Ultra low capacitance : 0.45p F typical Fast turn-on and Low clamping voltage Array of ESD rated diodes with internal equivalent TVS (Transient Voltage Suppression) diode Simplified layout for HDMI connectors Solid-state silicon-avalanche and active circuit triggering technology Green part
Applications
High Definition Multi-Media Interface (HDMI) 1.3 & 1.4 and 2.0 version Display Port interface SATA and e SATA interface USB3.0 V-By-One LVDS interfaces IEEE 1394 up to 3.2 Gb/s Ethernet port: 10/100/1000 Mb/s Desktop and Notebooks PCs
Consumer Electronics Set Top Box DVDRW Players Graphics Cards
Description

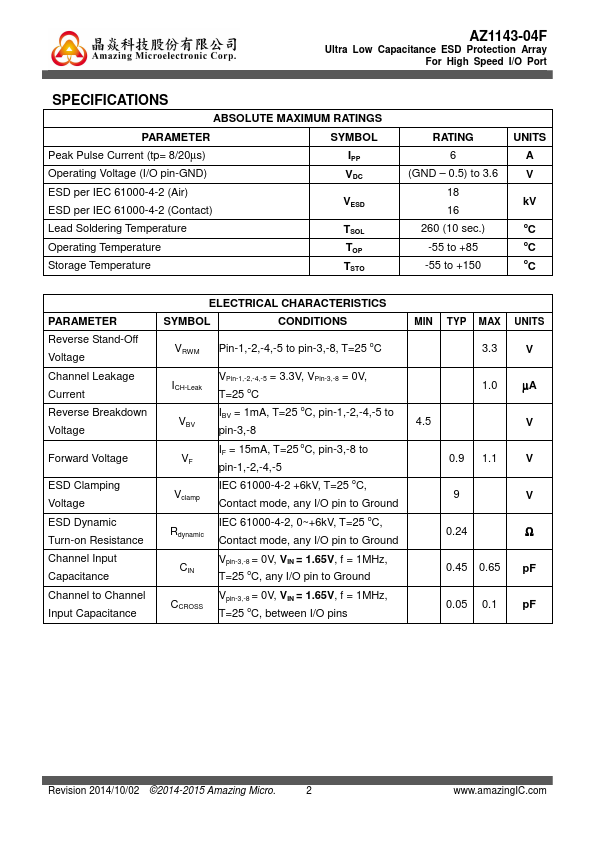

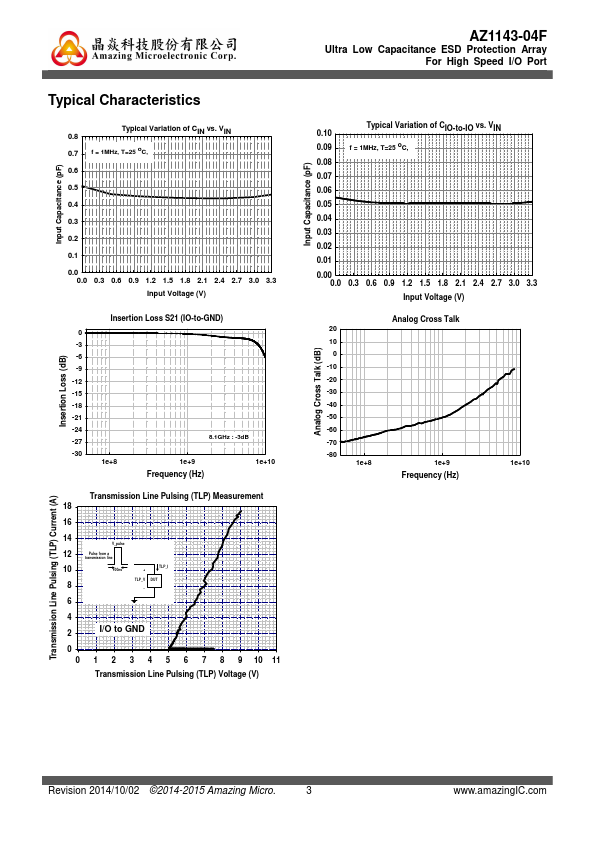

AZ1143-04F is a design which includes ESD rated diode arrays to protect high...
