AZ1145-04F Datasheet | Amazing Microelectronic

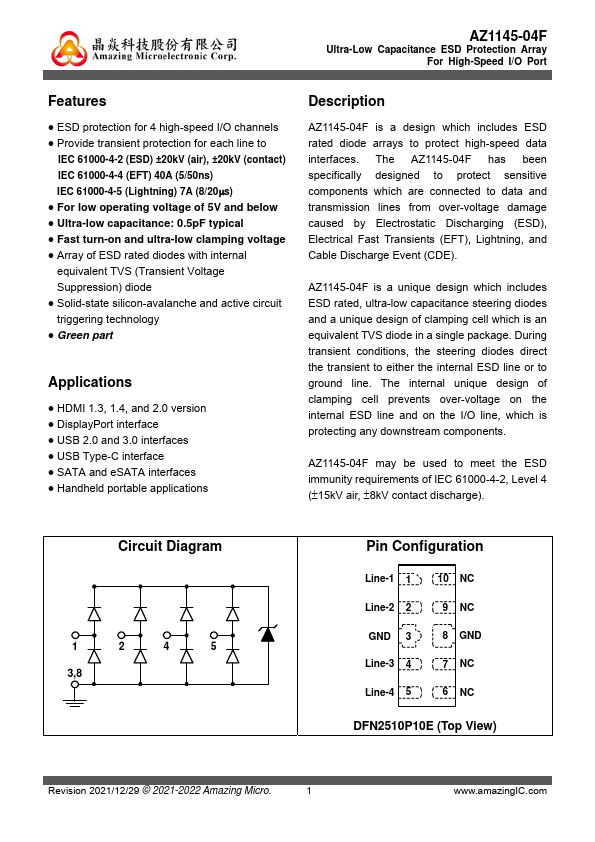

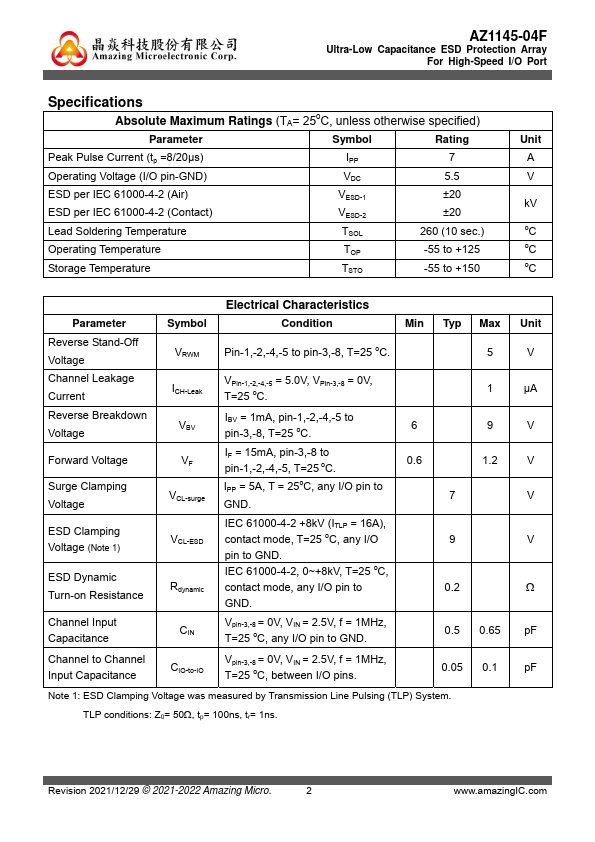

Features - ESD protection for 4 high-speed I/O channels - Provide transient protection for each line to IEC 61000-4-2 (ESD) ±20k V (air), ±20k V (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 7A (8/20s) - For low operating voltage of 5V and below - Ultra-low capacitance: 0.5p F typical - Fast turn-on and ultra-low clamping voltage - Array of ESD rated diodes with internal equivalent TVS (Transient Voltage Suppression) diode - Solid-state silicon-avalanche and active circuit triggering technology - Green part Applications - HDMI 1.3, 1.4, and 2.0 version - Display Port interface - USB 2.0 and 3.0 interfaces - USB Type-C interface - SATA and e SATA interfaces - Handheld portable applications Description AZ1145-04F is a design which includes ESD rated diode arrays to protect high-speed data interfaces. The AZ1145-04F has been specifically designed to protect sensitive ponents which are connected to data and transmission lines from over-voltage damage caused by...
