Amazing Microelectronic AZ1243-04F

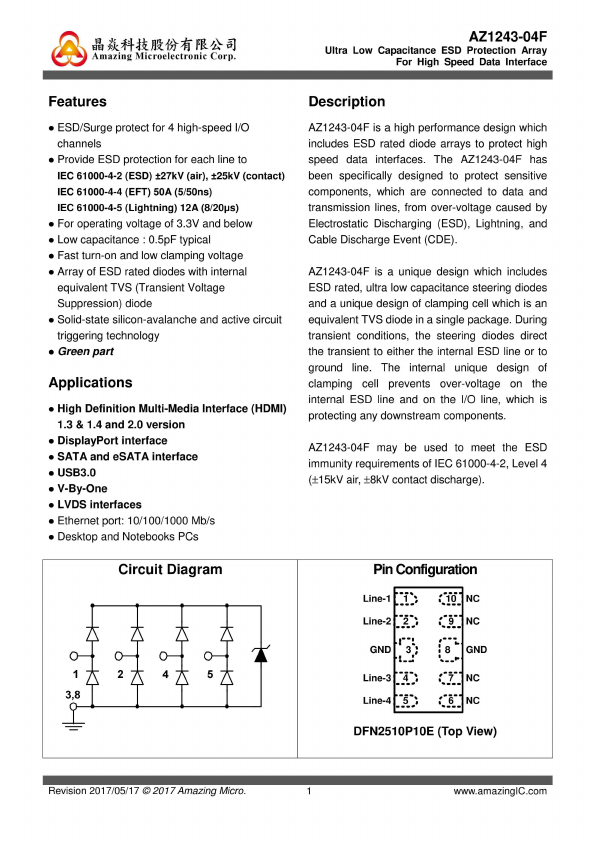

AZ1243-04F is a high performance design which includes ESD rated diode arrays to protect high speed data interfaces. The AZ1243-04F has been specifically designed to protect sensitive components, which are connected to data and transmission lines, from over-voltage caused by Electrostatic Discharging (ESD), Lightning, and Cable Discharge Event (CDE). AZ1243-04F is a unique design which includes ESD rated, ultra low capacitance steering diodes and a unique design of clamping cell which is an equivalent TVS diode in a single package.

Part No.	AZ1243-04F
Datasheet	AZ1243-04F Download
Manufacturer	Amazing Microelectronic
Description	Ultra Low Capacitance ESD Protection Array
Buy	Stock & Price

FEATURES

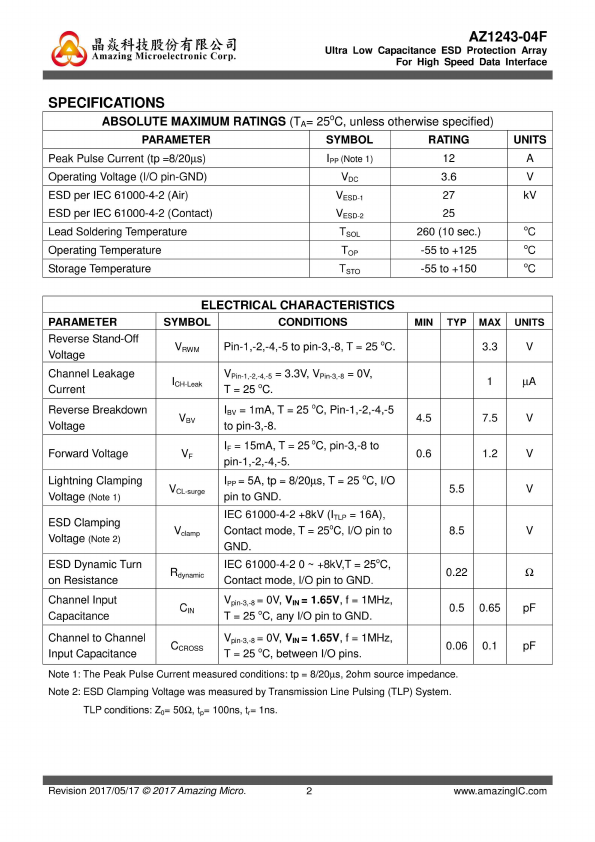

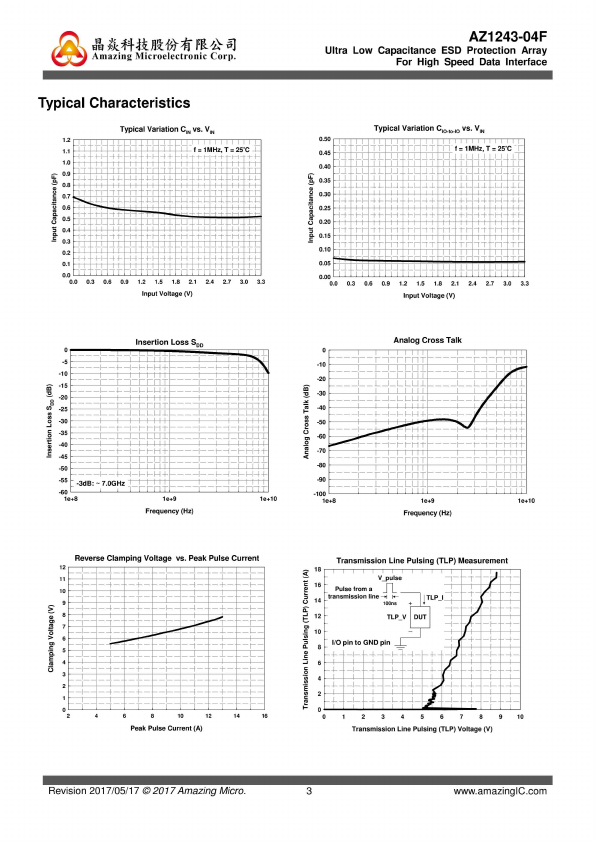

ESD/Surge protect for 4 high-speed I/O channels Provide ESD protection for each line to IEC 61000-4-2 (ESD) ±27kV (air), ±25kV (contact) IEC 61000-4-4 (EFT) 50A (5/50ns) IEC 61000-4-5 (Lightning) 12A (8/20µs) For operating voltage of 3.3V and below Low capacitance : 0.5pF typical Fast turn-on and low clamping voltage Array of ESD rated diodes with internal equivalent TVS (Transient Voltage Suppression) diode Solid-state silicon-avalanche and active circuit triggering technology Green part

APPLICATIONS

High Definition Multi-Media Interface (HDMI) 1.3 & 1.4 and 2.0 version DisplayPort interface SATA and eSATA interface USB3.0 V-By-One LVDS interfaces Ethernet port: 10/100/1000 Mb/s Desktop and Notebooks PCs

DESCRIPTION

During transient conditions, the steering diodes direct the transient to either the internal ESD line or to ground line. The internal unique design of clamping cell prevents over-voltage on the internal ESD line and on the I/O line, which is protecting any downstream components.
